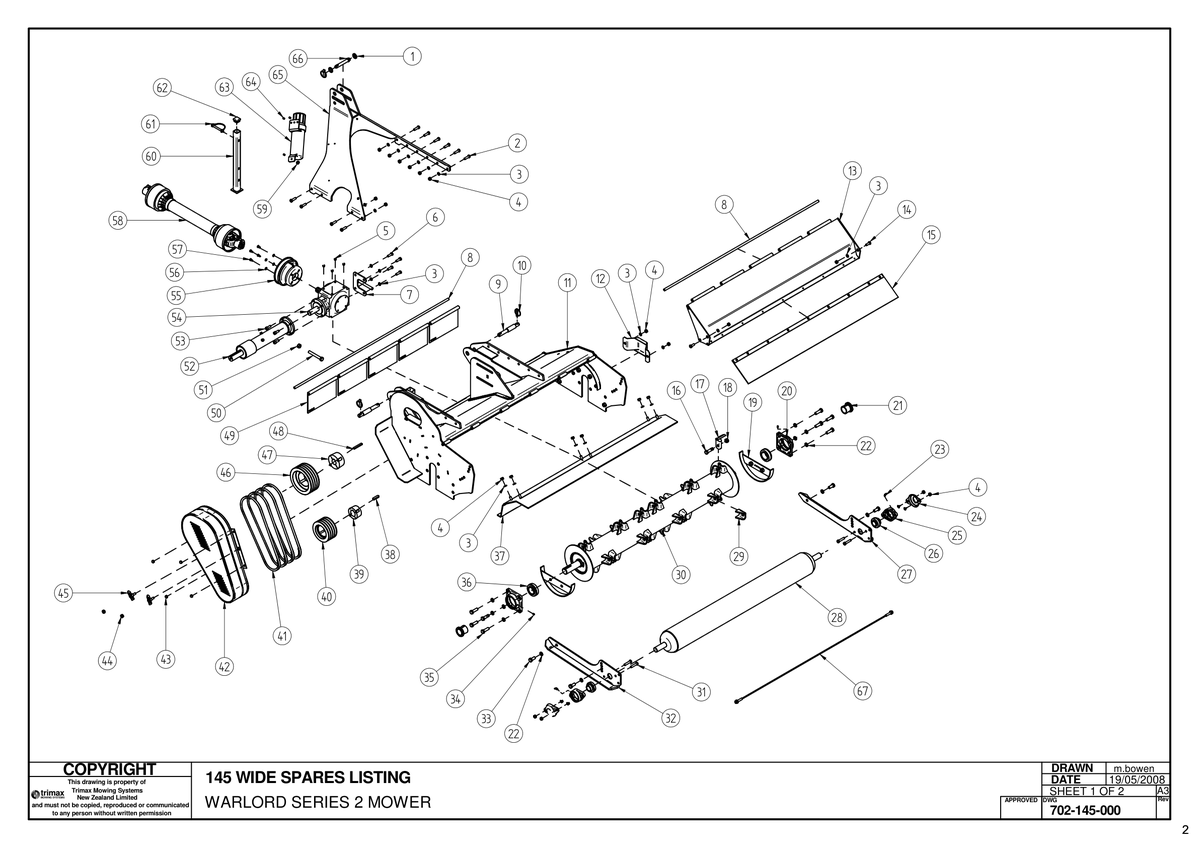

702 Warlord S2 145 - 145 Wide Spares Listing

Warlord S2 145

Grouped product items
No.	Product Name	Price
1	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
2	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
5	Blanking Plug - M12 209-900-012 More Info >	A$0.30
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
7	Adjuster 417-000-428 More Info >	A$85.60
8	Hinge Pin 145 417-000-184 More Info >	Price on Request
9	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
10	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
12	Bearing Guard 410-460-302 More Info >	A$79.51
13	Rear Flap Assembly 417-480-251 More Info >	Price on Request
14	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
17	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	A$29.96
18	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
19	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	A$43.07
20	Bearing Housing 401-021-220 More Info >	A$64.29
21	Sleeve - Taper 401-021-230 More Info >	A$37.00
22	Washer - Spring 308-160-043 More Info >	A$0.97
23	Grease Nipple - Trimax Specification 208-442-620 More Info >	A$7.08
24	Cap 410-464-072 More Info >	A$24.90
25	Bearing Housing 401-020-800 More Info >	A$32.31
26	Bearing 401-020-700 More Info >	A$43.12
27	Trailing Arm Weldment - RH 412-000-128 More Info >	A$171.05
29	Flail Lug 411-480-610 More Info >	A$17.66
30	Rotor 415-480-550 More Info >	Price on Request
31	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	A$1.12
32	Trailing Arm Weldment - LH 412-000-129 More Info >	A$171.05
33	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	A$3.22
34	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
35	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	A$8.03
36	Bearing 401-021-210 More Info >	A$69.53
37	Liner 417-000-492 More Info >	Price on Request
38	Key - Trimax Specification 205-425-920 More Info >	A$18.29
39	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	A$32.74
40	Pulley - Taper Lock 403-361-180 More Info >	A$139.68
41	Vee Belt - Trimax Specification 404-040-512 More Info >	A$70.00
42	Belt Guard Weldment - RH Offset 410-480-440 More Info >	A$707.42
43	Button - Anti Rattle 209-446-360 More Info >	A$5.24
44	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
45	Drop Latch - Anti-loose 423-080-400 More Info >	A$29.92
46	Pulley - Taper Lock 403-361-270 More Info >	A$283.54
47	Bush - Taper Lock - Trimax Specification 402-060-710 More Info >	A$81.18
48	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	A$13.16
49	Front Flap Weldment 417-480-320 More Info >	A$29.72
50	Set Screw 313-616-123 More Info >	Price on Request
51	Nut - Plain 307-216-013 More Info >	A$0.97
53	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	A$2.08
54	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
55	Cone 410-440-400 More Info >	A$29.59
56	Washer - Flat 308-080-013 More Info >	A$0.06
57	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
58	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	A$389.63
59	Washer - Fender 108-031-413 More Info >	A$0.29
60	Front Stand Weldment 413-480-660 More Info >	A$71.25
61	Pin 406-346-410 More Info >	A$5.96
62	Cap - Tube Insert Square 209-480-661 More Info >	A$22.42
63	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
64	Blind Rivet 213-000-004 More Info >	A$1.12
65	Headstock 417-000-459 More Info >	Price on Request
66	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
67	Roller Scraper 404-480-452 More Info >	Price on Request
