NOTES:

Part #	Number on image	Usage Notes
414-480-460	26	Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780	52	The Warlord 175 Series 2 is available in 2 different offsets. The standard offset listed uses a 615 extension. Other offsets are available; 780 extensions. Refer to the offset chart for specific measurements.

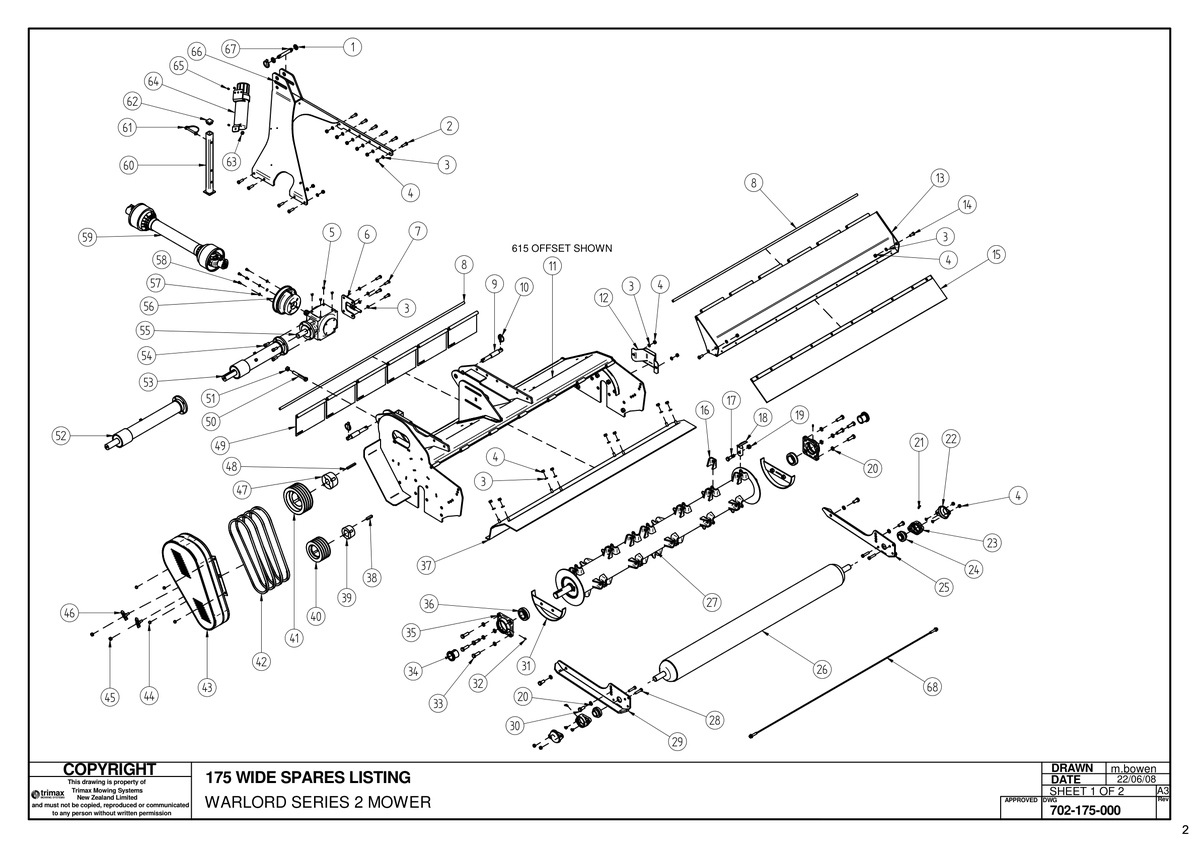

702 Warlord S2 175 - 175 Wide Spares Listing

Warlord S2 175

Grouped product items
No.	Product Name	Price
1	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
2	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
5	Blanking Plug - M12 209-900-012 More Info >	A$0.30
6	Adjuster 417-000-428 More Info >	A$85.60
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
8	Hinge Pin 175 417-000-186 More Info >	A$23.49
9	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
10	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
12	Bearing Guard 410-460-302 More Info >	A$79.51
13	Rear Flap Weldment HD 175 417-480-261 More Info >	Price on Request
14	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
16	Flail Lug 411-480-610 More Info >	A$17.66
18	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	A$29.96
19	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
20	Washer - Spring 308-160-043 More Info >	A$0.97
21	Grease Nipple - Trimax Specification 208-442-620 More Info >	A$7.08
22	Cap 410-464-072 More Info >	A$24.90
23	Bearing Housing 401-020-800 More Info >	A$32.31
24	Bearing 401-020-700 More Info >	A$43.12
25	Trailing Arm Weldment - RH 412-000-128 More Info >	A$171.05
26	Roller Weldment 175 i See notes section for usage notes on this part 414-480-460 More Info >	A$593.61
27	Rotor 415-480-560 More Info >	Price on Request
28	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	A$1.12
29	Trailing Arm Weldment - LH 412-000-129 More Info >	A$171.05
30	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	A$3.22
31	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	A$43.07
32	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
33	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	A$8.03
34	Sleeve - Taper 401-021-230 More Info >	A$37.00
35	Bearing Housing 401-021-220 More Info >	A$64.29
36	Bearing 401-021-210 More Info >	A$69.53
37	Body 417-000-493 More Info >	A$257.36
38	Key - Trimax Specification 205-425-920 More Info >	A$18.29
39	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	A$32.74
40	Pulley - Taper Lock 403-361-180 More Info >	A$139.68
41	Pulley - Taper Lock 403-361-270 More Info >	A$283.54
42	Vee Belt - Trimax Specification 404-040-512 More Info >	A$70.00
43	Belt Guard Weldment - RH Offset 410-480-440 More Info >	A$707.42
44	Button - Anti Rattle 209-446-360 More Info >	A$5.24
45	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
46	Drop Latch - Anti-loose 423-080-400 More Info >	A$29.92
47	Bush - Taper Lock - Trimax Specification 402-060-710 More Info >	A$81.18
48	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	A$13.16
49	Front Flap Weldment 417-480-320 More Info >	A$29.72
50	Set Screw 313-616-123 More Info >	Price on Request
51	Nut - Plain 307-216-013 More Info >	A$0.97
52	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	A$718.95
54	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	A$2.08
55	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
56	Cone 410-440-400 More Info >	A$29.59
57	Washer - Flat 308-080-013 More Info >	A$0.06
58	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
59	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	A$389.63
60	Front Stand Weldment 413-480-660 More Info >	A$71.25
61	Pin 406-346-410 More Info >	A$5.96
62	Cap - Tube Insert Square 209-480-661 More Info >	A$22.42
63	Washer - Fender 108-031-413 More Info >	A$0.29
64	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
65	Blind Rivet 213-000-004 More Info >	A$1.12
66	Headstock 417-000-459 More Info >	Price on Request
67	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
68	Roller Weldment - HD 175 414-480-463 More Info >	A$932.73
