NOTES:

Part #	Number on image	Usage Notes
414-480-480	30	Roller stub sleeves were eliminated from 702-175-001-0011. Replaced with Loctite 635 (green); refer to ECN 1665 (July 2011).
405-201-780	46	The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.
405-201-920	54	The Warlord 235 Series 2 is available in 3 different offsets. The standard offset listed uses a 780 extension. Other offsets are available; 950 and 1060 extensions. Refer to the offset chart for specific measurements.

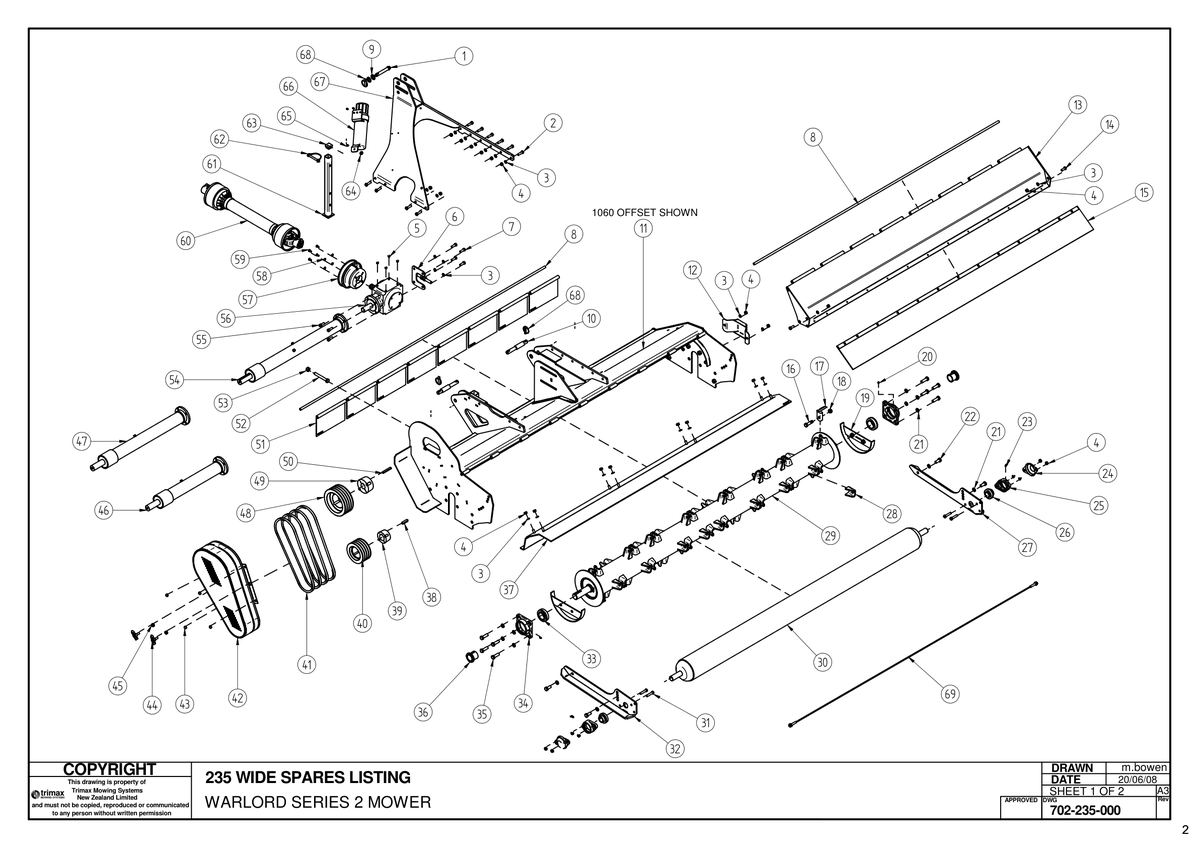

702 Warlord S2 235 - 235 Wide Spares Listing

Warlord S2 235

Grouped product items
No.	Product Name	Price
1	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
2	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
3	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
4	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
5	Blanking Plug - M12 209-900-012 More Info >	A$0.30
6	Adjuster 417-000-428 More Info >	A$85.60
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
8	Hinge Pin 235 417-000-190 More Info >	Price on Request
9	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
10	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
12	Bearing Guard 410-460-302 More Info >	A$79.51
13	Rear Flap Assembly 417-480-281 More Info >	Price on Request
14	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
17	Flail - Spring Steel Flail - Warlord - Trimax Specification - 411-160-200 More Info >	A$29.96
18	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
19	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	A$43.07
20	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
21	Washer - Spring 308-160-043 More Info >	A$0.97
22	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	A$3.22
23	Grease Nipple - Trimax Specification 208-442-620 More Info >	A$7.08
24	Cap 410-464-072 More Info >	A$24.90
25	Bearing Housing 401-020-800 More Info >	A$32.31
26	Bearing 401-020-700 More Info >	A$43.12
27	Trailing Arm Weldment - RH 412-000-128 More Info >	A$171.05
28	Flail Lug 411-480-610 More Info >	A$17.66
29	Rotor 415-480-580 More Info >	A$2,968.81
30	Roller Weldment 235 i See notes section for usage notes on this part 414-480-480 More Info >	A$826.24
31	Bolt - Hex Head - M12 x 55 - Trimax Specification 301-212-553 More Info >	A$1.12
32	Trailing Arm Weldment - LH 412-000-129 More Info >	A$171.05
33	Bearing 401-021-210 More Info >	A$69.53
34	Bearing Housing 401-021-220 More Info >	A$64.29
35	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	A$8.03
36	Sleeve - Taper 401-021-230 More Info >	A$37.00
37	Body 417-000-494 More Info >	A$535.00
38	Key - Trimax Specification 205-425-920 More Info >	A$18.29
39	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	A$32.74
40	Pulley - Taper Lock 403-361-180 More Info >	A$139.68
41	Vee Belt - Trimax Specification 404-040-512 More Info >	A$70.00
42	Belt Guard Weldment - RH Offset 410-480-440 More Info >	A$707.42
43	Button - Anti Rattle 209-446-360 More Info >	A$5.24
44	Drop Latch - Anti-loose 423-080-400 More Info >	A$29.92
45	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
46	Extension Shaft Assembly - Gearbox i See notes section for usage notes on this part 405-201-780 More Info >	A$718.95
48	Pulley - Taper Lock 403-361-270 More Info >	A$283.54
49	Bush - Taper Lock - Trimax Specification 402-060-710 More Info >	A$81.18
50	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	A$13.16
51	Front Flap Weldment 417-480-320 More Info >	A$29.72
52	Set Screw 313-616-123 More Info >	Price on Request
53	Nut - Plain 307-216-013 More Info >	A$0.97
54	Extension Assembly i See notes section for usage notes on this part 405-201-920 More Info >	Price on Request
55	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	A$2.08
56	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
57	Cone 410-440-400 More Info >	A$29.59
58	Washer - Flat 308-080-013 More Info >	A$0.06
59	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
60	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	A$389.63
61	Front Stand Weldment 413-480-660 More Info >	A$71.25
62	Pin 406-346-410 More Info >	A$5.96
63	Cap - Tube Insert Square 209-480-661 More Info >	A$22.42
64	Washer - Fender 108-031-413 More Info >	A$0.29
65	Blind Rivet 213-000-004 More Info >	A$1.12
66	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
67	Headstock 417-000-459 More Info >	Price on Request
68	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
69	Roller Scraper 404-480-483 More Info >	A$68.76
