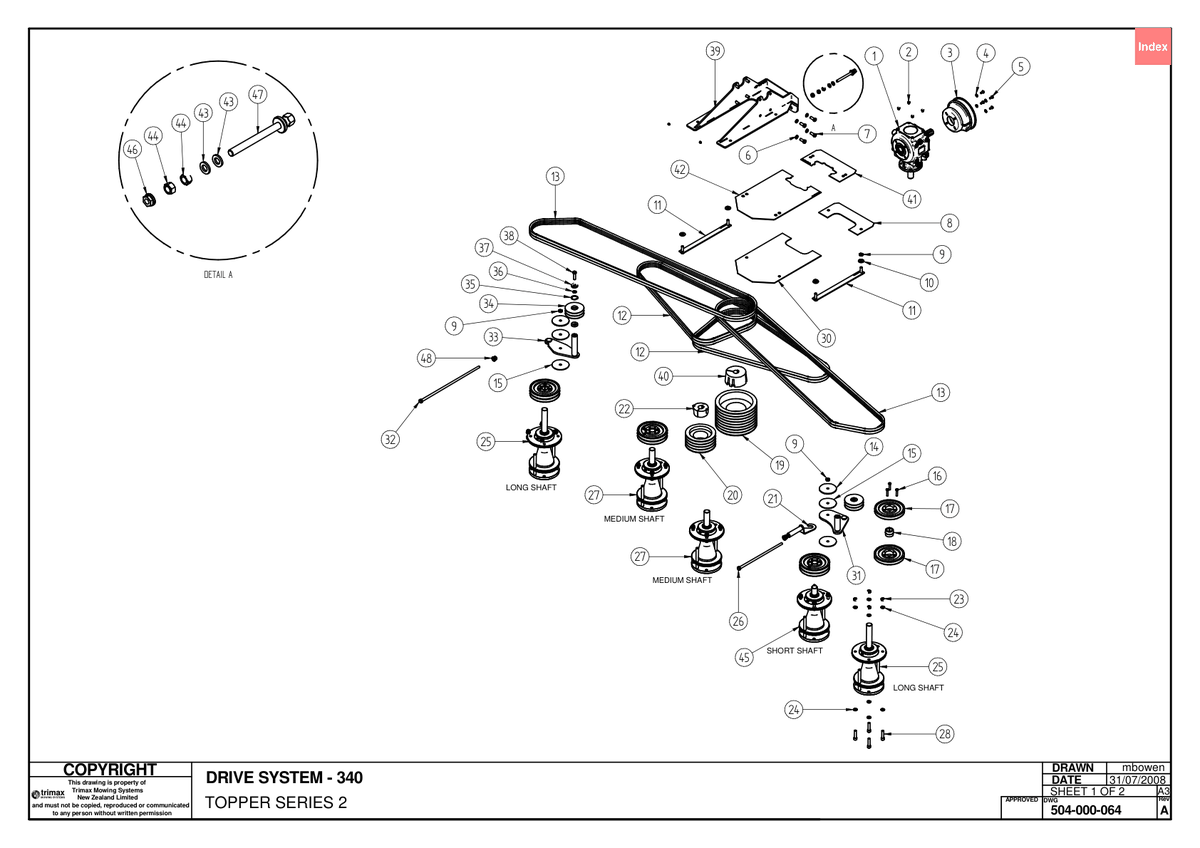

704 - Topper S2 340 - Drive System 340

Topper S2 340

Grouped product items
No.	Product Name	Price
1	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
2	Blanking Plug - M12 209-900-012 More Info >	A$0.30
3	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	A$60.17
4	Washer - Flat 308-080-013 More Info >	A$0.06
5	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
6	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
7	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
8	Inspection Cover 417-000-568 More Info >	Price on Request
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
10	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
11	Slide Plate 417-000-524 More Info >	Price on Request
12	Vee Belt - Trimax Specification 404-040-840 More Info >	A$33.49
14	Clamp Washer 403-000-030 More Info >	Price on Request
15	Pivot Washer 403-000-020 More Info >	Price on Request
16	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	A$0.47
17	Pulley 403-360-500 More Info >	A$57.80
18	Bush 402-060-320 More Info >	A$26.55
19	Pulley 403-000-012 More Info >	Price on Request
20	Pulley 403-000-014 More Info >	Price on Request
21	Hook Assembly 403-000-031 More Info >	Price on Request
23	Nut - Plain 307-212-010 More Info >	A$2.01
24	Washer - Hardened 108-071-513 More Info >	A$3.54
26	Adjuster Rod Assembly 403-000-034 More Info >	Price on Request
27	Spindle Assembly - Topper S1 504-328-011 More Info >	A$1,150.19
28	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	A$2.84
30	Inspection Cover 417-000-569 More Info >	Price on Request
31	Idler Adjuster Assembly M 403-000-021 More Info >	Price on Request
32	Adjuster Rod Assembly 403-000-036 More Info >	Price on Request
33	Idler Adjuster Assembly L 403-000-016 More Info >	Price on Request
34	Idler Pulley 403-000-015 More Info >	Price on Request
35	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
36	Washer - Flat 108-071-413 More Info >	A$2.89
37	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
38	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	A$4.33
39	Gearbox Mounting Plate 417-000-525 More Info >	Price on Request
40	Bush 402-000-015 More Info >	Price on Request
41	Inspection Cover 417-000-526 More Info >	Price on Request
42	Inspection Cover 417-000-527 More Info >	Price on Request
43	Washer - Flat 308-120-017 More Info >	Price on Request
44	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
45	Spindle Assembly 504-000-071 More Info >	Price on Request
46	Nut - Flange 307-212-323 More Info >	Price on Request
47	Gearbox Adjuster 403-000-039 More Info >	Price on Request
48	Tube Bush 402-000-013 More Info >	Price on Request
