NOTES:

Part # Number on image Usage Notes
402-000-142 29
  • Taper Lock pulleys & bushes used on all mowers manufactured from Serial number onwards: TNZ: 751-135-301-1059356 / 706-135-2108-3002646, 751-155-302-1056125 / 706-155-2103-3002648, 751-185-302-1056443 / 706-185-289-3002548
403-000-128 31
  • Taper Lock pulleys & bushes used on all mowers manufactured from Serial number onwards: TNZ: 751-135-301-1059356 / 706-135-2108-3002646, 751-155-302-1056125 / 706-155-2103-3002648, 751-185-302-1056443 / 706-185-289-3002548
301-212-253 59
  • (Option) only used with mowers sold with converter flap assembly options
412-152-461 64
  • Weld on skids available under part numbers: 412-152-463 – Skid Folding - LH, 412-152-464 – Skid Folding - RH
412-152-462 65
  • Weld on skids available under part numbers: 412-152-463 – Skid Folding - LH, 412-152-464 – Skid Folding - RH
301-208-403 67
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
402-060-150 68
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
402-060-210 69
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
403-360-300 70
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
403-360-650 71
  • All mowers manufactured prior to the above serial number were fitted with double Bi-loc pulley & Bi-loc bush setup for top & bottom pulleys use part item numbers from 66 to 70.
405-200-661 35
  • Use these part numbers for non-Keyway Extension shaft only.
405-000-090 35
  • For OFFSET 155 & 185 Mowers, Use P/N: 405-000-089 for Extension Shaft Assembly
405-200-664 35
  • Use these part numbers for non-Keyway Extension shaft only.
503-152-204 66
  • Use these part numbers for non-Keyway Drive End Stub rotor assembly only
  • Use these part numbers for non-Keyway Drive End Stub rotor assembly only
405-000-091 35
  • For OFFSET 155 & 185 Mowers, Use P/N: 405-000-089 for Extension Shaft Assembly
405-200-665 35
  • Use these part numbers for non-Keyway Extension shaft only.

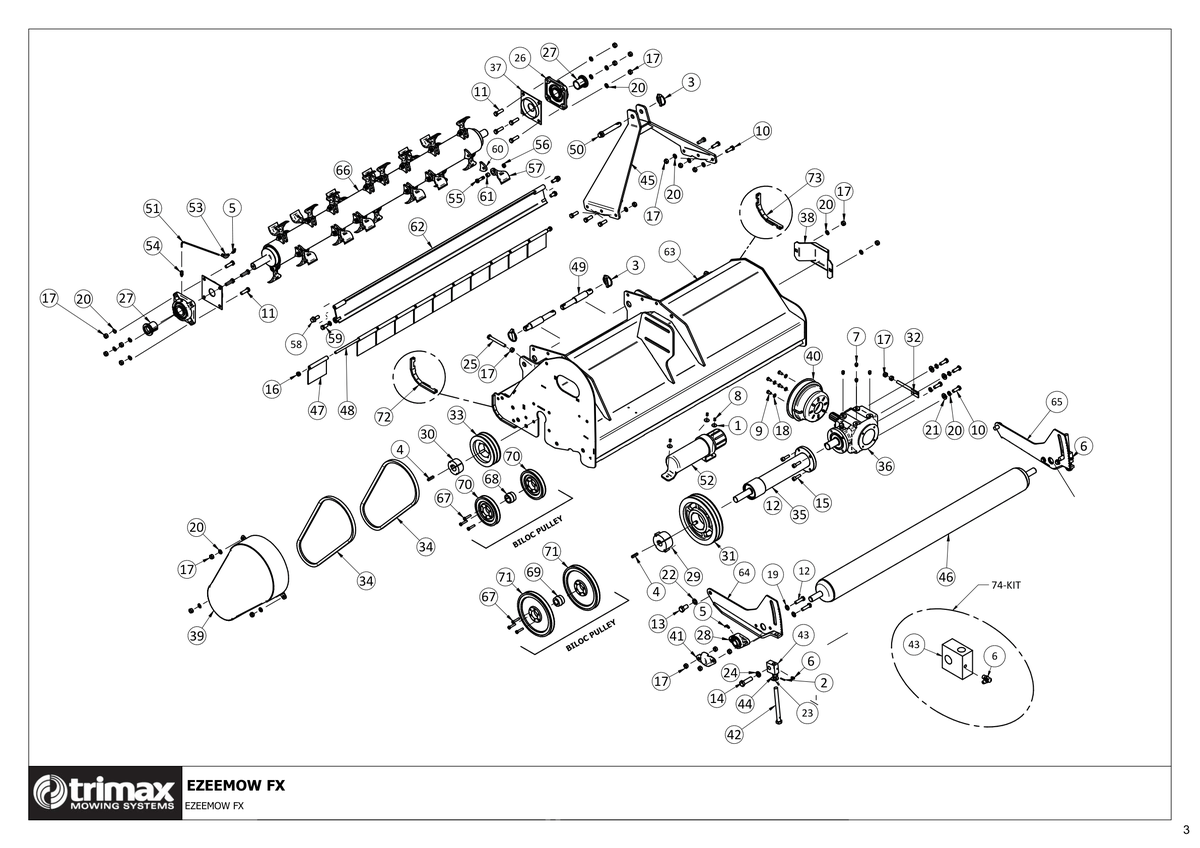

706 - Ezeemow FX - Ezeemow FX

Ezeemow FX, Ezeemow FX 135, Ezeemow FX 155, Ezeemow FX 185

Grouped product items
No. Image Product Name Price Quantity
1 Washer - Fender [108-031-413] Washer - Fender 108-031-413
A$0.29
2 Roll Pin [202-447-980] Roll Pin 202-447-980
A$2.57
3 Linch Pin [203-300-700] Linch Pin 203-300-700
A$3.05
4 Key [205-000-004] Key 205-000-004
Price on Request
5 Grease Nipple [208-442-620] Grease Nipple 208-442-620
A$7.08
6 Grease Nipple [208-442-650] Grease Nipple 208-442-650
A$6.43
7 Blanking Plug [209-900-012] Blanking Plug 209-900-012
A$0.30
8 Blind Rivet [213-000-004] Blind Rivet 213-000-004
A$1.12
9 Bolt [301-208-163] Bolt 301-208-163
A$0.54
10 Bolt [301-212-353] Bolt 301-212-353
A$3.86
11 Bolt [301-212-403] Bolt 301-212-403
A$4.17
12 Bolt [301-212-453] Bolt 301-212-453
A$4.33
13 Bolt [301-216-303] Bolt 301-216-303
A$2.89
14 Bolt [301-216-553] Bolt 301-216-553
A$9.15
15 Cap Screw [303-210-353] Cap Screw 303-210-353
A$5.52
16 Nut - Nyloc [307-210-053] Nut - Nyloc 307-210-053
A$0.89
17 Nut - Plain [307-212-013] Nut - Plain 307-212-013
A$0.80
18 Washer - Flat [308-080-016] Washer - Flat 308-080-016
A$0.36
19 Washer - Flat [308-120-013] Washer - Flat 308-120-013
A$0.65
20 Washer - Spring [308-120-043] Washer - Spring 308-120-043
A$0.65
21 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
A$1.65
22 Washer [308-160-043] Washer 308-160-043
A$0.97
23 Washer - Heavy Flat [308-160-063] Washer - Heavy Flat 308-160-063
A$2.14
24 Washer - Nordloc [308-160-083] Washer - Nordloc 308-160-083
A$8.03
26 Bearing Assembly [401-000-001] Bearing Assembly 401-000-001
A$85.00
27 Tapered Locking Assembly [401-021-150] Tapered Locking Assembly 401-021-150
A$15.17
28 Bearing Assembly [401-150-300] Bearing Assembly 401-150-300
A$42.00
29 Bush - Taperlock - Ø28MM - 2517 [402-000-142] Bush - Taperlock - Ø28MM - 2517 i See notes section for usage notes on this part 402-000-142
Price on Request
31 Pulley - Taper Lock ��236 SPB x 2 [403-000-128] Pulley - Taper Lock ��236 SPB x 2 i See notes section for usage notes on this part 403-000-128
A$154.26
33 Pulley - Taper Lock [403-361-140] Pulley - Taper Lock 403-361-140
A$80.96
34 Vee Belt [404-040-470] Vee Belt 404-040-470
A$28.00
36 Gearbox [405-200-650] Gearbox 405-200-650
A$663.02
37 Rotor Shield [410-152-290] Rotor Shield 410-152-290
A$56.78
38 Protector [410-152-480] Protector 410-152-480
A$73.73
39 Guard [410-152-740] Guard 410-152-740
A$531.15
40 Cone - PTO Shield w/ Cut Out [410-440-401] Cone - PTO Shield w/ Cut Out 410-440-401
A$60.17
41 Cap [410-464-071] Cap 410-464-071
A$29.00
42 Set Screw [412-000-610] Set Screw 412-000-610
A$31.24
43 Height Adjuster Block [412-330-273] Height Adjuster Block 412-330-273
A$84.53
44 Collar - Height Adjuster [412-850-260] Collar - Height Adjuster 412-850-260
A$25.37
49 Pin - Linkage - Lower Dual Cat. [419-300-900] Pin - Linkage - Lower Dual Cat. 419-300-900
A$40.92
50 Pin - Linkage - Top Link [419-301-150] Pin - Linkage - Top Link 419-301-150
A$21.53
52 Operator Manual Tube - Screw Cap [450-000-073] Operator Manual Tube - Screw Cap 450-000-073
A$47.49
53 Fitting - Grease Line, Tapped for Nipple [450-152-822] Fitting - Grease Line, Tapped for Nipple 450-152-822
A$34.68
54 Fitting - Grease Line [450-152-892] Fitting - Grease Line 450-152-892
A$22.06
58 Shoulder Bolt - Converter Flap [450-000-056] Shoulder Bolt - Converter Flap 450-000-056
A$25.13
59 Bolt [301-212-253] Bolt i See notes section for usage notes on this part 301-212-253
A$4.17
64 Trailing Arm Weldment LH [412-152-461] Trailing Arm Weldment LH i See notes section for usage notes on this part 412-152-461
A$160.00
65 Trailing Arm Weldment RH [412-152-462] Trailing Arm Weldment RH i See notes section for usage notes on this part 412-152-462
A$160.00
67 Bolt [301-208-403] Bolt i See notes section for usage notes on this part 301-208-403
A$0.47
68 Bush [402-060-150] Bush i See notes section for usage notes on this part 402-060-150
A$16.99
69 Bush [402-060-210] Bush i See notes section for usage notes on this part 402-060-210
A$31.44
70 Pulley [403-360-300] Pulley i See notes section for usage notes on this part 403-360-300
A$64.20
71 Pulley [403-360-650] Pulley i See notes section for usage notes on this part 403-360-650
A$97.92
72 Skid Plate [417-001-187] Skid Plate 417-001-187
A$114.12
73 Skid Plate [417-001-188] Skid Plate 417-001-188
A$114.12
35 Extension Shaft - Assembly - 135/155/185 OS - Keyway [405-000-089] Extension Shaft - Assembly - 135/155/185 OS - Keyway 405-000-089
Price on Request
35 Extension Assembly [405-200-661] Extension Assembly i See notes section for usage notes on this part 405-200-661
Price on Request
47 Flap Weldment - Front [417-000-600] Flap Weldment - Front 417-000-600
A$41.06
55 Bolt [305-210-403] Bolt 305-210-403
A$4.00
56 Nut - Plain [307-210-013] Nut - Plain 307-210-013
A$0.54
57 Flail [411-160-105] Flail 411-160-105
A$18.00
60 Flail Lug [411-240-011] Flail Lug 411-240-011
A$4.28
61 Bush [402-060-750] Bush 402-060-750
A$5.00
35 Extension Shaft - Assembly - 155 CM - Keyway [405-000-090] Extension Shaft - Assembly - 155 CM - Keyway i See notes section for usage notes on this part 405-000-090
Price on Request
35 Extension Assembly [405-200-664] Extension Assembly i See notes section for usage notes on this part 405-200-664
Price on Request
46 Roller Weldment 155 [414-152-302] Roller Weldment 155 414-152-302
A$465.97
48 Flap Rod 155 [417-000-602] Flap Rod 155 417-000-602
A$72.43
62 Convertor Flap Weldment 155 [417-000-641] Convertor Flap Weldment 155 417-000-641
A$792.45
66 Rotor Assembly 155 Balanced [503-152-204] Rotor Assembly 155 Balanced i See notes section for usage notes on this part 503-152-204
A$2,952.02
35 Extension Shaft - Assembly - 185 CM - Keyway [405-000-091] Extension Shaft - Assembly - 185 CM - Keyway i See notes section for usage notes on this part 405-000-091
Price on Request
35 Extension Assembly [405-200-665] Extension Assembly i See notes section for usage notes on this part 405-200-665
Price on Request
46 Roller Weldment 185 [414-140-010] Roller Weldment 185 414-140-010
A$519.06
48 Flap Rod 185 [417-000-603] Flap Rod 185 417-000-603
A$94.37
62 Convertor Flap Weldment 185 [417-000-642] Convertor Flap Weldment 185 417-000-642
A$511.10
