NOTES:

Part #	Number on image	Usage Notes
402-000-141	8	Taper lock pulley and bush use introduced from serial number onwards: NZ: 751-135-301-1059356 NZ\nGB: 711-135-258-3002134 UK
403-000-144	10	Taper lock pulley and bush use introduced from serial number onwards: NZ: 751-135-301-1059356 NZ\nGB: 711-135-258-3002134 UK
403-361-140	13	Taper lock pulley and bush use introduced from serial number onwards: NZ: 751-135-301-1059356 NZ\nGB: 711-135-258-3002134 UK
405-000-098	15	For Extension without Keyway use P/N: 405-200-086
405-200-080	16	Use 405-200-080 for Kubota new holland and Shibura power units only
405-200-090	16	Use 405-200-090 for John Deere and Iseki power units only

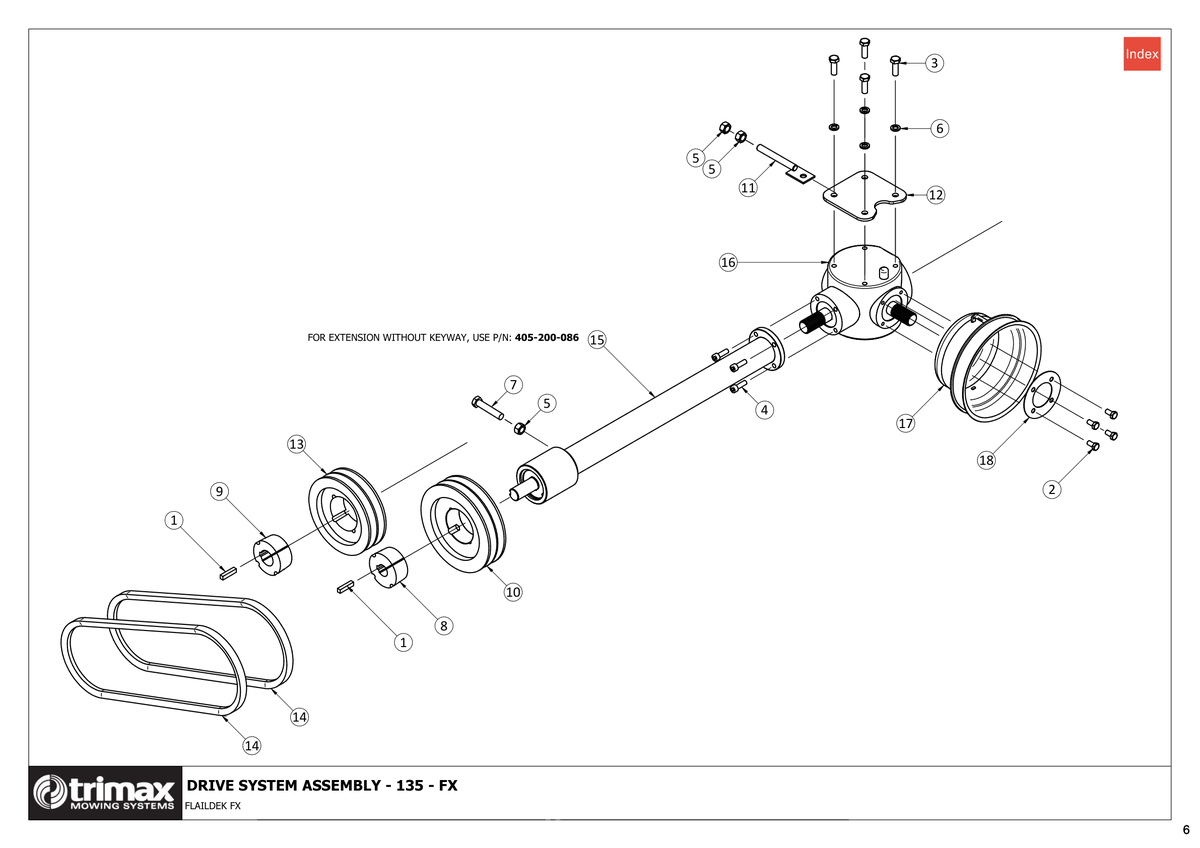

711 - Flaildek FX 135 - Drive System - Taper Lock Pulley

FlailDek FX 135

Grouped product items
No.	Product Name	Price
1	Key 205-000-004	Price on Request
2	Bolt 301-208-163 More Info >	A$0.54
3	Bolt 301-210-303 More Info >	A$0.80
5	Nut - Plain 307-212-013 More Info >	A$0.80
6	Washer - Spring 308-100-043 More Info >	A$0.65
7	Set Screw 313-212-603 More Info >	A$1.25
8	Bush - Taperlock - Ø24MM - 2012 i See notes section for usage notes on this part 402-000-141	A$14.52
10	Pulley - Taperlock - Ø170 x 2 SPB i See notes section for usage notes on this part 403-000-144	Price on Request
11	Tension Adjuster 403-154-210 More Info >	A$1.47
12	Slide Plate 403-154-250 More Info >	A$20.05
13	Pulley - Taper Lock i See notes section for usage notes on this part 403-361-140 More Info >	A$80.96
14	Vee Belt 404-040-430 More Info >	A$25.00
15	Extension Shaft - Assembly - 135 - Keyway i See notes section for usage notes on this part 405-000-098	Price on Request
16	Kubota Gearbox i See notes section for usage notes on this part 405-200-080 More Info >	A$1,045.17
16	John Deere Gearbox i See notes section for usage notes on this part 405-200-090 More Info >	A$1,293.90
17	Cone 410-440-409 More Info >	Price on Request
18	Plate - PTO Cone Retainer 450-440-381 More Info >	A$9.44
