NOTES:

Part #	Number on image	Usage Notes
402-060-210	9	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
403-360-300	13	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
404-040-430	15	When fitting to an Iseki power unit the rotor pulley and bush and drive belts need to be changed. Use 403-361-050 pulley and 402-060-670 Bush and 404-040-420 Vee Belt.
405-200-080	16	For Kubota New Holland and Shibura Power Units Only
405-200-090	17	For John Deer and Iseki Power Units Only

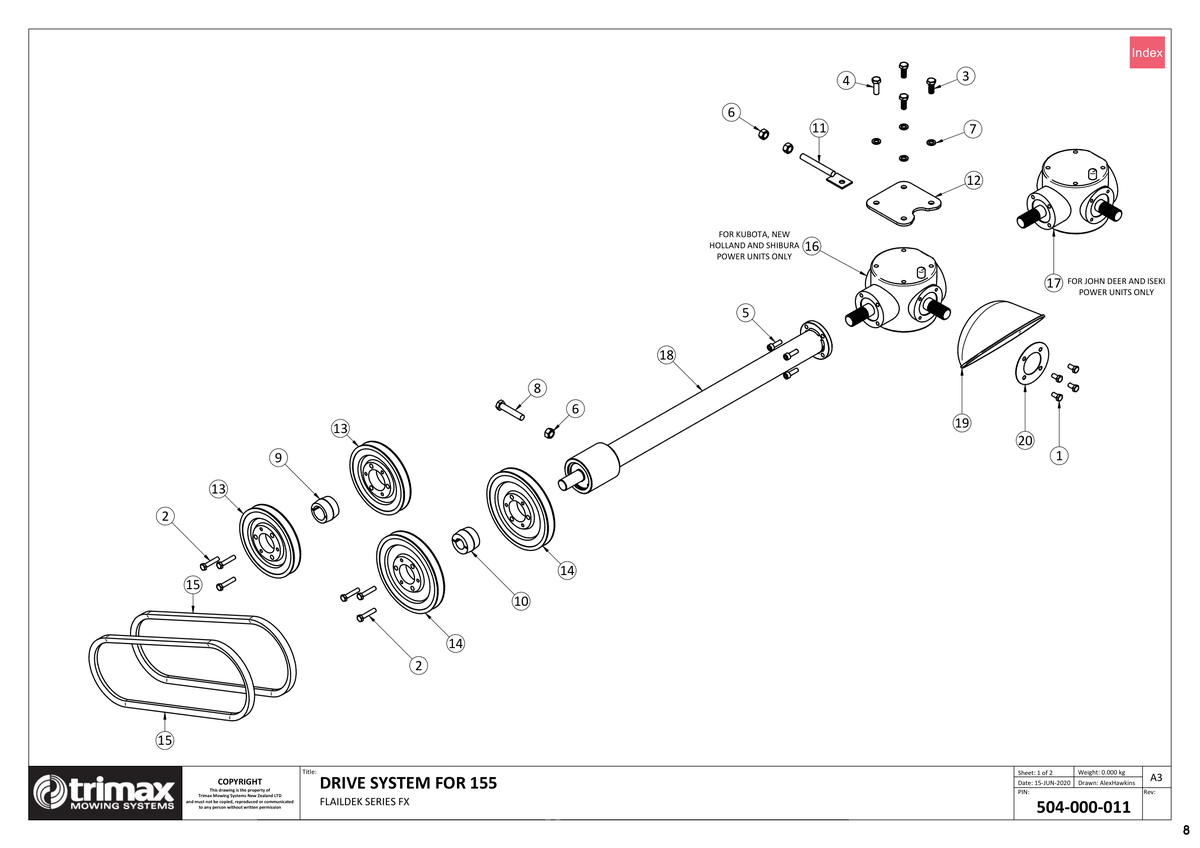

711 - Flaildek FX 155 - Drive System - Biloc

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Bolt 301-208-163 More Info >	A$0.54
2	Bolt 301-208-403 More Info >	A$0.47
3	Bolt 301-210-253 More Info >	A$0.80
4	Bolt 301-210-303 More Info >	A$0.80
6	Nut - Plain 307-212-013 More Info >	A$0.80
7	Washer - Spring 308-100-043 More Info >	A$0.65
8	Set Screw 313-212-603 More Info >	A$1.25
9	Bush i See notes section for usage notes on this part 402-060-210 More Info >	A$31.44
10	Bush 402-060-240 More Info >	A$56.60
11	Tension Adjuster 403-154-210 More Info >	A$1.47
12	Slide Plate 403-154-250 More Info >	A$20.05
13	Pulley i See notes section for usage notes on this part 403-360-300 More Info >	A$64.20
14	Pulley 403-360-500 More Info >	A$57.80
15	Vee Belt i See notes section for usage notes on this part 404-040-430 More Info >	A$25.00
16	Kubota Gearbox i See notes section for usage notes on this part 405-200-080 More Info >	A$1,045.17
17	John Deere Gearbox i See notes section for usage notes on this part 405-200-090 More Info >	A$1,293.90
18	155 Extension Assembly 405-200-096 More Info >	A$920.38
19	Cone 410-440-380 More Info >	A$49.88
20	Plate - PTO Cone Retainer 450-440-381 More Info >	A$9.44
