NOTES:

Part #	Number on image	Usage Notes
412-000-610	31	Use part number 412-152-420 for Height Adjuster Rod Assy - c/w Collar/Pin EM2/FD2
401-000-047	40	Item number 40 & 41 are only used on black steel rim configuration.
402-000-155	41	Item number 40 & 41 are only used on black steel rim configuration.
401-000-012	43	Item number 42 43 & 44 are only used on white steel rim configuration.
416-000-097	44	Item number 42 43 & 44 are only used on white steel rim configuration.

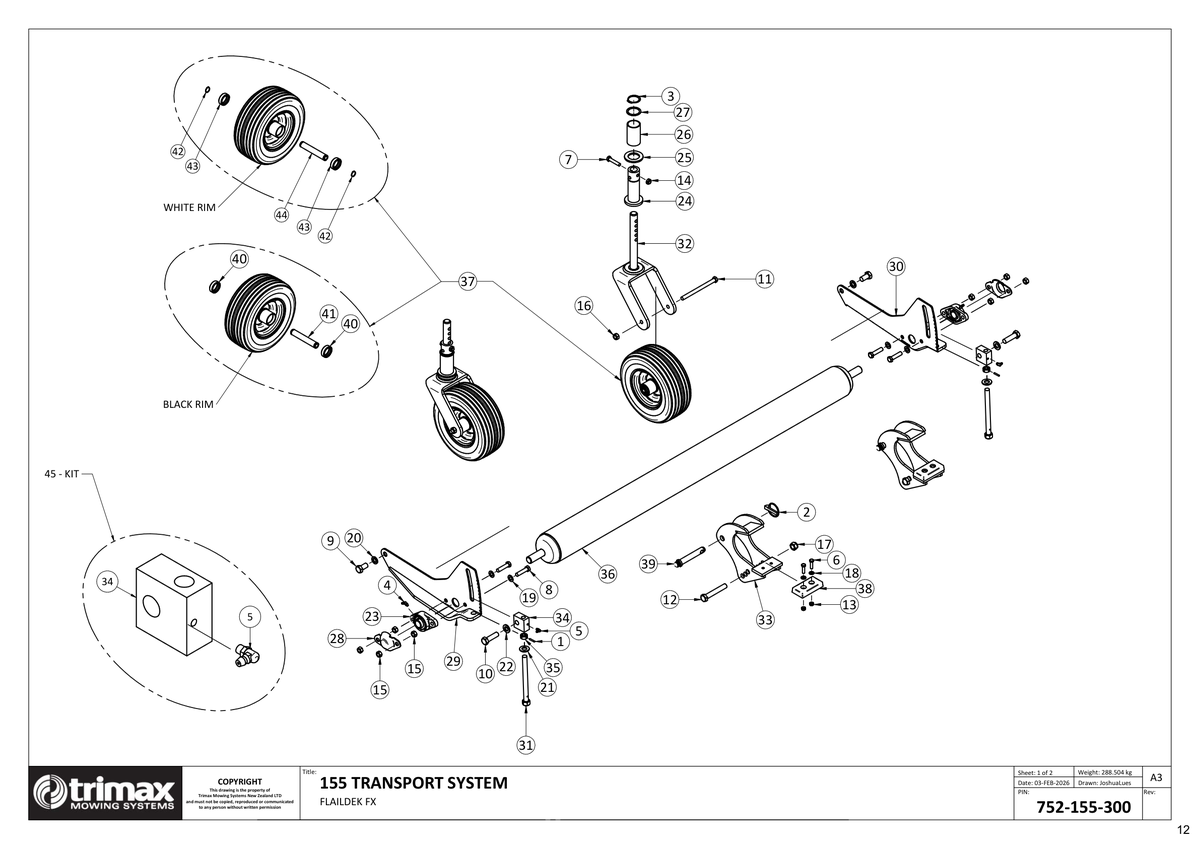

711 - Flaildek FX 155 - Transport System

FlailDek FX 155

Grouped product items
No.	Product Name	Price
1	Roll Pin 202-447-980 More Info >	A$2.57
2	Linch Pin 203-300-700 More Info >	A$3.05
3	Circlip/Snap Ring - External 204-820-402 More Info >	A$7.32
4	Grease Nipple 208-442-620 More Info >	A$7.08
5	Grease Nipple 208-442-650 More Info >	A$6.43
6	Bolt 301-208-303 More Info >	A$0.60
7	Bolt 301-210-503 More Info >	A$0.74
8	Bolt 301-212-503 More Info >	A$4.48
9	Bolt 301-216-303 More Info >	A$2.89
10	Bolt 301-216-553 More Info >	A$9.15
11	Bolt 301-612-163 More Info >	A$4.92
12	Bolt 301-616-103 More Info >	A$3.31
13	Nut - Nyloc 307-208-056 More Info >	A$1.18
14	Nut - Nyloc 307-210-053 More Info >	A$0.89
15	Nut - Plain 307-212-013 More Info >	A$0.80
16	Nut - Nyloc 307-212-053 More Info >	A$1.07
17	Nut - Nyloc 307-216-053 More Info >	A$1.44
18	Washer - Flat 308-080-016 More Info >	A$0.36
19	Washer - Flat 308-120-013 More Info >	A$0.65
20	Washer 308-160-043 More Info >	A$0.97
21	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
22	Washer - Nordloc 308-160-083 More Info >	A$8.03
23	Bearing Assembly 401-150-300 More Info >	A$42.00
24	Pivot Boss 402-152-110 More Info >	A$166.80
25	Thrust Washer 402-152-120 More Info >	A$26.55
26	Pivot Bush 402-152-130 More Info >	A$97.92
27	Retaining Washer 402-152-140 More Info >	A$21.36
28	Cap 410-464-071 More Info >	A$29.00
29	Trailing Arm Weldment LH 412-000-380 More Info >	A$200.00
30	Trailing Arm Weldment RH 412-000-381 More Info >	A$200.00
31	Set Screw i See notes section for usage notes on this part 412-000-610	A$31.24
32	Castor Fork Weldment - 5 hole 412-152-560 More Info >	A$253.63
33	Linkage Adjuster Weldment 412-154-200 More Info >	A$212.34
34	Height Adjuster Block 412-330-273 More Info >	A$84.53
35	Collar - Height Adjuster 412-850-260 More Info >	A$25.37
36	Roller Weldment 155 414-152-302 More Info >	A$465.97
37	Wheel - Semi Pneumatic 416-000-076 More Info >	A$270.44
38	Pad 417-153-140 More Info >	A$27.02
39	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
40	Bearing 6204-2RS i See notes section for usage notes on this part 401-000-047 More Info >	A$17.88
41	Sleeve - Castor Axle Ø13 X Ø24 X 120 i See notes section for usage notes on this part 402-000-155 More Info >	A$97.51
43	Bearing i See notes section for usage notes on this part 401-000-012 More Info >	A$45.56
44	Sleeve - Castor Axle i See notes section for usage notes on this part 416-000-097 More Info >	A$48.15
