NOTES:

Part #	Number on image	Usage Notes
301-616-103	7	An oversize O.D. bush is available on request, use P/N 402-061-100
422-380-210	44	Front wheel can be ordered as an assembly, use P/N 416-449-010
401-021-870	45	Front wheel can be ordered as an assembly, use P/N 416-449-010
416-449-015	48	Front wheel can be ordered as an assembly, use P/N 416-449-010
404-320-127	89	Not fitted in all markets

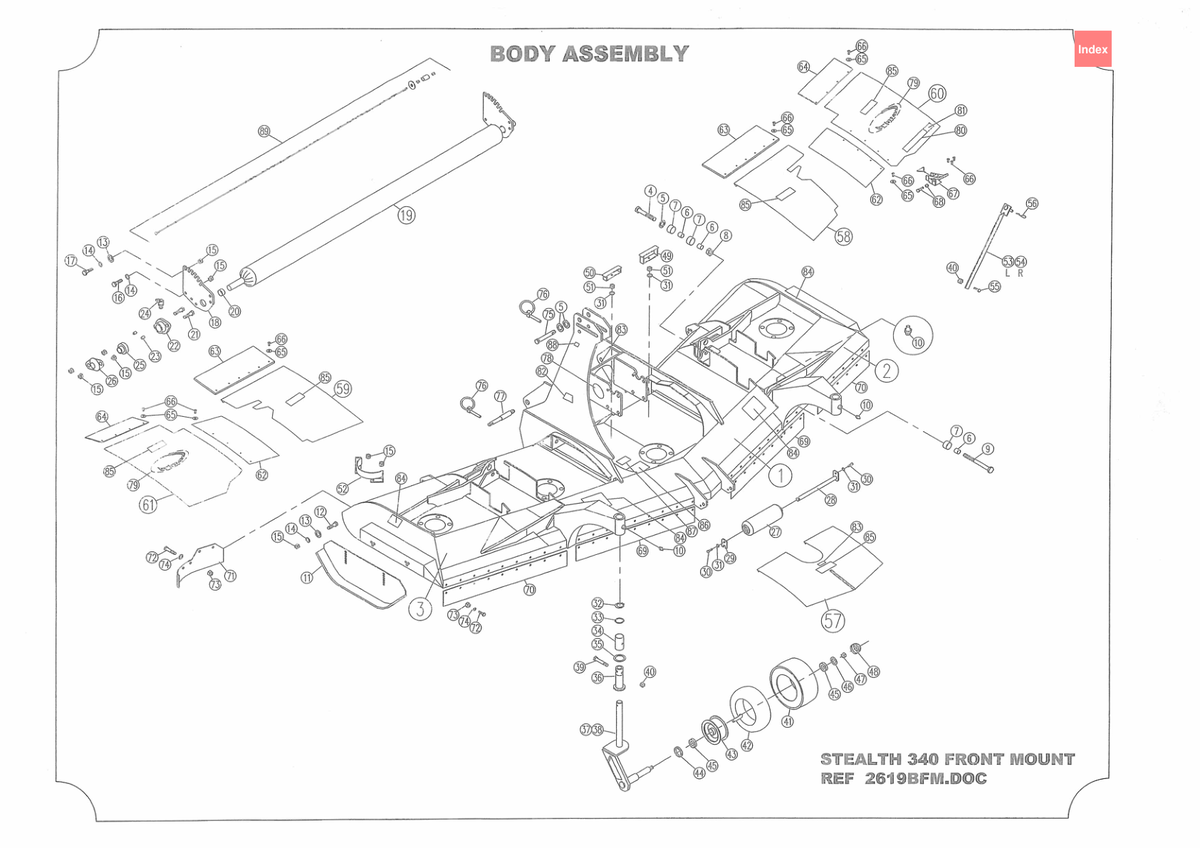

715 - 340 Stealth S1 FM - Body Assembly

Stealth S1 FM 340

Grouped product items
No.	Product Name	Price
4	Bolt 305-620-153 More Info >	A$31.77
5	Washer - Heavy Flat 308-200-064 More Info >	A$1.44
6	Bush - Inner Ring 401-021-860 More Info >	A$22.20
7	Bolt i See notes section for usage notes on this part 301-616-103 More Info >	A$3.31
8	Nut - Plain 307-220-013 More Info >	A$1.44
9	Bolt 301-620-203 More Info >	A$15.68
10	Grease Nipple 208-442-600 More Info >	A$3.78
11	Wing Skid Weldment - Stealth FM 412-320-113 More Info >	A$248.51
12	Bolt 301-212-353 More Info >	A$3.86
13	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
14	Washer - Spring 308-120-043 More Info >	A$0.65
15	Nut - Plain 307-212-013 More Info >	A$0.80
17	Bolt 301-212-403 More Info >	A$4.17
18	Quadrant - Roller Mounting ��6" Rollers ST 412-320-101 More Info >	A$57.80
19	Roller Weldment - FrST/RrSTFM 414-320-015 More Info >	A$569.55
20	Sleeve 402-464-062 More Info >	A$11.95
21	Bolt 301-212-503 More Info >	A$4.48
22	Bearing Assembly 401-020-701 More Info >	A$100.00
23	Sleeve 402-480-740 More Info >	A$8.13
24	Grease Nipple 208-442-620 More Info >	A$7.08
26	Cap 410-464-072 More Info >	A$24.90
27	Roller - Front Anti-scalp 414-320-030 More Info >	A$822.83
29	Axle Retainer 419-170-060 More Info >	A$8.73
30	Bolt 301-208-203 More Info >	A$1.31
31	Washer - Spring 308-080-043 More Info >	A$0.06
32	Circlip/Snap Ring - External 204-820-522 More Info >	A$4.04
33	Washer 412-320-090 More Info >	A$131.31
34	Bush - Pivot 402-320-060 More Info >	A$168.46
35	Washer - Thrust 402-320-080 More Info >	A$40.47
36	Boss - Pivot 402-320-070 More Info >	A$467.37
37	Front Castor Weldment - LH 412-320-051 More Info >	A$717.50
38	Front Castor Weldment - RH 412-320-052 More Info >	A$717.50
39	Bolt 301-212-653 More Info >	A$1.86
40	Nut - Nyloc 307-212-053 More Info >	A$1.07
44	Seal - Wheel Bearing i See notes section for usage notes on this part 422-380-210 More Info >	A$5.35
45	Bearing - Tapered Roller i See notes section for usage notes on this part 401-021-870 More Info >	A$26.75
46	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
47	Nut - Nyloc 307-216-053 More Info >	A$1.44
48	Grease Cap - Front Castor i See notes section for usage notes on this part 416-449-015 More Info >	A$10.21
51	Nut - Nyloc 307-208-053 More Info >	A$0.55
52	Belt Retainer Guide 417-330-460 More Info >	A$46.95
55	Bolt 301-212-453 More Info >	A$4.33
58	Cover 410-330-374 More Info >	A$299.53
59	Cover 410-330-373 More Info >	A$299.53
61	Cover 410-330-383 More Info >	A$365.49
62	Filler Rubber 410-330-375 More Info >	A$46.44
65	Washer - Fender 108-031-413 More Info >	A$0.29
66	Blind Rivet 213-443-250 More Info >	A$0.80
67	Adjustable Catch - Covers 423-080-220 More Info >	A$25.00
72	Bolt 301-206-203 More Info >	A$0.29
73	Nut - Nyloc 307-206-053 More Info >	A$0.89
74	Washer - Fender 108-041-613 More Info >	Price on Request
75	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
76	Linch Pin 203-300-700 More Info >	A$3.05
77	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
78	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	A$13.95
83	Decal - Instruction - PTO Speed 540RPM 424-100-900 More Info >	A$8.38
84	Decal - Safety - Blade Warning / Thrown Objects 424-100-950 More Info >	A$8.44
86	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	A$8.85
87	Decal - Instruction - Grease Points - Spindles 424-101-120 More Info >	A$2.36
89	Roller Scraper i See notes section for usage notes on this part 404-320-127 More Info >	A$68.76
