NOTES:

Part #	Number on image	Usage Notes
401-021-860	6	Refer to item 6 of the Body Assembly parts listing.

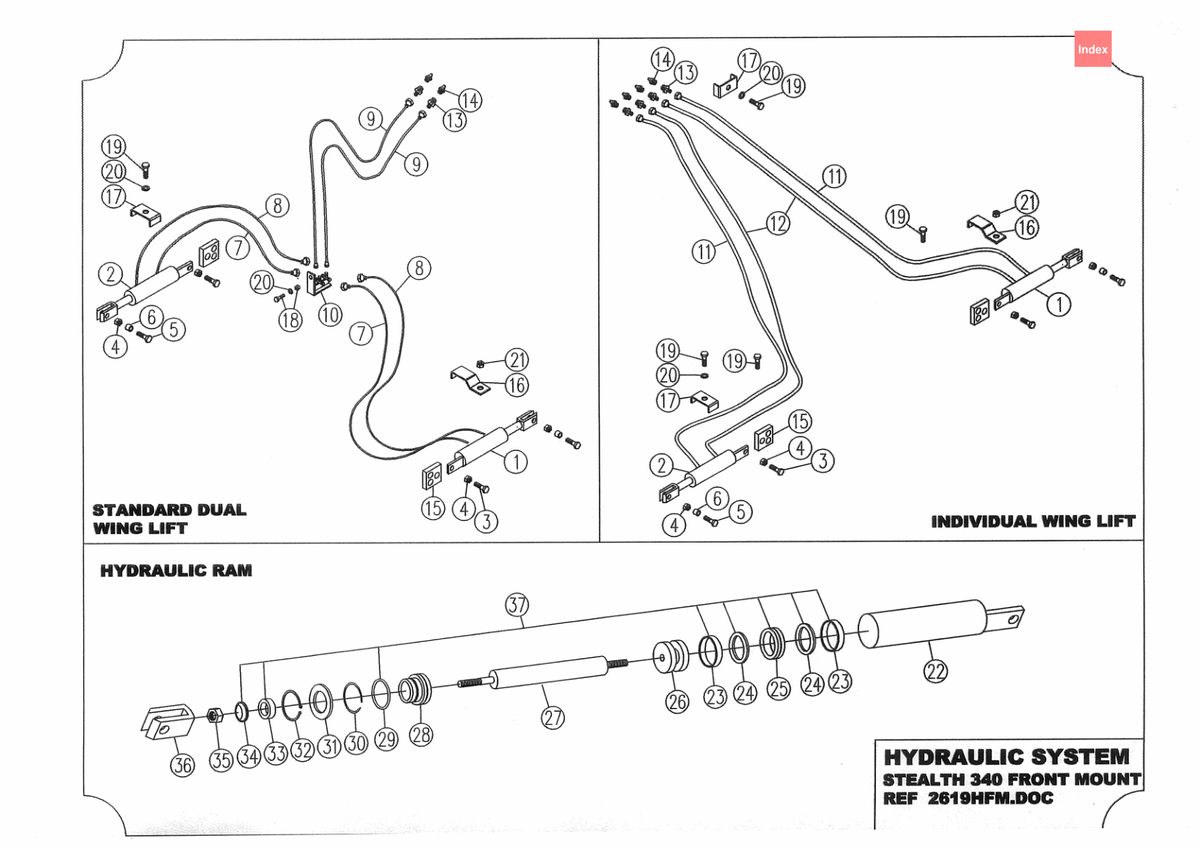

715 - 340 Stealth S1 FM - Hydraulic Circuit Individual Lift

Stealth S1 FM 340

Grouped product items
No.	Product Name	Price
3	Bolt 301-220-803 More Info >	A$20.21
4	Nut - Plain 307-220-013 More Info >	A$1.44
5	Bolt 305-220-803 More Info >	A$17.34
6	Bush - Inner Ring i See notes section for usage notes on this part 401-021-860 More Info >	A$22.20
9	Hose Assembly 409-448-270 More Info >	A$114.62
10	Tee Assembly 408-448-290 More Info >	A$123.91
12	Hose Assembly 409-448-350 More Info >	A$138.10
13	Nipple 408-448-280 More Info >	A$23.83
14	Coupling 408-447-580 More Info >	A$50.73
15	Damper 408-448-010 More Info >	A$26.01
18	Bolt 301-208-253 More Info >	A$0.29
19	Bolt 301-208-403 More Info >	A$0.47
20	Washer - Spring 308-080-043 More Info >	A$0.06
21	Nut - Plain 307-212-013 More Info >	A$0.80
37	Seal Kit 408-448-094 More Info >	A$83.52
