NOTES:

Part #	Number on image	Usage Notes
401-020-801	12	Optional Sealmaster bearing and housing 401-207-001
404-320-145	23	May not be present. Available as an option.

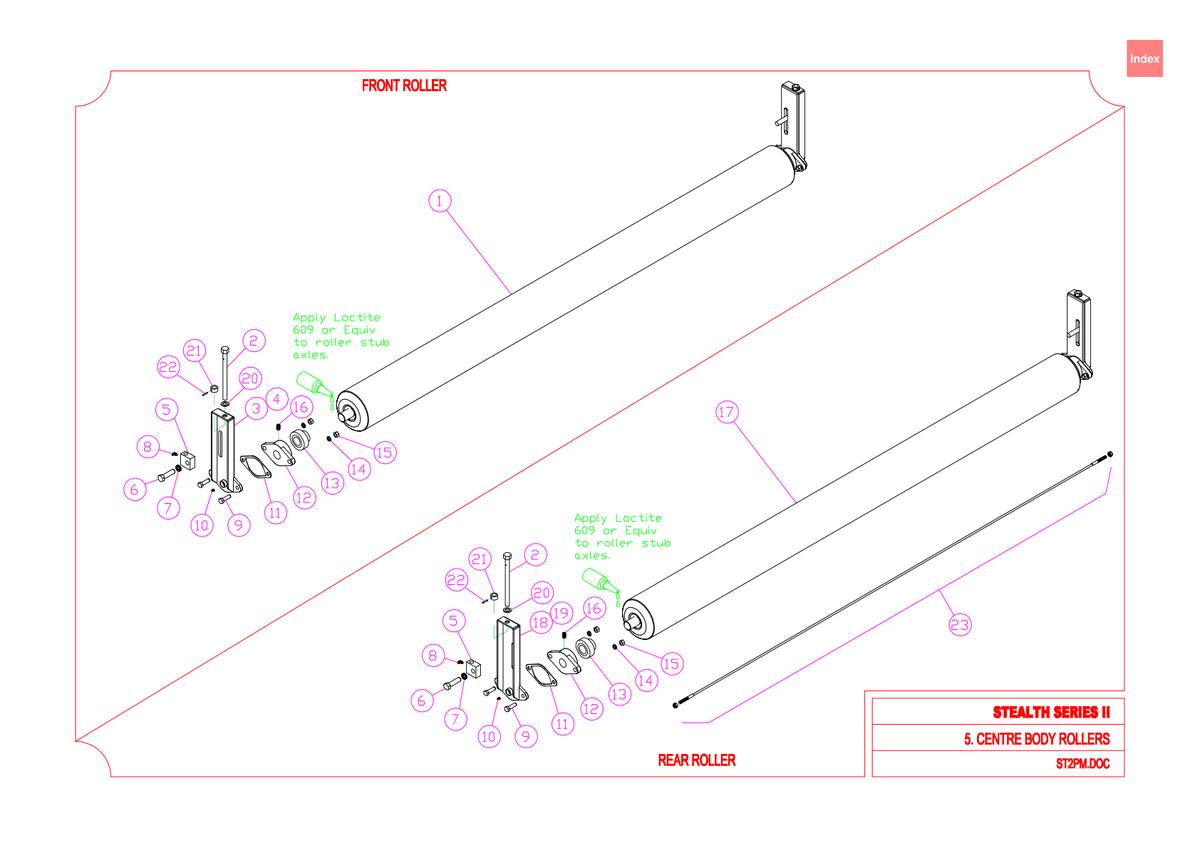

716 - Stealth S2 340 - Centre Body Rollers

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Roller Weldment - Body Front 414-320-024 More Info >	A$625.70
2	Height Adj. Screw Assy - Centre Body w Collar/Pin 245mm ST2 412-850-220 More Info >	A$48.96
3	Roller Mount Weldment - Centre Body RH Rear/LH Front ST2 412-850-100 More Info >	A$107.59
4	Roller Mount Weldment - Centre Body LH Rear/RH Front ST2 412-850-110 More Info >	A$107.59
5	Height Adjuster Block 412-330-273 More Info >	A$84.53
6	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
7	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
8	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
9	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
10	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
11	Gasket - Paper - Roller Bearing Housing 401-020-802 More Info >	A$4.82
12	Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification i See notes section for usage notes on this part 401-020-801 More Info >	A$105.00
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
16	Grub Screw 144-104-025 More Info >	A$0.74
17	Roller Weldment - Body Rear 414-320-025 More Info >	A$663.92
20	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
21	Collar - Height Adjuster 412-850-260 More Info >	A$25.37
22	Roll Pin 202-447-980 More Info >	A$2.57
23	Roller Scraper i See notes section for usage notes on this part 404-320-145 More Info >	A$68.76
