NOTES:

Part #	Number on image	Usage Notes
409-448-200	6	Refer to Ram parts listing 409-448-200
409-448-270	10	When the Stealth is fitted to the Trailmaster use part number 409-448-510 (3500mm)

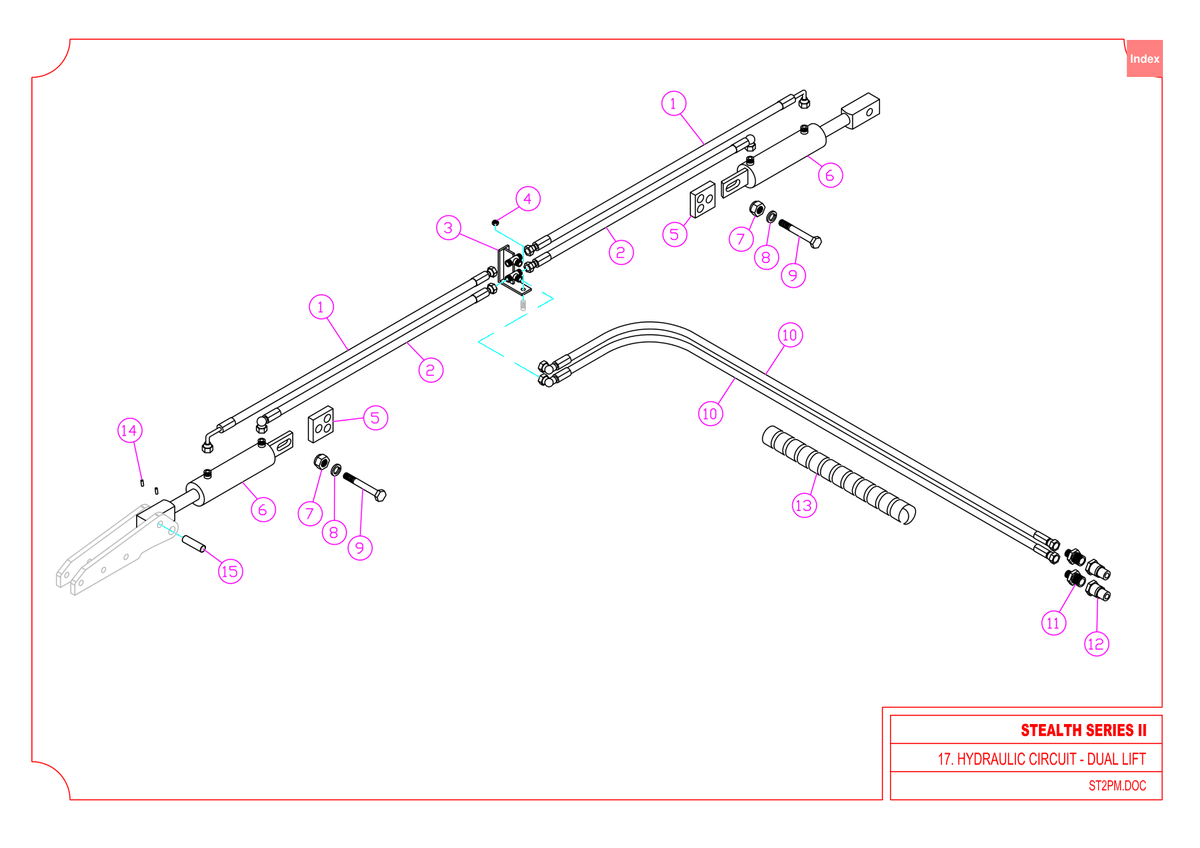

716 - Stealth S2 340 - Hydraulic System Dual Lift

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Hose Assembly 409-448-370 More Info >	A$29.64
2	Hose Assembly 409-448-360 More Info >	A$42.18
3	Tee Assembly 408-448-290 More Info >	A$123.91
4	Nut - Nyloc 307-208-053 More Info >	A$0.55
5	Damper 408-448-010 More Info >	A$26.01
6	Hydraulic Lift Ram i See notes section for usage notes on this part 409-448-200 More Info >	A$786.06
7	Nut - Plain 307-220-013 More Info >	A$1.44
8	Washer - Spring 308-200-043 More Info >	A$0.64
9	Bolt 305-620-153 More Info >	A$31.77
10	Hose Assembly i See notes section for usage notes on this part 409-448-270 More Info >	A$114.62
11	Nipple 408-448-280 More Info >	A$23.83
12	Coupling 408-447-580 More Info >	A$50.73
13	Spiral Tie - For Hydraulic Lines Plastic Black (400mm) 450-900-014 More Info >	A$12.80
14	Grub Screw 312-206-205 More Info >	A$1.18
15	Hinge Pin - Wing Lift Upper - Hyd Cyl 419-850-650 More Info >	A$63.59
