NOTES:

Part #	Number on image	Usage Notes
409-448-380	1	When the Stealth is fitted to the Trailmaster use part number 409-448-540 (4200mm)
409-448-390	2	When the Stealth is fitted to the Trailmaster use part number 409-448-530 (4060mm)
409-448-200	7	Refer to Ram parts listing 409-448-200

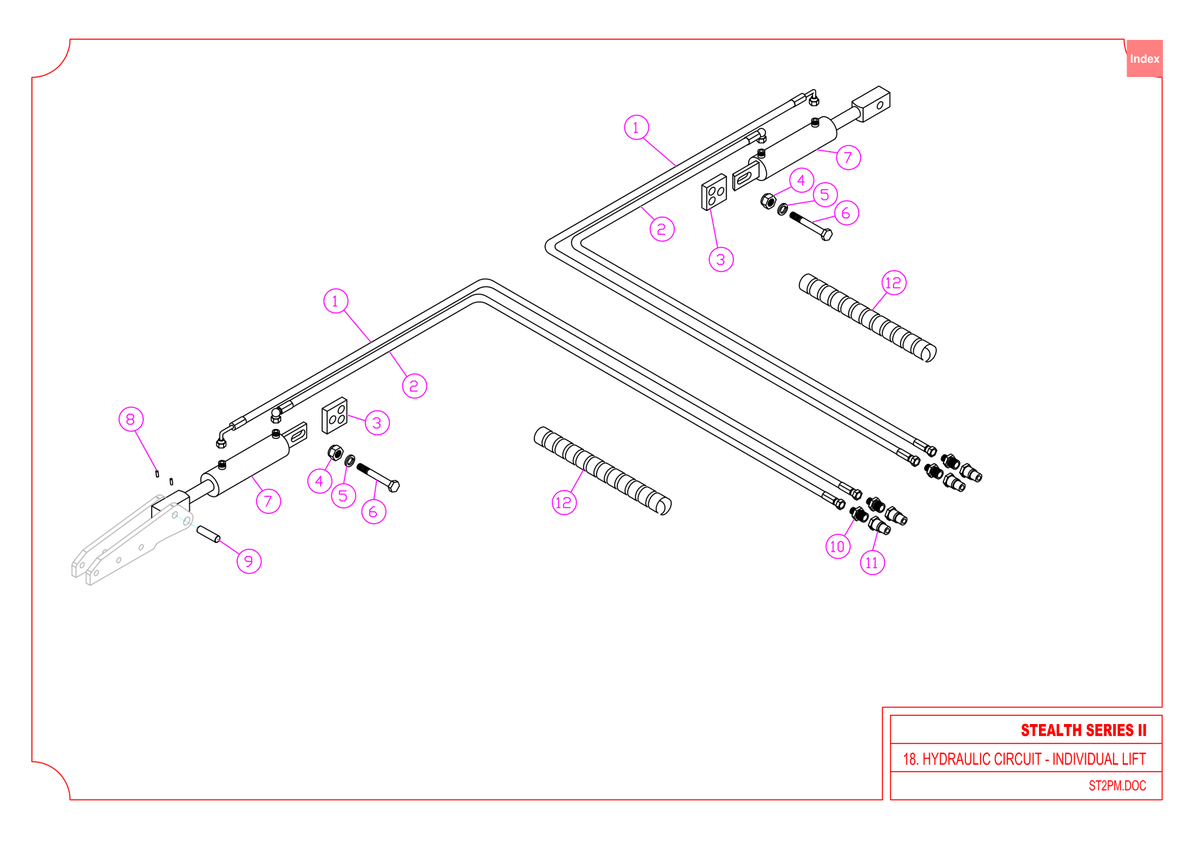

716 - Stealth S2 340 - Hydraulic System Individual Lift

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Hose Assy - Indv Lift - Hyd (Swept 90��) i See notes section for usage notes on this part 409-448-380 More Info >	A$86.71
2	Hose Assembly i See notes section for usage notes on this part 409-448-390 More Info >	A$84.35
3	Damper 408-448-010 More Info >	A$26.01
4	Nut - Plain 307-220-013 More Info >	A$1.44
5	Washer - Spring 308-200-043 More Info >	A$0.64
6	Bolt 305-620-153 More Info >	A$31.77
7	Hydraulic Lift Ram i See notes section for usage notes on this part 409-448-200 More Info >	A$786.06
8	Grub Screw 312-206-205 More Info >	A$1.18
9	Hinge Pin - Wing Lift Upper - Hyd Cyl 419-850-650 More Info >	A$63.59
10	Nipple 408-448-280 More Info >	A$23.83
11	Coupling 408-447-580 More Info >	A$50.73
12	Spiral Tie - For Hydraulic Lines Plastic Black (400mm) 450-900-014 More Info >	A$12.80
