NOTES:

Part #	Number on image	Usage Notes
504-328-042	1	Refer to Spindle Assembly parts listing 504-328-042
303-212-505	2	Spindles originally fitted with studs (450-000-066) which need to be pressed out. For ease of replacement cap screws can be used as an alternative.

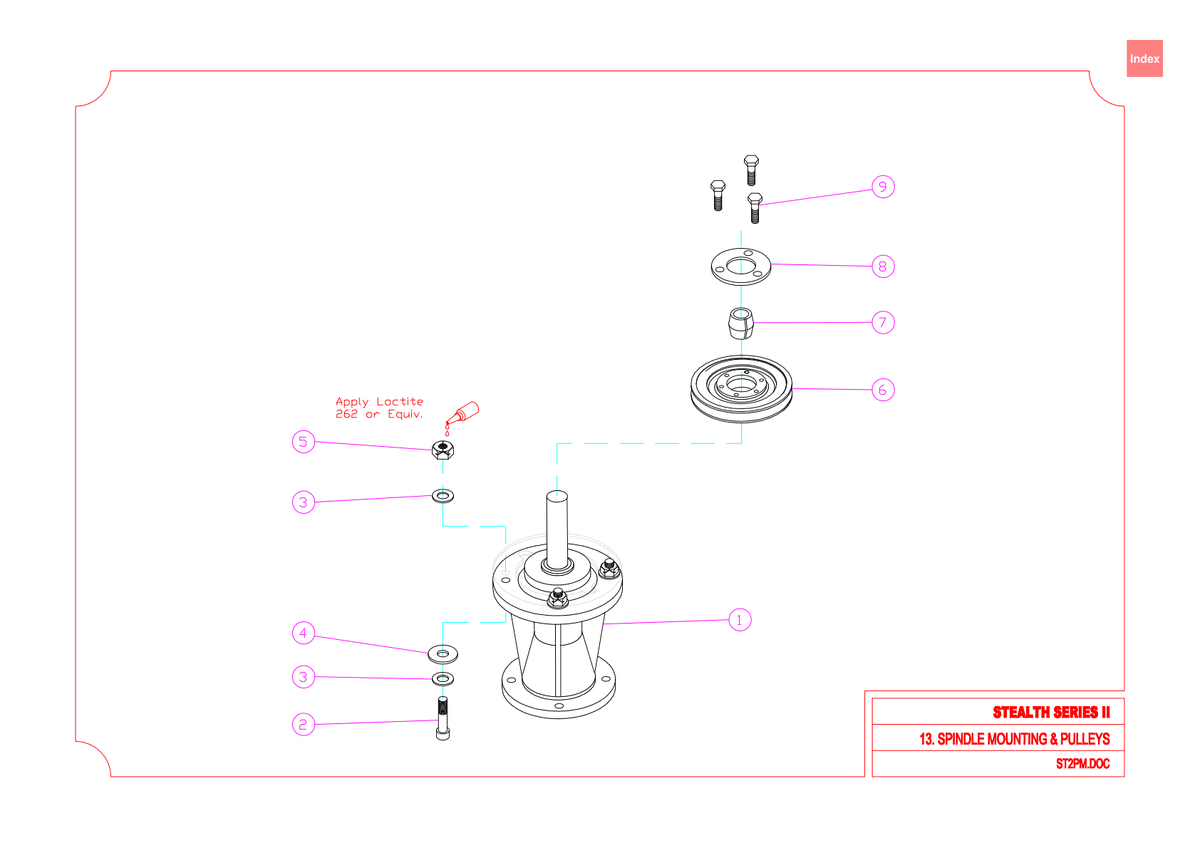

716 - Stealth S2 340 - Spindle Mounting & Pulleys

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Spindle Assembly - Type 5a Ext 50mm i See notes section for usage notes on this part 504-328-042 More Info >	A$770.09
2	Cap Screw - Socket Head - M12 x 50 - Trimax Specification i See notes section for usage notes on this part 303-212-505 More Info >	A$2.84
3	Washer - Hardened 108-071-513 More Info >	A$3.54
4	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
5	Nut - Plain 307-212-010 More Info >	A$2.01
6	Pulley 403-360-300 More Info >	A$64.20
7	Bush 402-060-320 More Info >	A$26.55
8	Retainer Ring 402-060-450 More Info >	A$16.34
9	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	A$1.31
