NOTES:

Part #	Number on image	Usage Notes
409-448-200	20	Refer to Ram parts listing 409-448-200
402-000-012	21	Replaceable wing hinge bushes introduced post S/N 716-340-001-0037 and 716-340-002-0069

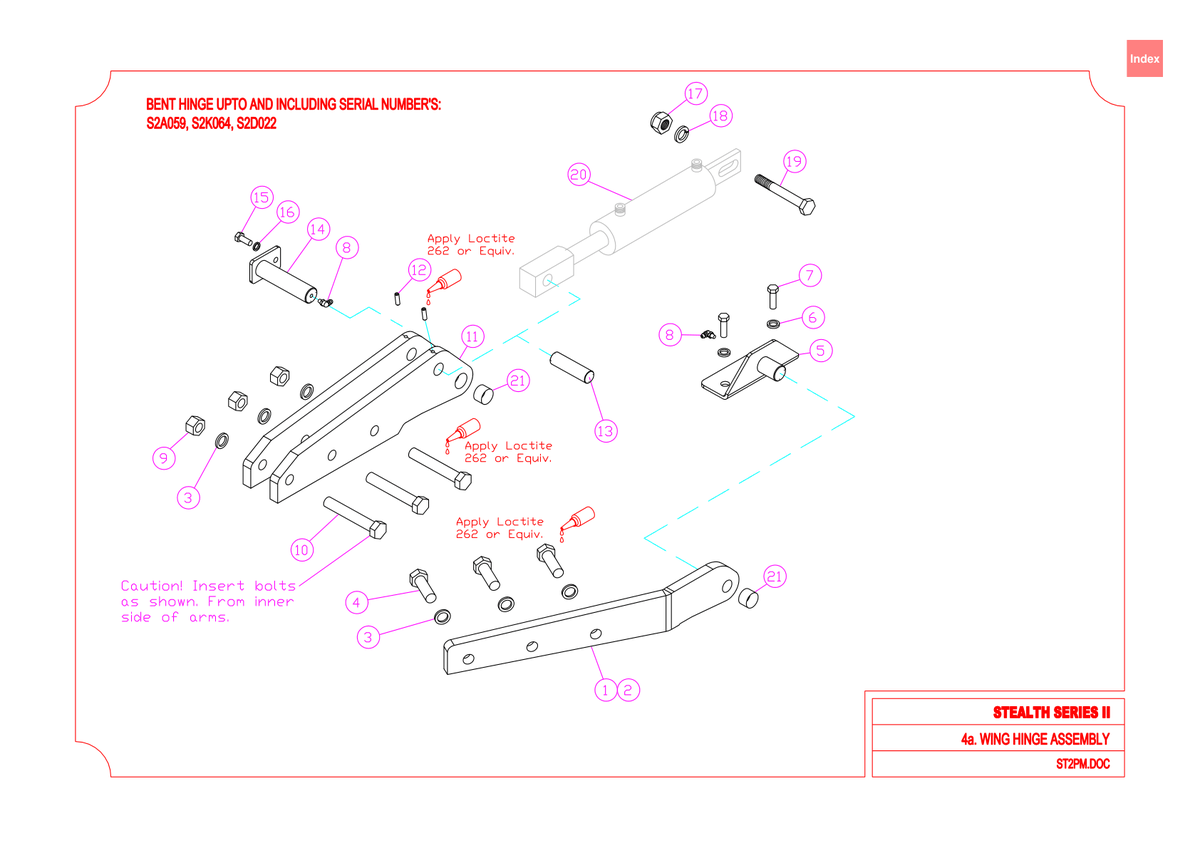

716 - Stealth S2 340 - Wing Hinge Assembly - Bent

Stealth S2 340

Grouped product items
No.	Product Name	Price
1	Hinge Arm Left Rear 417-850-031 More Info >	A$208.15
2	Hinge Arm Right Rear 417-850-032 More Info >	A$269.02
3	Washer - Spring 308-160-043 More Info >	A$0.97
4	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	A$1.83
5	Hinge Pin Weldment - Wing Rear 419-850-620 More Info >	A$109.65
6	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
7	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
8	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
9	Nut - Plain 307-216-013 More Info >	A$0.97
10	Bolt - Hex Head - M16 x 90 - Trimax Specification 301-216-903 More Info >	A$4.92
11	Hinge Arm Front 417-850-020 More Info >	A$267.50
12	Grub Screw 312-206-205 More Info >	A$1.18
13	Hinge Pin - Wing Lift Upper - Hyd Cyl 419-850-650 More Info >	A$63.59
14	Hinge Pin Weldment - Wing Front 419-850-600 More Info >	A$154.80
15	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
16	Washer - Spring 308-080-043 More Info >	A$0.06
17	Nut - Plain 307-220-013 More Info >	A$1.44
18	Washer - Spring 308-200-043 More Info >	A$0.64
19	Bolt 305-620-153 More Info >	A$31.77
20	Hydraulic Lift Ram i See notes section for usage notes on this part 409-448-200 More Info >	A$786.06
21	Bush i See notes section for usage notes on this part 402-000-012 More Info >	A$9.33
