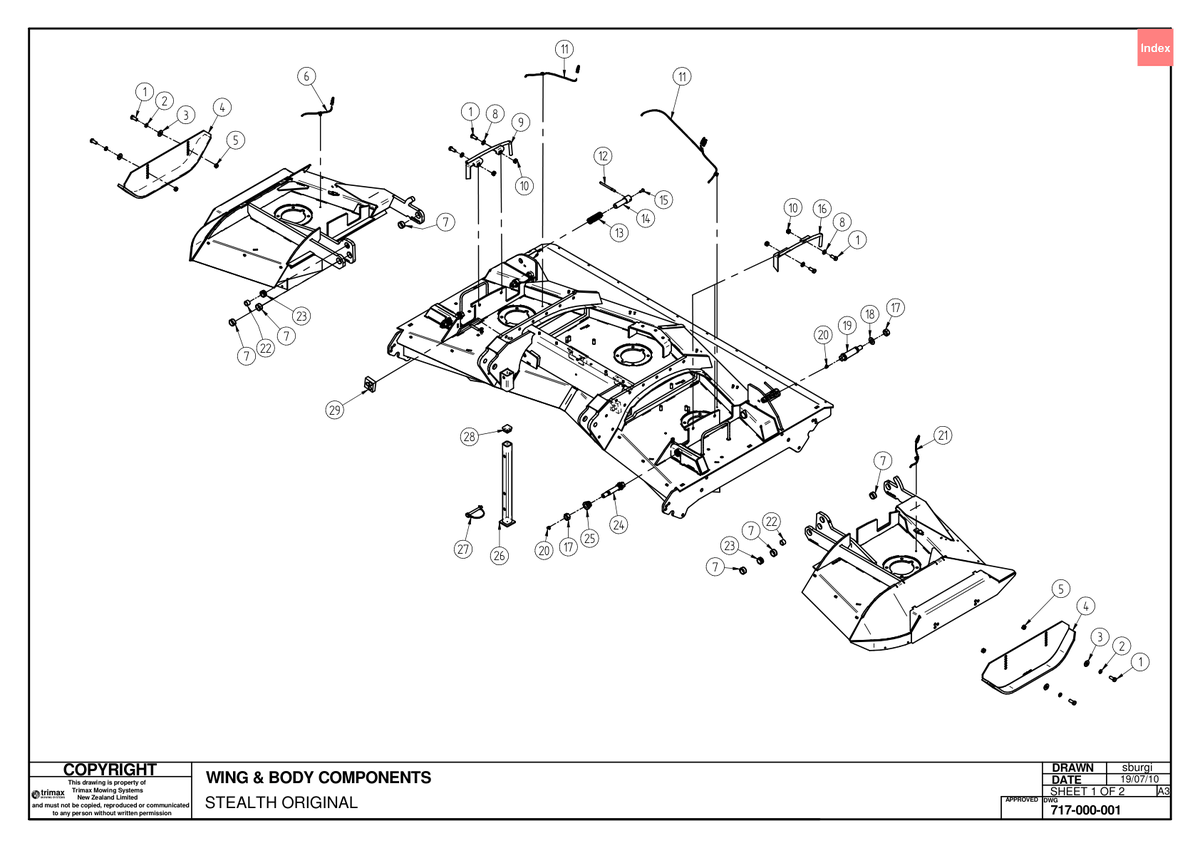

717 - Stealth Original 340 - Mower Body and Wing Components

Stealth Original 340

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
2	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
3	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
4	Skid Weldment - Rear Mount ��6" Rollers ST 412-320-112 More Info >	A$223.17
5	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
6	Grease Line - 240mm 903-007-031 More Info >	A$5.06
7	Hinge Bush 402-000-016 More Info >	A$7.37
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
9	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
12	Unlocking Lever 419-000-027 More Info >	Price on Request
13	Spring - Compression 207-000-005 More Info >	Price on Request
14	Unlocking Pin 419-000-028 More Info >	Price on Request
15	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	A$1.31
16	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
17	Nut - Plain 307-220-013 More Info >	A$1.44
18	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
19	Wing Hinge Bolt - Single Grease Groove 419-000-017 More Info >	A$226.14
20	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
22	Bush - Inner Ring 401-021-860 More Info >	A$22.20
23	Bush 402-061-050 More Info >	A$24.77
24	Wing Hinge Bolt - Dual Grease Groove 419-000-016 More Info >	A$226.75
25	Top Hat Bush - Wing Hinge 419-000-018 More Info >	A$138.81
26	Support Leg Assembly 413-480-661 More Info >	Price on Request
27	Pin 406-346-410 More Info >	A$5.96
28	Cap - Tube Insert Square 209-480-661 More Info >	A$22.42
29	Damper 408-448-010 More Info >	A$26.01
