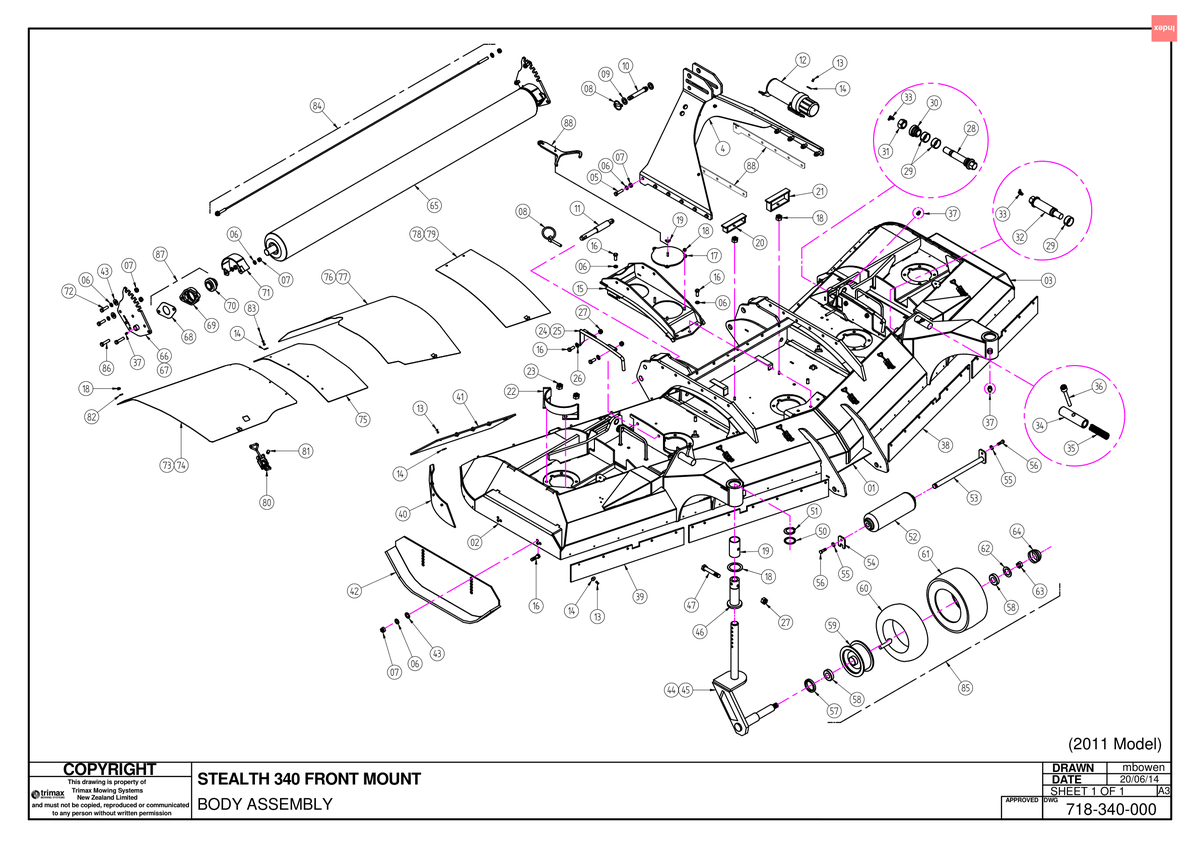

718 - Stealth Original FM 340 - Body Assembly

Stealth Original FM 340

Grouped product items
No.	Product Name	Price
4	Headstock Weldment 413-000-060 More Info >	Price on Request
5	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	A$4.48
6	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
7	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
8	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
9	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
10	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
11	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
12	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
13	Blind Rivet 213-000-004 More Info >	A$1.12
14	Washer - Fender 108-031-413 More Info >	A$0.29
17	Pulley Cover Weldment 417-000-893 More Info >	Price on Request
18	Nut - Nyloc 307-208-053 More Info >	A$0.55
19	Nut - Wing 307-208-263 More Info >	Price on Request
22	Belt Retainer Guide 417-330-460 More Info >	A$46.95
23	Nut - Half 307-212-023 More Info >	A$1.16
24	Cover/Belt Support Weldment RH 417-000-718 More Info >	Price on Request
25	Cover/Belt Support Weldment LH 417-000-719 More Info >	Price on Request
26	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
27	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
28	Wing Hinge Bolt - Dual Grease Groove 419-000-016 More Info >	A$226.75
29	Hinge Bush 402-000-016 More Info >	A$7.37
30	Top Hat Bush - Wing Hinge 419-000-018 More Info >	A$138.81
31	Nut - Plain 307-220-013 More Info >	A$1.44
32	Wing Hinge Bolt - Single Grease Groove 419-000-017 More Info >	A$226.14
33	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
36	Cap Screw 303-210-653 More Info >	Price on Request
37	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
38	Flap 410-332-013 More Info >	A$64.09
39	Flap 410-332-002 More Info >	A$28.44
42	Wing Skid Weldment - Stealth FM 412-320-113 More Info >	A$248.51
43	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
44	Front Castor Weldment - LH 412-320-051 More Info >	A$717.50
45	Front Castor Weldment - RH 412-320-052 More Info >	A$717.50
46	Boss - Pivot - Ø52xØ90x177 402-320-070 More Info >	A$467.37
47	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	A$1.86
48	Washer - Thrust Ø52.2xØ90x5 402-320-080 More Info >	A$40.47
49	Bush - Pivot 402-320-060 More Info >	A$168.46
50	Washer - Retaining Ø65xØ52.2x2 412-320-090 More Info >	A$131.31
51	Circlip/Snap Ring - External 204-820-522 More Info >	A$4.04
52	Roller - Front Anti-scalp 414-320-030 More Info >	A$822.83
54	Axle Retainer 419-170-060 More Info >	A$8.73
55	Washer - Spring 308-080-043 More Info >	A$0.06
56	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
57	Seal - Wheel Bearing 422-380-210 More Info >	A$5.35
58	Bearing - Tapered Roller 401-021-870 More Info >	A$26.75
59	Wheel Rim 416-449-013 More Info >	Price on Request
60	Tube 416-449-012 More Info >	Price on Request
61	Tyre 416-449-011 More Info >	Price on Request
62	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
63	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
64	Grease Cap - Wheel 416-449-015 More Info >	A$10.21
65	Roller Weldment - Centre Body 414-000-046 More Info >	A$908.36
66	Quadrant Weldment - RH Front - Stealth FM/Original 412-000-170 More Info >	A$112.72
67	Quadrant Weldment - LH Front - Stealth FM/Original 412-000-171 More Info >	A$112.72
68	Gasket - Paper - Roller Bearing Housing 401-020-802 More Info >	A$4.82
69	Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification 401-020-801 More Info >	A$105.00
70	Roller Bearing Assembly - Trimax Specification 401-020-701 More Info >	A$120.00
71	Bearing Protector 410-000-201 More Info >	A$86.46
72	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
75	Filler Rubber 410-330-375 More Info >	A$46.44
76	Cover 410-000-138 More Info >	A$226.39
77	Cover 410-000-139 More Info >	A$226.39
78	Cover 410-000-136 More Info >	A$151.47
79	Cover 410-000-137 More Info >	A$151.47
80	Adjustable Catch - Covers 423-080-220 More Info >	A$25.00
81	Blind Rivet 213-443-250 More Info >	A$0.80
82	Washer - Flat 308-080-016 More Info >	A$0.36
83	Blind Rivet 213-443-210 More Info >	Price on Request
84	Roller Scraper 404-320-127 More Info >	A$68.76
85	Wheel Assembly 416-449-010 More Info >	A$280.77
88	Headstock Spacer 417-001-035 More Info >	Price on Request
