NOTES:

Part #	Number on image	Usage Notes
405-201-020	46	For internal parts and service information refer to your local dealer
406-340-890	50	For internal parts and service information refer to your local dealer
418-845-000	57	For internal parts and service information refer to your local dealer
416-842-000	63	For internal parts and service information refer to your local dealer
416-842-010	64	For internal parts and service information refer to your local dealer
416-842-300	67	Tyre part number 416-842-320. For optional wide wheels refer to your local dealer
410-842-440	75	Hole spacings changed slightly from 01/09/2002
421-847-000	101	If wiring is required with light unit - specify left or right
424-100-900	111	Refer to operators manual for decal positions
418-840-350	117	This item is welded on early models
460-000-234	124	Item 124 Includes items 97,98,99,100 & 123 as Kit.

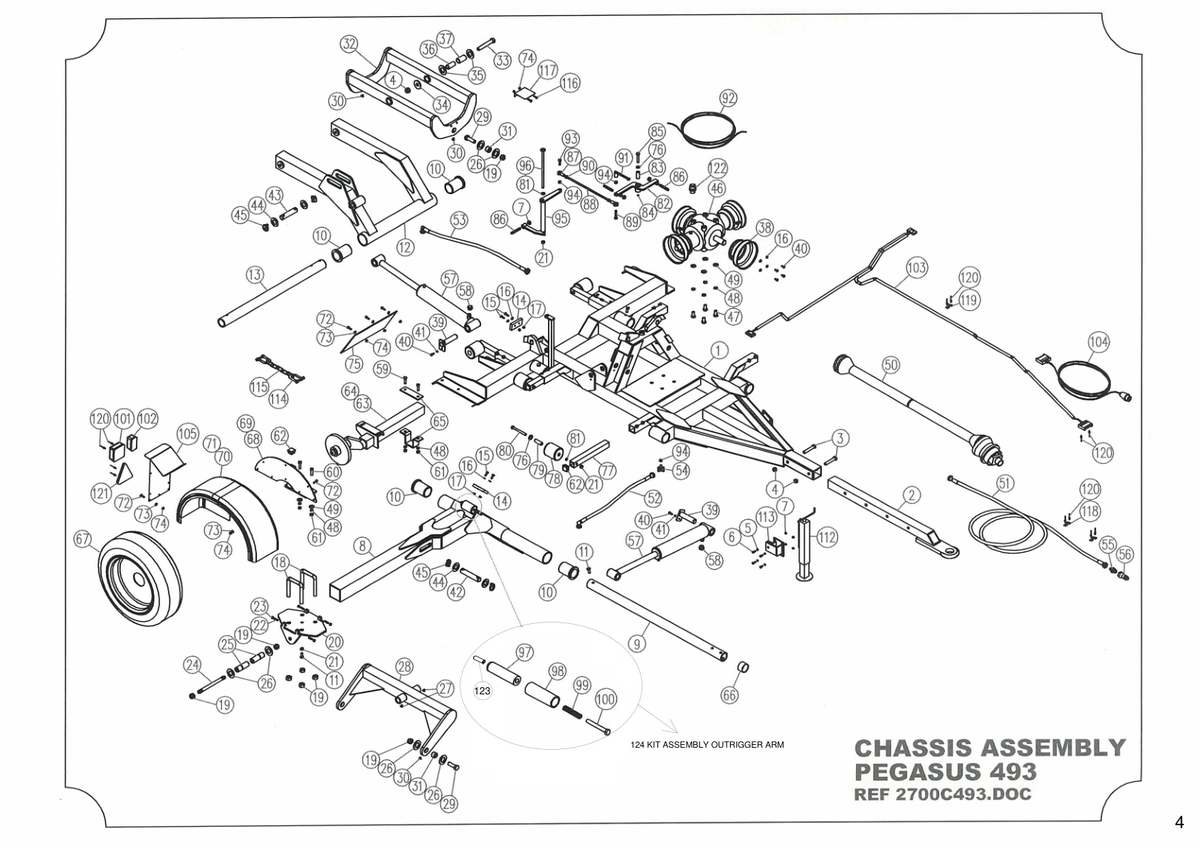

726 - Pegasus S1 - CHASSIS ASSEMBLY

Pegasus S1 493

Grouped product items
No.	Product Name	Price
2	Drawbar Weldment - Adjustable 418-840-020 More Info >	Price on Request
3	Bolt - Hex Head - M16 x 110 - Trimax Specification 301-616-113 More Info >	Price on Request
4	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
5	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
7	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
9	Pin - Outrigger Hinge - Side 419-840-210 More Info >	A$378.00
10	Bush 402-840-260 More Info >	A$206.00
11	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
13	Pin - Outrigger Hinge - Rear 419-840-200 More Info >	A$417.00
14	Buffer Pad 418-840-300 More Info >	A$32.00
15	Bolt - Hex Head - M8 x 25 - Trimax Specification 301-208-253 More Info >	A$0.30
16	Washer - Flat 308-080-013 More Info >	A$0.06
17	Nut - Nyloc 307-208-053 More Info >	A$0.55
18	U-Bolt 215-840-400 More Info >	A$83.00
19	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	A$2.25
20	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	A$521.00
21	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
23	Nut - Plain 307-208-013 More Info >	A$0.18
24	Pin - Pitch Pivot 419-840-450 More Info >	A$93.09
25	Sleeve - Pitch Tube 402-000-010 More Info >	A$201.00
26	Thrust Washer 402-840-520 More Info >	A$44.00
27	Grease Nipple - Trimax Specification 208-442-620 More Info >	A$7.08
28	Side Float Beam Weldment 418-840-070 More Info >	A$1,158.00
29	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	A$5.40
30	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
31	Hardened Bush 402-840-550 More Info >	A$44.00
33	Bolt - Hex Head - M16 x 200 - Trimax Specification 301-616-203 More Info >	A$11.80
34	Heavy Washer 402-840-560 More Info >	A$27.39
35	Washer - Pitch Pivot Rear 402-840-570 More Info >	A$35.00
36	Sleeve 402-840-580 More Info >	A$38.00
37	Bush - Pitch Pivot Rear 402-840-590 More Info >	A$53.45
38	Cone 410-440-400 More Info >	Price on Request
39	Pin Weldment - Hydraulic Cylinder 419-845-500 More Info >	A$62.00
40	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
41	Washer - Spring 308-080-043 More Info >	A$0.06
42	Pin - Side Deck Lift Upper - Hydraulic Cylinder 419-845-510 More Info >	A$73.50
44	Heavy Washer - Lift Ram Pin - Sliding 402-845-530 More Info >	Price on Request
45	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.80
46	Gearbox i See notes section for usage notes on this part 405-201-020 More Info >	A$2,347.00
47	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	A$3.22
48	Washer - Spring 308-160-043 More Info >	A$0.97
49	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
50	PTO Shaft Wide Angle i See notes section for usage notes on this part 406-340-890 More Info >	A$1,658.00
51	Hose Assembly 409-448-400 More Info >	Price on Request
52	Hose Assembly 409-448-420 More Info >	A$86.71
53	Hose Assembly 409-448-430 More Info >	Price on Request
54	Junction Assembly - Hydraulic 408-448-500 More Info >	A$236.00
55	Nipple 408-448-280 More Info >	A$23.83
56	Coupling 408-447-580 More Info >	A$50.73
57	Hydraulic Cylinder i See notes section for usage notes on this part 418-845-000 More Info >	Price on Request
58	Breather 408-448-480 More Info >	Price on Request
59	Bolt - Hex Head - M16 x 45 - Trimax Specification 301-216-453 More Info >	A$7.84
60	Bolt - Hex Head - M16 x 50 - Trimax Specification 301-216-503 More Info >	A$8.03
61	Nut - Plain 307-216-013 More Info >	A$0.97
62	Cap - Tube Insert Square 209-480-661 More Info >	Price on Request
63	Assembly - Duratorque Right i See notes section for usage notes on this part 416-842-000 More Info >	Price on Request
64	Assembly - Duratorque Left i See notes section for usage notes on this part 416-842-010 More Info >	Price on Request
66	Plastic Cap - Round Ø63 x 36 209-840-320 More Info >	A$9.10
67	Wheel Assembly - Road i See notes section for usage notes on this part 416-842-300 More Info >	Price on Request
72	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	A$0.29
73	Washer - Fender 108-041-613 More Info >	Price on Request
74	Nut - Nyloc 307-206-053 More Info >	A$0.89
75	Mud Flap - Axle i See notes section for usage notes on this part 410-842-440 More Info >	Price on Request
76	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
78	Guide Roller 418-840-150 More Info >	A$146.28
79	Bush - Guide Roller 402-840-160 More Info >	Price on Request
80	Bolt - Hex Head - M12 x 120 - Trimax Specification 301-612-123 More Info >	A$1.95
81	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
82	Release Assembly 418-840-630 More Info >	A$325.00
83	Bush 402-840-650 More Info >	A$55.00
84	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$4.70
85	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	A$1.86
86	Release Lever Pin Assembly 419-000-013 More Info >	A$40.00
87	Bearing 401-840-800 More Info >	A$26.80
88	Tie Rod - Long - Transport Lock M10 x ��12 460 418-840-640 More Info >	A$26.90
89	Bolt - Hex Head - M10 x 50 - Trimax Specification 301-210-503 More Info >	A$0.74
90	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	A$0.54
92	Release Cord - Transport Lock 404-840-690	Price on Request
93	Bolt - Hex Head M10 x 40 - Trimax Specification - 305-210-403 More Info >	A$4.00
94	Nut - Nyloc 307-210-053 More Info >	A$0.89
97	Pin - Transport Lock 419-840-700 More Info >	A$124.00
98	Bush 402-840-710 More Info >	A$90.00
99	Spring - Compression 207-840-720 More Info >	A$18.09
100	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	A$4.28
101	Trailer Lights - LED - Mudguard LH/RH i See notes section for usage notes on this part 421-847-000 More Info >	Price on Request
104	Wiring Loom Adaptor - Electrical Trailer 421-847-210 More Info >	Price on Request
111	Decal - Instruction - PTO Speed 540RPM i See notes section for usage notes on this part 424-100-900 More Info >	A$8.38
114	D-Shackle 214-446-280 More Info >	Price on Request
115	Steel Chain 901-070-001 More Info >	A$27.09
116	Bolt - Hex Head - M6 x 30 - Trimax Specification 301-206-303 More Info >	Price on Request
117	Folding i See notes section for usage notes on this part 418-840-350 More Info >	Price on Request
120	Blind Rivet 213-443-250 More Info >	A$0.80
121	Reflector - Safety Triangle 421-847-050 More Info >	A$53.32
122	Gearbox - Breather 405-207-207 More Info >	A$31.52
123	Grub Screw 312-208-255 More Info >	A$2.14
124	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	Price on Request
