NOTES:

Part #	Number on image	Usage Notes
401-020-802	10	Available as kit P/N 401-020-801 contains (Bearing assembled in Housing with Gasket)
308-120-013	29	There are 2 flat washers positioned between each spindle and the mower body (1 on each of the front capscrews) it is important to fit these washers whenever mounting the spindles
412-171-700	54	This item is fitted to the Left and Right mower decks only
417-153-140	55	This item is fitted to the Left and Right mower decks only
410-440-400	58	When ordering a replacement Safety Cone you will notice that the cones on the Left and Right hand mower decks have a cut-out for ease of cover fitment. Order these as P/N 410-440-401

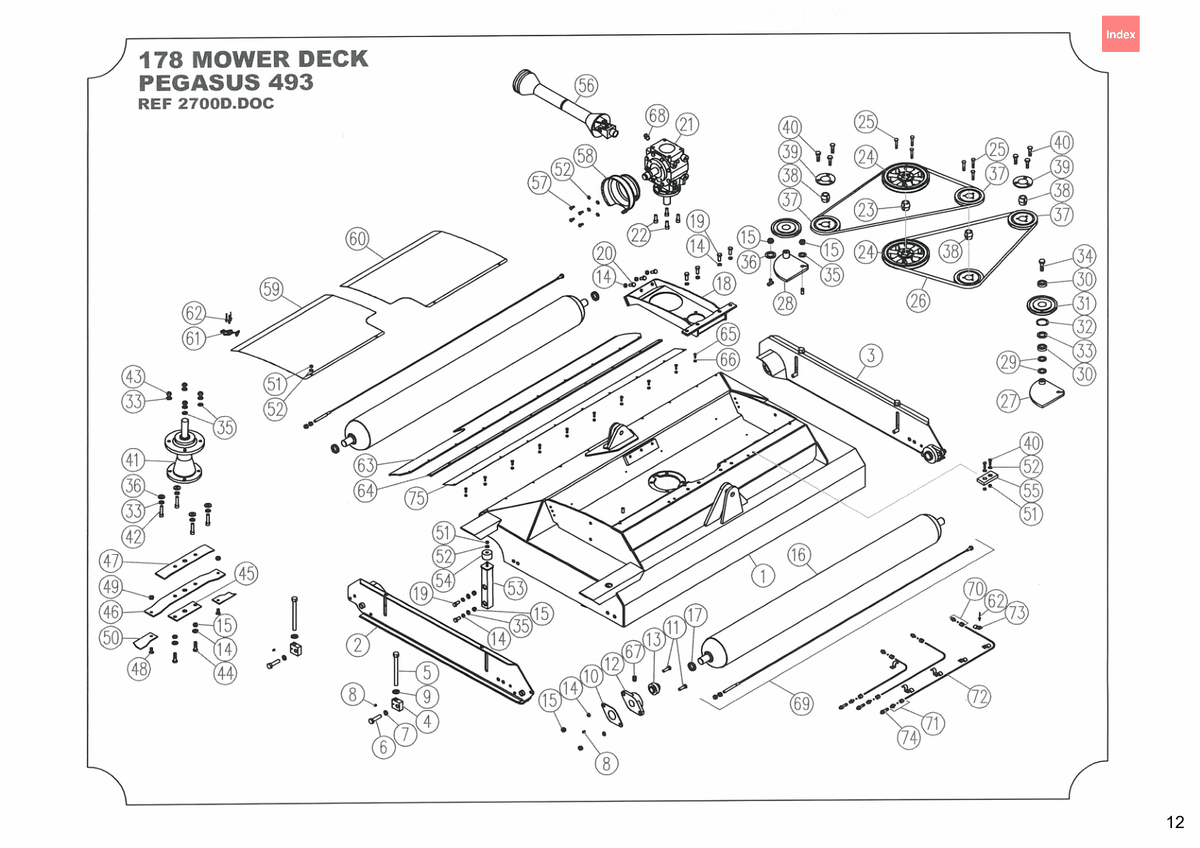

726 - Pegasus S1 - DECK ASSEMBLY

Pegasus S1 493

Grouped product items
No.	Product Name	Price
2	Side Channel Weldment - DR RH Ext "S" 178 412-841-000 More Info >	A$425.28
3	Side Channel Weldment - DR LH Ext "S" 412-841-010 More Info >	A$425.28
4	Height Adjuster Block 412-330-273 More Info >	A$84.53
5	Height Adj. Screw 412-850-251 More Info >	A$28.31
6	Bolt 301-116-553	Price on Request
7	Washer - Spring 308-160-043 More Info >	A$0.97
8	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
9	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
10	Gasket - Paper - Roller Bearing Housing i See notes section for usage notes on this part 401-020-802 More Info >	A$4.82
11	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
15	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
16	Roller Weldment 178 414-320-011 More Info >	A$737.29
18	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	A$370.78
19	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
20	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
21	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
22	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	A$2.08
23	Bush 402-060-330 More Info >	A$56.60
24	Pulley 403-360-650 More Info >	A$97.92
25	Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403 More Info >	A$0.47
26	Vee Belt - Trimax Specification 404-040-750 More Info >	A$38.00
27	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
28	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
30	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
31	Pulley - Idler 403-360-110 More Info >	A$45.86
32	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
33	Washer - Flat 108-071-413 More Info >	A$2.89
34	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	A$4.48
29	Washer - Flat M12 - Trimax Specification - i See notes section for usage notes on this part 308-120-013 More Info >	A$0.65
36	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
37	Pulley 403-360-300 More Info >	A$64.20
38	Bush 402-060-320 More Info >	A$26.55
39	Retainer Ring 402-060-450 More Info >	A$16.34
40	Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203 More Info >	A$1.31
41	Spindle Assembly - Type 5a Ext 50mm 504-328-042 More Info >	A$770.09
42	Cap Screw - Socket Head - M12 x 50 - Trimax Specification 303-212-505 More Info >	A$2.84
44	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	A$4.33
45	Clamp Plate - Blade Beam 411-322-800 More Info >	A$11.15
46	Beam - Std - Blade Mounting 411-322-750 More Info >	A$64.20
47	Backing Plate - Blade Beam 411-322-700 More Info >	A$14.34
48	Blade Bolt - D-Bolt With M10 Nyloc Nut - Classic Blade Mounting 411-322-100 More Info >	A$3.75
49	Nut - Nyloc 307-210-053 More Info >	A$0.89
50	Blade - Fling-Tip Blade - Classic (16070/U) 411-160-702 More Info >	A$7.25
51	Nut - Nyloc 307-208-053 More Info >	A$0.55
52	Washer - Flat 308-080-013 More Info >	A$0.06
54	Buffer - Round i See notes section for usage notes on this part 412-171-700 More Info >	A$19.90
55	Pad i See notes section for usage notes on this part 417-153-140 More Info >	A$27.02
57	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
58	Cone i See notes section for usage notes on this part 410-440-400 More Info >	A$29.59
61	Adjustable Catch - Covers 423-080-220 More Info >	A$25.00
62	Blind Rivet 213-443-250 More Info >	A$0.80
63	Flap 410-841-100 More Info >	A$137.13
63	Safety Flap - Deck - Rear 178 410-841-120 More Info >	A$137.13
64	Clamp Strip - Safety Flap 178 410-841-200 More Info >	A$29.17
65	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	A$0.29
66	Nut - Nyloc 307-206-053 More Info >	A$0.89
67	Grub Screw 144-104-025 More Info >	A$0.74
68	Gearbox - Breather 405-207-207 More Info >	A$31.52
69	Scraper - Roller Scraper Kit - 178cm 404-320-122 More Info >	A$68.76
70	Nipple 450-900-035 More Info >	A$9.20
71	Fitting - Special Tappered Adaptor 450-900-037 More Info >	A$18.05
72	Grease Line - 240mm 903-007-031 More Info >	A$5.06
73	Clip - Grease Line ��4.5 450-000-031 More Info >	A$2.01
74	Grease Nipple - Trimax Specification 208-442-610 More Info >	A$6.06
76	Serial Plate - Three-point Linkage Mowers Small NZ 426-442-800 More Info >	A$13.95
79	Decal - Instruction - Wash Warning Large 424-101-100 More Info >	A$8.85
80	Decal - Instruction - Grease Points - Spindles 424-101-120 More Info >	A$2.36
84	Decal - Safety - Safety Service 424-101-390 More Info >	A$11.56
