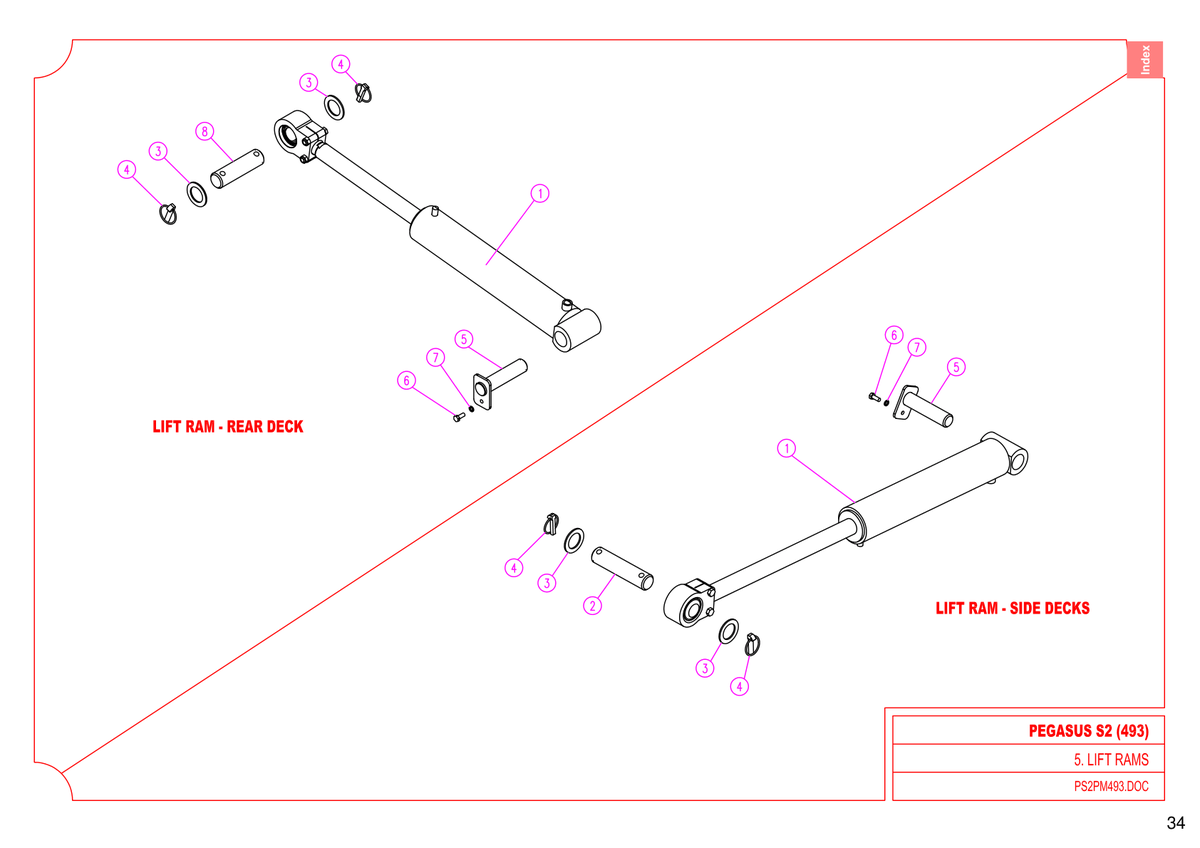

726 - Pegasus S2 - LIFT RAMS

Pegasus S2 493, Pegasus S2 610

Grouped product items
No. Image Product Name Price Quantity
1 Lift Ram Assembly [409-845-200] Lift Ram Assembly 409-845-200
A$1,474.60
2 Pin - Hydraulic Cylinder [419-845-560] Pin - Hydraulic Cylinder 419-845-560
A$83.76
3 Heavy Washer [402-845-580] Heavy Washer 402-845-580
A$14.39
4 Linch Pin - Ø7/16" x 1-3/4" [203-300-700] Linch Pin - Ø7/16" x 1-3/4" 203-300-700
A$3.05
5 Pin Weldment - Hydraulic Cylinder [419-845-500] Pin Weldment - Hydraulic Cylinder 419-845-500
A$54.27
6 Bolt - Hex Head - M8 x 20 - Trimax Specification [301-208-203] Bolt - Hex Head - M8 x 20 - Trimax Specification 301-208-203
A$1.31
7 Washer - Spring [308-080-043] Washer - Spring 308-080-043
A$0.06
8 Pin - Hydraulic Cylinder [419-845-550] Pin - Hydraulic Cylinder 419-845-550
A$53.55
