NOTES:

Part #	Number on image	Usage Notes
460-000-234	30	Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit. Item 30 Includes items 10,11,12,13 & 28 as Kit.

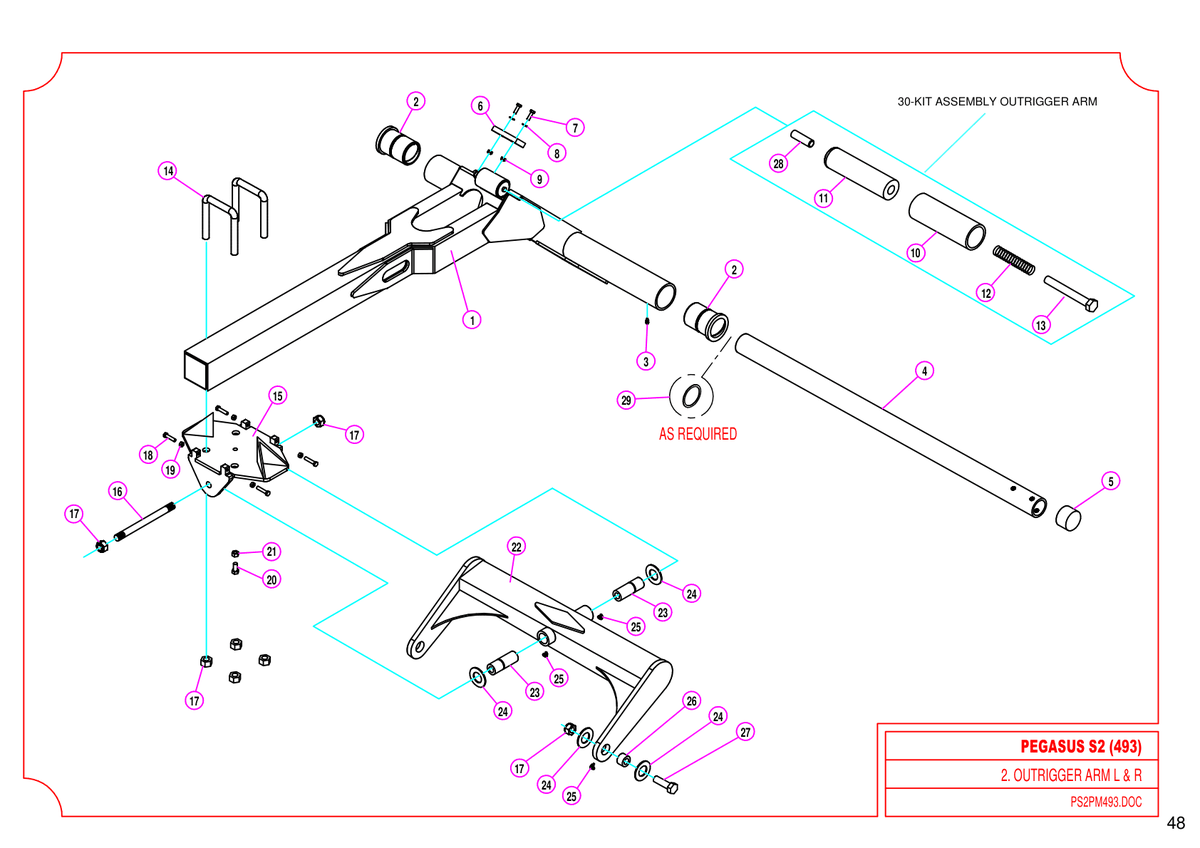

726 - Pegasus S2 - OUTRIGGER ARM L & R

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Bush 402-840-260 More Info >	A$205.83
3	Grease Nipple 208-442-600 More Info >	A$3.78
4	Pin - Outrigger Hinge - Side 419-840-210 More Info >	A$302.47
5	Cap - Round 209-840-320 More Info >	A$9.00
6	Buffer Pad 418-840-300 More Info >	A$26.90
7	Bolt 301-208-253 More Info >	A$0.29
8	Washer - Flat 308-080-013 More Info >	A$0.06
9	Nut - Nyloc 307-208-056 More Info >	A$1.18
10	Bush 402-840-710 More Info >	A$89.89
11	Pin - Transport Lock 419-840-700 More Info >	A$112.31
12	Spring - Compression 207-840-720 More Info >	A$18.09
13	Bolt 301-208-906 More Info >	A$4.28
14	U-Bolt 215-840-400 More Info >	A$75.50
15	Pitch Bracket Weldment - Side Outrigger Assembly 418-840-060 More Info >	A$417.13
16	Pin - Pitch Pivot 419-840-450 More Info >	A$93.09
17	Nut - Nyloc 307-220-053 More Info >	A$2.25
19	Nut - Plain 307-208-013 More Info >	A$0.18
20	Bolt 301-212-253 More Info >	A$4.17
21	Nut - Nyloc 307-212-053 More Info >	A$1.07
22	Side Float Beam Weldment 418-840-070 More Info >	A$967.24
23	Sleeve - Pitch Tube 402-000-010 More Info >	A$200.55
24	Thrust Washer 402-840-520 More Info >	A$43.90
25	Grease Nipple 208-442-650 More Info >	A$6.43
26	Hardened Bush 402-840-550 More Info >	A$44.14
27	Bolt 301-220-753 More Info >	A$4.88
28	Grub Screw 312-208-255 More Info >	A$2.14
29	Shim 418-000-001 More Info >	A$48.49
30	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	Price on Request
