NOTES:

Part #	Number on image	Usage Notes
460-000-234	25	Item 25 Includes items 5,6,7,8 & 23 as Kit. Item 25 Includes items 5,6,7,8 & 23 as Kit. Item 25 Includes items 5,6,7,8 & 23 as Kit.

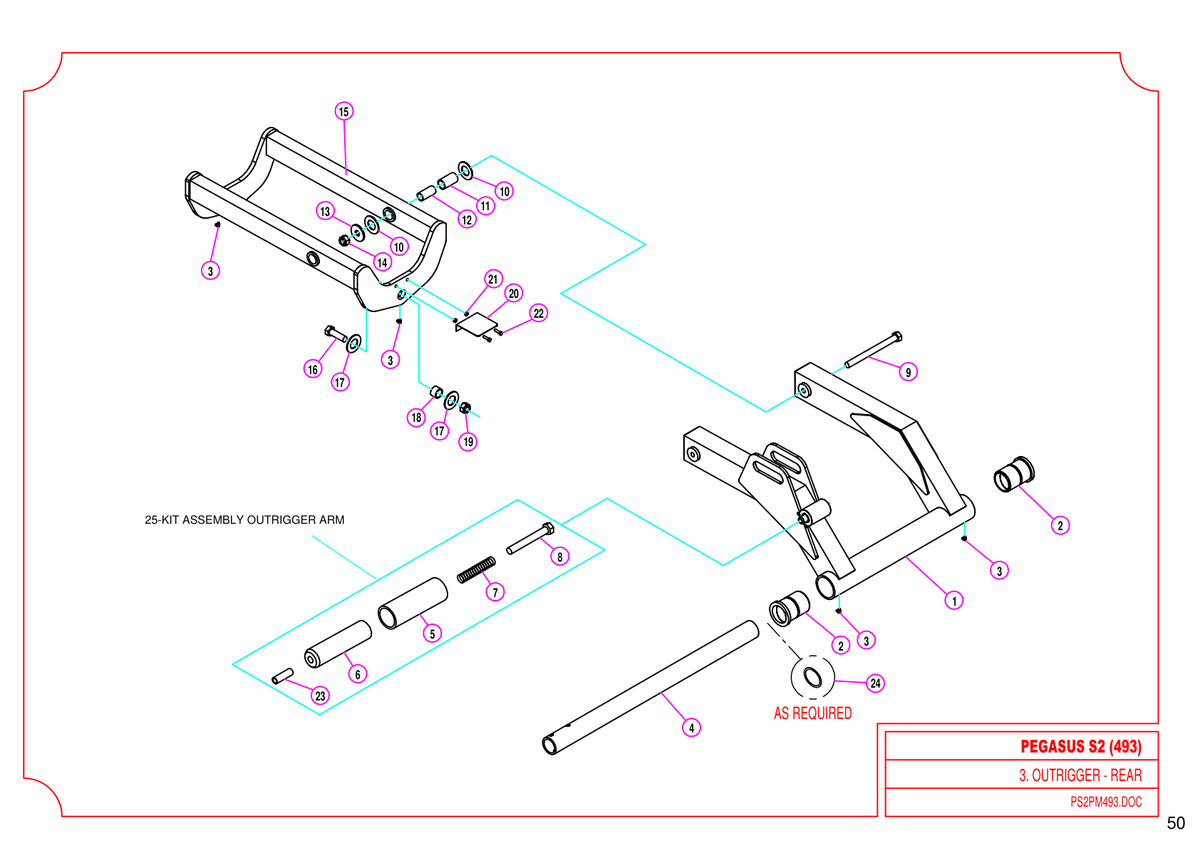

726 - Pegasus S2 - OUTRIGGER - REAR

Pegasus S2 493, Pegasus S2 610

Grouped product items
No.	Product Name	Price
2	Bush 402-840-260 More Info >	A$206.00
3	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
4	Pin - Outrigger Hinge - Rear 419-840-200 More Info >	A$417.00
5	Bush 402-840-710 More Info >	A$90.00
6	Pin - Transport Lock 419-840-700 More Info >	A$124.00
7	Spring - Compression 207-840-720 More Info >	A$18.09
8	Bolt - Bolt - Hex Head - M8 x 90- Trimax Specification 301-208-906 More Info >	A$4.28
9	Bolt - Hex Head - M16 x 200 - Trimax Specification 301-616-203 More Info >	A$11.80
10	Washer - Pitch Pivot Rear 402-840-570 More Info >	A$35.00
11	Bush - Pitch Pivot Rear 402-840-590 More Info >	A$53.45
12	Sleeve 402-840-580 More Info >	A$38.00
13	Heavy Washer 402-840-560 More Info >	A$27.39
14	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
15	Rear Float Beam Weldment 418-844-050 More Info >	A$1,424.31
16	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	A$5.40
17	Thrust Washer 402-840-520 More Info >	A$44.00
18	Hardened Bush 402-840-550 More Info >	A$44.00
19	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	A$2.25
20	Folding 418-840-350 More Info >	Price on Request
21	Nut - Nyloc 307-206-053 More Info >	A$0.89
22	Bolt - Hex Head - M6 x 30 - Trimax Specification 301-206-303 More Info >	Price on Request
23	Grub Screw 312-208-255 More Info >	A$2.14
24	Shim 418-000-001 More Info >	A$48.49
25	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	Price on Request
