NOTES:

Part #	Number on image	Usage Notes
504-000-133	27	The new spindle with keyway is backwards compatible with prior machines

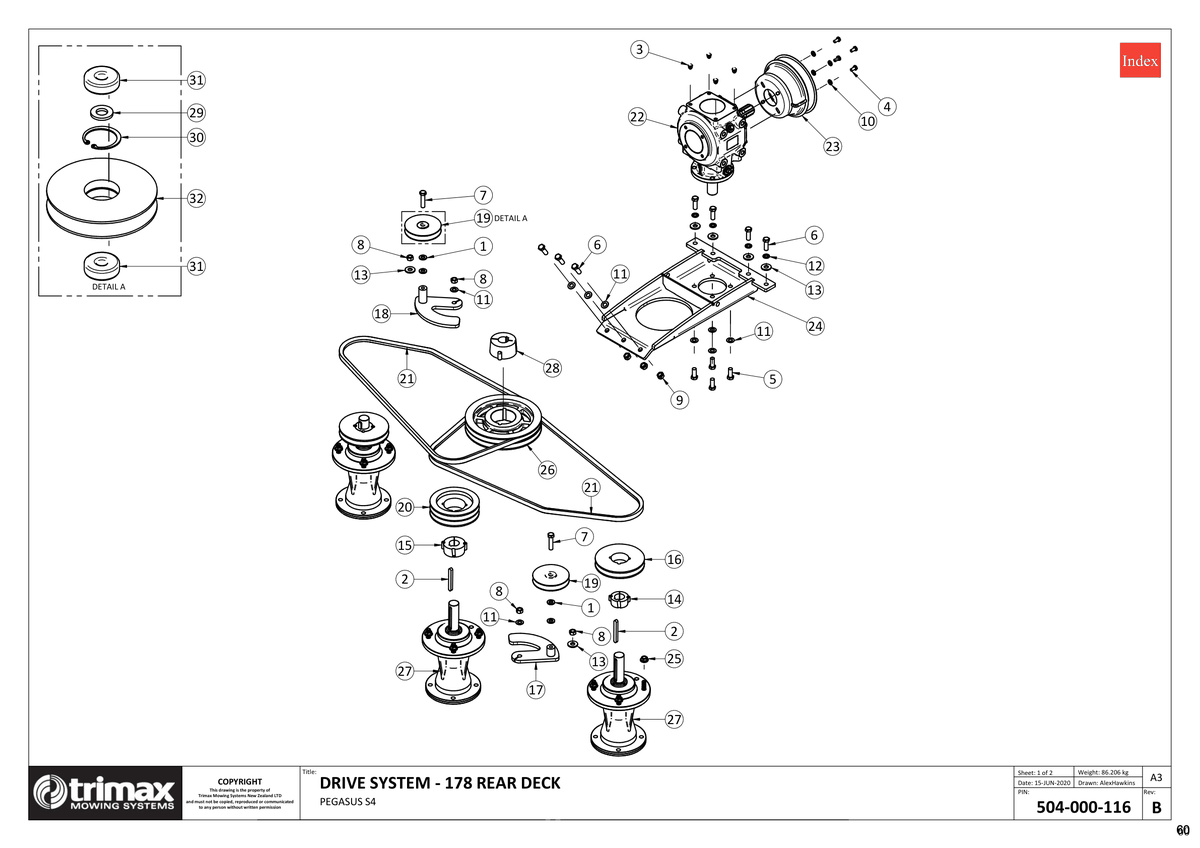

727-722 - Pegasus S4 - Drive System - Rear - Taper Pulley

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	A$3.54
2	Key - 10 x 8 x 85 DIN6885 Form A 205-000-003 More Info >	Price on Request
3	Blanking Plug 209-900-012 More Info >	A$0.30
4	Bolt 301-208-163 More Info >	A$0.54
5	Bolt 301-212-303 More Info >	A$3.36
6	Bolt 301-212-353 More Info >	A$3.86
7	Bolt 301-212-503 More Info >	A$4.48
8	Nut - Plain 307-212-013 More Info >	A$0.80
9	Nut - Nyloc 307-212-053 More Info >	A$1.07
10	Washer - Flat 308-080-013 More Info >	A$0.06
11	Washer - Flat 308-120-013 More Info >	A$0.65
12	Washer - Spring 308-120-043 More Info >	A$0.65
13	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
14	Bush - Taper Lock 402-000-078 More Info >	A$22.12
15	Bush - Taper Lock 402-000-090 More Info >	A$30.09
16	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
17	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
18	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
19	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
20	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
21	Vee Belt 404-040-750 More Info >	A$38.00
22	Gearbox 405-200-720 More Info >	A$1,331.62
23	Cone - PTO Holes Punched 410-440-402 More Info >	A$29.59
24	Gearbox Mount Weldment 417-001-197 More Info >	A$226.94
25	Nut - Flange 450-000-078 More Info >	A$3.82
26	Pulley - Taper Lock ��236 SPB x 2 403-000-128 More Info >	A$154.26
27	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	A$909.50
28	Bush - Taper Lock 402-060-820 More Info >	A$80.72
30	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
31	Bearing 401-021-900 More Info >	A$15.00
32	Pulley - Idler 403-360-110 More Info >	A$45.86
