Parts Shop

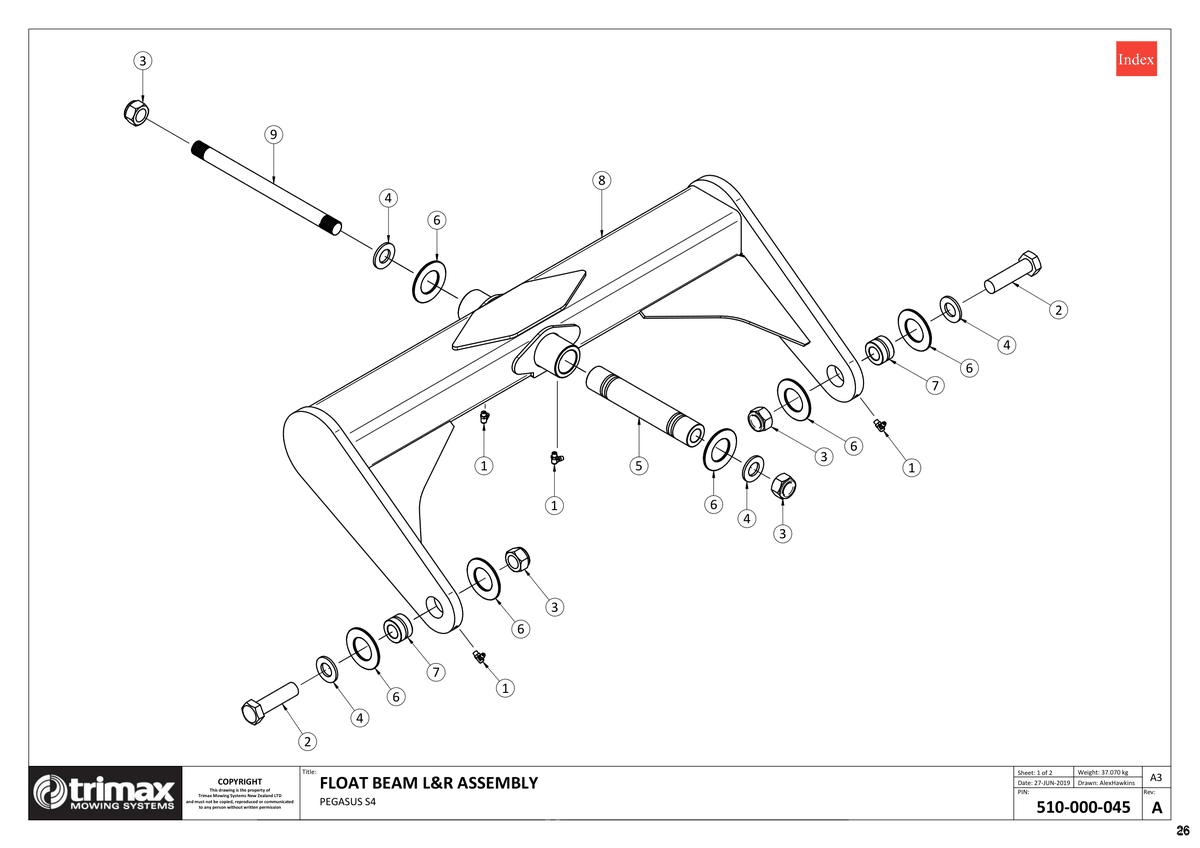

727-722 - Pegasus S4 - Float Beam - LH & RH

Pegasus S4 722

Grouped product items
No. Image Product Name Price Quantity
1 Grease Nipple [208-442-650] Grease Nipple 208-442-650
A$6.43
2 Bolt [301-220-753] Bolt 301-220-753
A$4.88
3 Nut - Nyloc [307-220-053] Nut - Nyloc 307-220-053
A$2.25
4 Washer - Heavy Flat [308-200-064] Washer - Heavy Flat 308-200-064
A$1.44
5 Sleeve - Pitch Tube [402-000-010] Sleeve - Pitch Tube 402-000-010
A$200.55
6 Thrust Washer [402-840-520] Thrust Washer 402-840-520
A$43.90
7 Hardened Bush [402-840-550] Hardened Bush 402-840-550
A$44.14
8 Side Float Beam Weldment [418-840-070] Side Float Beam Weldment 418-840-070
A$967.24
9 Pin - Pitch Pivot [419-840-450] Pin - Pitch Pivot 419-840-450
A$93.09
