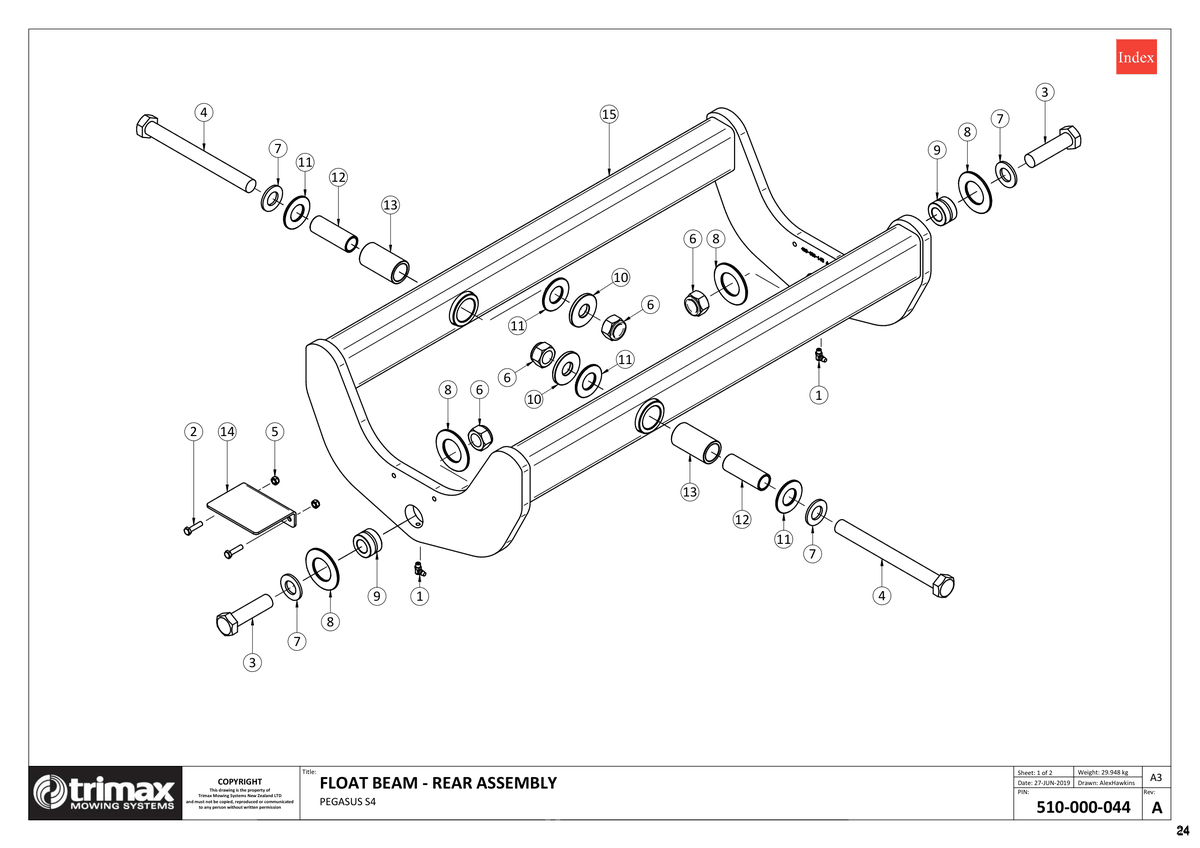

727-722 - Pegasus S4 - Float Beam - Rear

Pegasus S4 722

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
2	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	A$0.29
3	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	A$4.88
4	Bolt - Hex Head - M20 x 200 - Trimax Specification 301-620-203 More Info >	A$15.68
5	Nut - Nyloc 307-206-053 More Info >	A$0.89
6	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	A$2.25
7	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
8	Thrust Washer 402-840-520 More Info >	A$43.90
9	Hardened Bush 402-840-550 More Info >	A$44.14
10	Pitch Pivot Washer Rear 402-840-561 More Info >	A$21.21
11	Washer - Pitch Pivot Rear 402-840-570 More Info >	A$35.11
12	Sleeve - Pitch Pivot Rear 402-840-581 More Info >	A$36.31
13	Bush - Pitch Pivot Rear 402-840-590 More Info >	A$53.45
14	Folding 418-840-350 More Info >	A$30.26
15	Rear Float Beam Weldment 418-844-050 More Info >	A$1,424.31
