NOTES:

Part #	Number on image	Usage Notes
504-328-042	15	504-328-042 greaseable spindle is obsolete and is replaced by 504-000-133 non-greaseable Spindle. Individual replaceable parts are still available for greaseable spindles from Trimax.

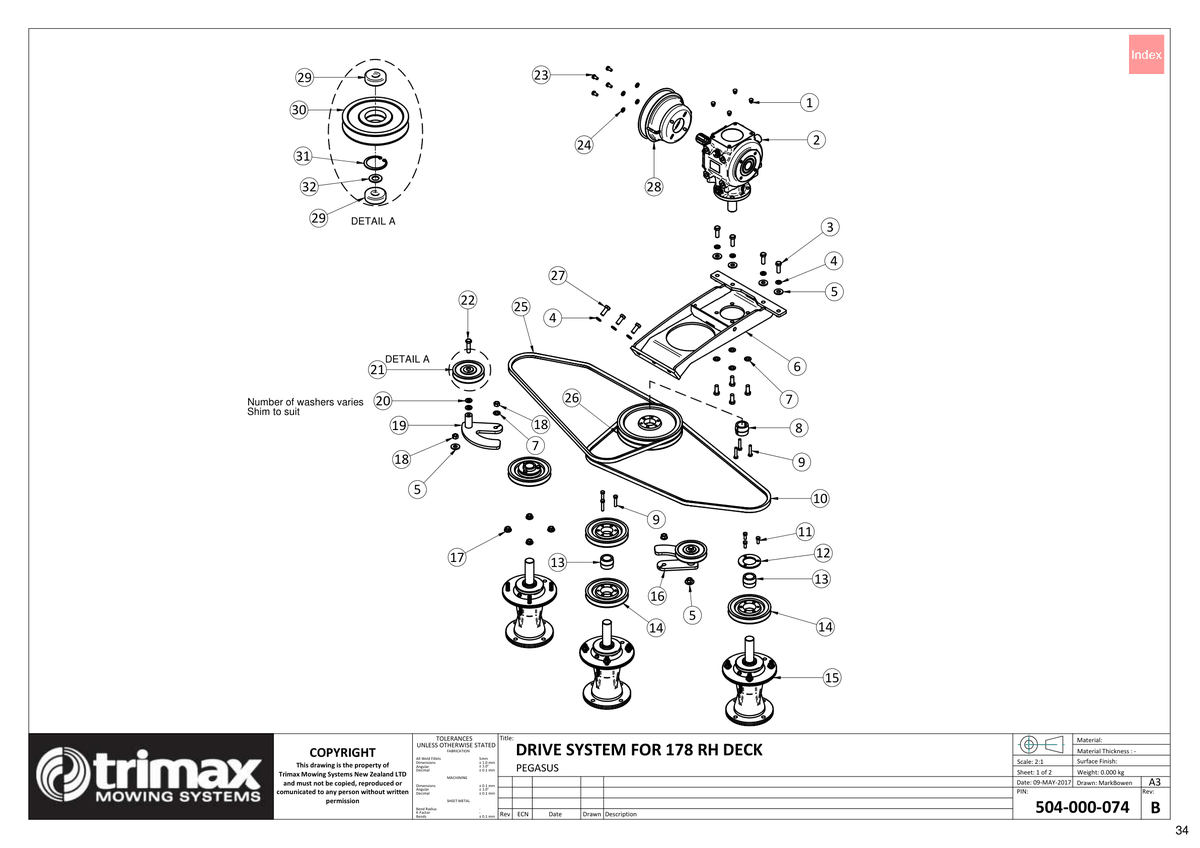

727 - Pegasus S3 - 178 RH DRIVE SYSTEM - 504-000-074

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Blanking Plug - M12 209-900-012 More Info >	A$0.30
2	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,331.62
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
5	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
6	Gearbox Mount Weldment - Deck Assembly 417-841-500 More Info >	A$370.78
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
8	Bush 402-060-330 More Info >	A$56.60
9	Set Screw 313-208-403 More Info >	A$2.25
11	Set Screw 313-208-203 More Info >	Price on Request
12	Retainer Ring 402-060-450 More Info >	A$16.34
13	Bush 402-060-320 More Info >	A$26.55
14	Pulley 403-360-300 More Info >	A$64.20
15	Spindle Assembly - Type 5a Ext 50mm i See notes section for usage notes on this part 504-328-042 More Info >	A$770.09
16	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
17	Nut - Flange 450-000-078 More Info >	A$3.82
18	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
19	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
20	Washer - Hardened 108-071-513 More Info >	A$3.54
21	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
22	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	A$4.33
23	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
24	Washer - Flat 308-080-016 More Info >	A$0.36
10	Vee Belt - Trimax Specification 404-040-750 More Info >	A$38.00
26	Pulley 403-360-650 More Info >	A$97.92
27	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
28	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	A$60.17
29	Bearing - Trimax Specification - 401-021-900 More Info >	A$15.00
30	Pulley - Idler 403-360-110 More Info >	A$45.86
31	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
32	Washer - Flat 108-071-413 More Info >	A$2.89
