NOTES:

Part #	Number on image	Usage Notes
214-446-280	2	Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025 Sold as an assembly P/N 506-000-025

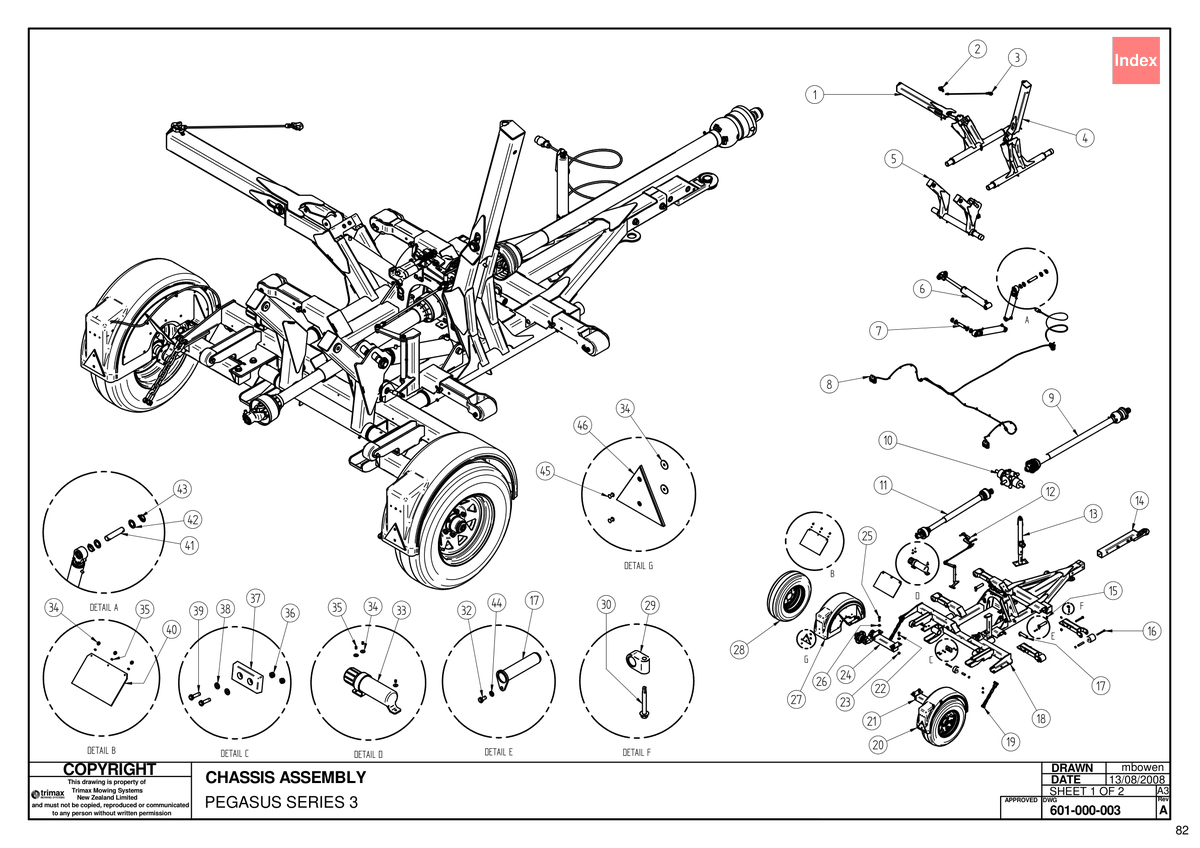

727 - Pegasus S3 - CHASSIS ASSY. - 601-000-003

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
2	D-Shackle i See notes section for usage notes on this part 214-446-280 More Info >	Price on Request
6	Lift Ram Assembly 409-845-200 More Info >	A$1,475.00
7	Pin - Hydraulic Cylinder 419-845-550 More Info >	A$67.00
9	PTO Shaft Wide Angle 406-340-890 More Info >	A$1,658.00
10	Gearbox 405-201-020 More Info >	A$2,347.00
11	PTO Shaft 406-340-570 More Info >	A$350.00
13	Parking Jack Assembly 418-000-217 More Info >	A$268.00
15	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
17	Pin Weldment - Hydraulic Cylinder 419-845-500 More Info >	A$62.00
19	Check Chain Assembly 404-000-006 More Info >	Price on Request
20	Mudguard Assembly - Pegasus S4 RH 506-000-014 More Info >	A$390.00
21	Axle Assembly - Braked/Splined - RH 416-842-740 More Info >	A$2,176.00
22	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	A$2.00
23	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
24	Axle Assembly - Braked/Splined - LH 416-842-750 More Info >	A$2,176.00
25	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	A$2.41
26	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
27	Mudguard Assembly - Pegasus S4 LH 506-000-013 More Info >	A$390.00
28	Wheel Assembly - Road 416-842-620 More Info >	A$679.00
29	Clamp - Hydraulic Hose 408-000-037 More Info >	A$4.40
31	Washer - Spring 308-100-043 More Info >	A$0.65
32	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
33	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
34	Washer - Fender 108-031-413 More Info >	A$0.29
35	Blind Rivet 213-000-004 More Info >	A$1.12
36	Nut - Nyloc 307-208-053 More Info >	A$0.55
37	Buffer Pad 418-840-300 More Info >	A$32.00
38	Washer - Flat 308-080-013 More Info >	A$0.06
39	Bolt - Hex Head - M8 x 30 - Trimax Specification 301-208-303 More Info >	A$0.60
40	Mud Flap - Axle 410-842-440 More Info >	Price on Request
41	Pin - Hydraulic Cylinder 419-845-560 More Info >	A$83.76
42	Heavy Washer 402-845-580 More Info >	A$15.80
43	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.80
44	Washer - Spring 308-080-043 More Info >	A$0.06
45	Blind Rivet 213-000-005 More Info >	A$0.60
46	Reflector - Safety Triangle 421-847-050 More Info >	A$53.32
