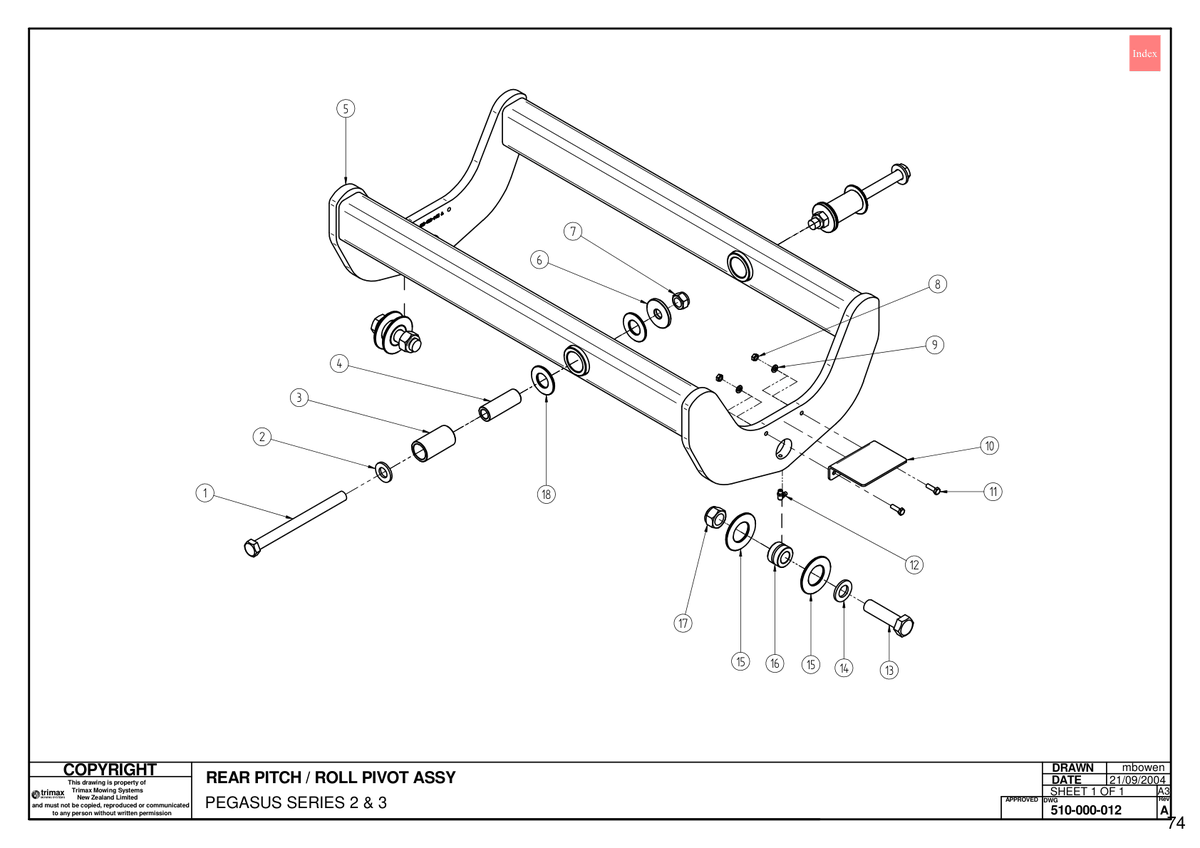

727 - Pegasus S3 - REAR PITCH / ROLL PIVOT ASSY 510-000-012

Pegasus S3 493, Pegasus S3 610

Grouped product items
No.	Product Name	Price
1	Bolt - Hex Head - M16 x 200 - Trimax Specification 301-616-203 More Info >	A$11.80
2	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
3	Bush - Pitch Pivot Rear 402-840-590 More Info >	A$53.45
4	Sleeve 402-840-580 More Info >	A$30.43
5	Rear Float Beam Weldment 418-844-050 More Info >	A$1,424.31
6	Heavy Washer 402-840-560 More Info >	A$27.39
7	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
9	Washer - Spring 308-060-043 More Info >	A$0.17
10	Folding 418-840-350 More Info >	A$30.26
11	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	A$0.29
12	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
13	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	A$4.88
14	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
15	Thrust Washer 402-840-520 More Info >	A$43.90
16	Hardened Bush 402-840-550 More Info >	A$44.14
17	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	A$2.25
18	Washer - Pitch Pivot Rear 402-840-570 More Info >	A$35.11
