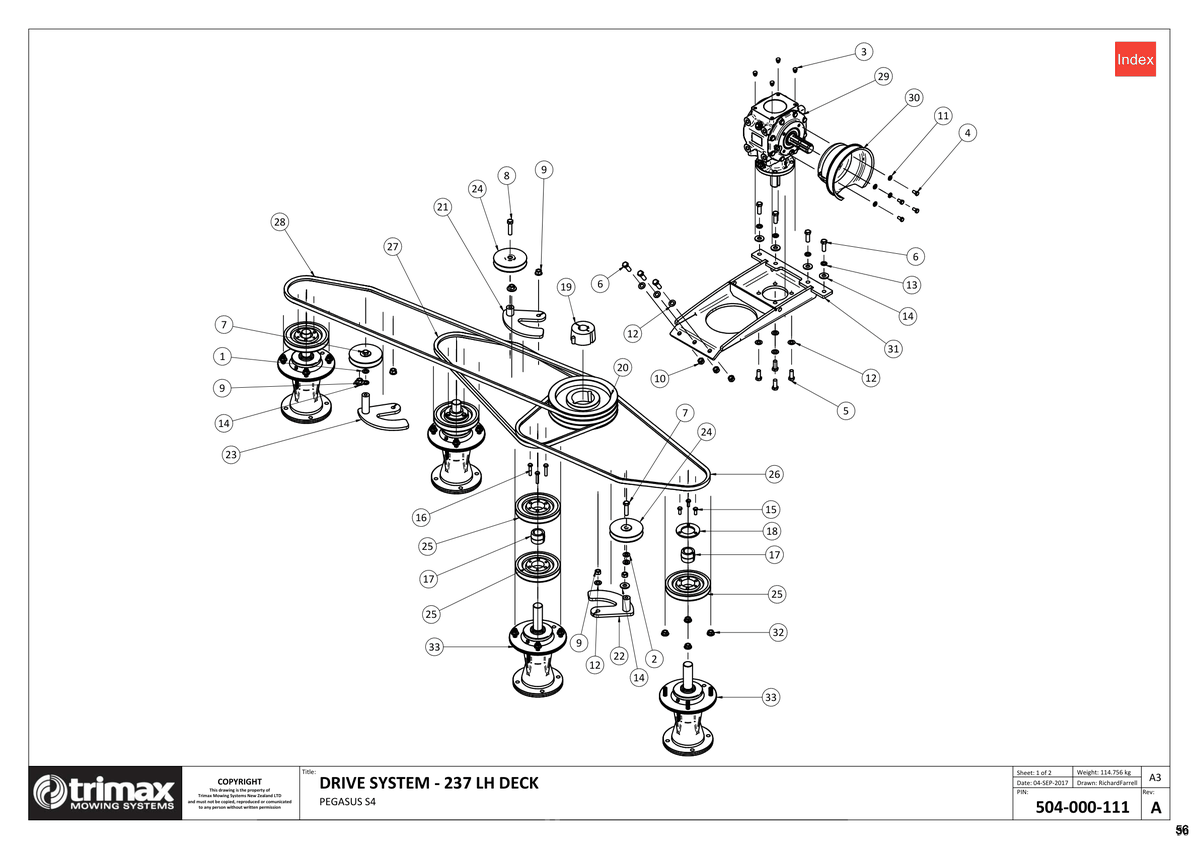

727 - Pegasus S4 610 - Drive System 237 LH - Biloc

Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Flat 108-071-413 More Info >	A$2.89
2	Washer - Hardened 108-071-513 More Info >	A$3.54
3	Blanking Plug - M12 209-900-012 More Info >	Price on Request
4	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
5	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
6	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
7	Bolt - Hex Head - M12 x 45 - Trimax Specification 301-212-453 More Info >	A$4.33
8	Bolt - Hex Head M12 x 50 - Trimax Specification - 301-212-503 More Info >	A$4.48
9	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
10	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
11	Washer - Flat 308-080-013 More Info >	A$0.06
12	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
13	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
14	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
15	Set Screw 313-208-203 More Info >	Price on Request
16	Set Screw 313-208-403 More Info >	A$2.25
17	Bush 402-060-320 More Info >	A$26.55
18	Retainer Ring 402-060-450 More Info >	A$16.34
19	Bush - Taper Lock 402-060-820 More Info >	A$80.72
20	Pulley 403-000-038 More Info >	A$245.69
21	Idler Tower Incl Base 403-330-423 More Info >	A$72.32
22	Idler Tower Incl Base 403-330-432 More Info >	A$75.39
23	Idler Tower Incl Base 403-330-442 More Info >	A$78.42
24	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
25	Pulley 403-360-300 More Info >	A$64.00
26	Vee Belt - Trimax Specification - 404-040-750 More Info >	A$38.00
28	Vee Belt - Trimax Specification 404-041-150 More Info >	A$60.00
29	Gearbox - Standard Rotation - 540rpm 405-200-720 More Info >	A$1,332.00
30	Cone - PTO Shield w/ Cut Out 410-440-401 More Info >	A$60.17
31	Gearbox Mount Weldment 417-001-197 More Info >	Price on Request
32	Nut - Flange 450-000-078 More Info >	A$3.82
33	Spindle Assembly - Steadfast 504-000-106 More Info >	Price on Request
