NOTES:

Part #	Number on image	Usage Notes
404-000-125	24	All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope All Machines after serial number 727-493-400-033 / 727-610-410-044 use this part for unlock Rope
406-000-084	27	PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal PTO Shaft 406-000-084 includes PTO Shaft 406-340-890 and PTO Decal

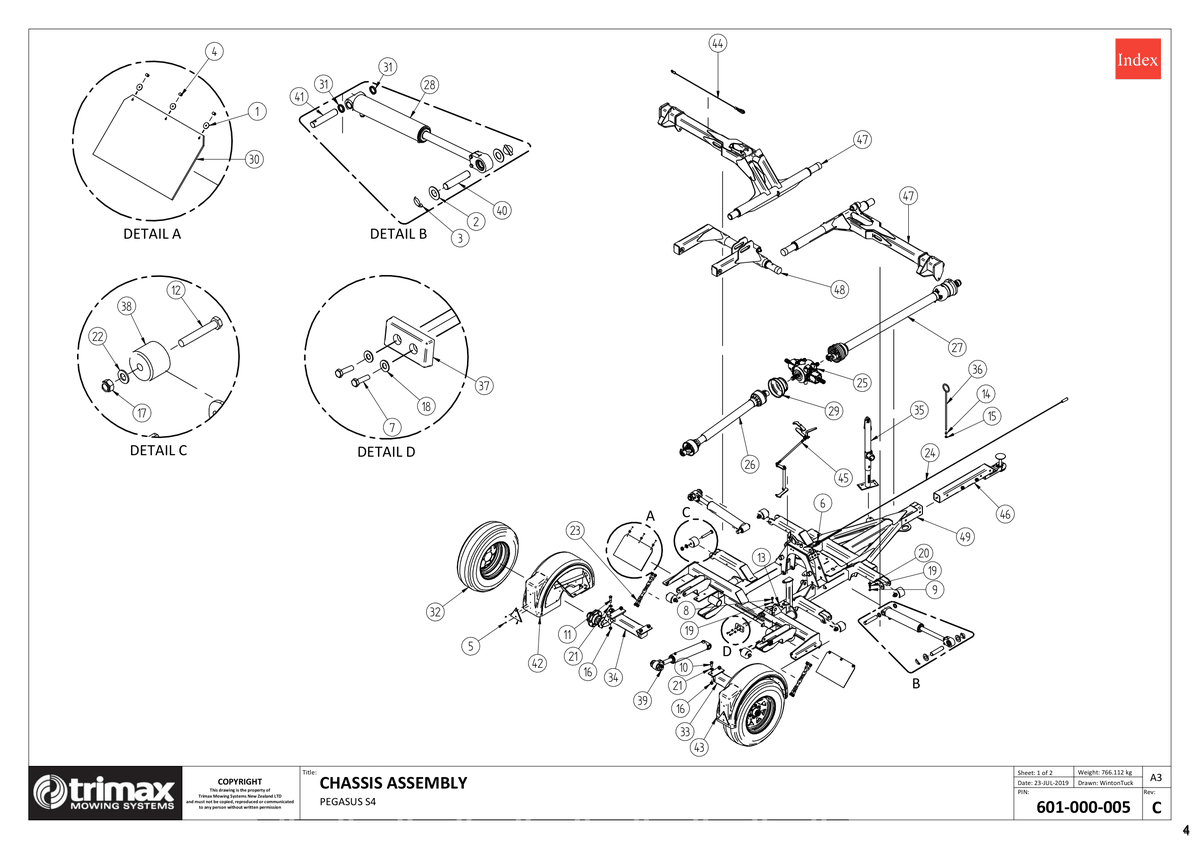

727 - Pegasus S4 - Chassis Assembly

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	A$0.29
2	Washer - Flat 108-224-014 More Info >	A$6.79
3	Linch Pin 203-300-700 More Info >	A$3.05
4	Blind Rivet 213-000-004 More Info >	A$1.12
6	Bow Shackle - Stainless - Ø6mm 214-446-250 More Info >	A$9.17
7	Bolt 301-208-303 More Info >	A$0.60
8	Bolt 301-212-253 More Info >	A$4.17
9	Bolt 301-212-303 More Info >	A$3.36
10	Bolt 301-216-403 More Info >	A$1.83
11	Bolt 301-216-603 More Info >	A$2.41
12	Bolt 301-620-133 More Info >	A$17.09
13	Nut - Nyloc 307-208-053 More Info >	A$0.55
14	Nut - Plain 307-210-013 More Info >	A$0.54
15	Nut - Nyloc 307-210-053 More Info >	A$0.89
16	Nut - Nyloc 307-216-053 More Info >	A$1.44
17	Nut - Nyloc 307-220-053 More Info >	A$2.25
18	Washer - Flat 308-100-013 More Info >	A$0.24
19	Washer - Spring 308-120-043 More Info >	A$0.65
20	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
21	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
22	Washer - Heavy Flat 308-200-064 More Info >	A$1.44
23	Check Chain Assembly 404-000-006 More Info >	A$40.13
24	Release Rope Assembly 4.5m i See notes section for usage notes on this part 404-000-125 More Info >	A$63.92
25	Gearbox 405-201-020 More Info >	A$2,347.17
26	PTO Shaft 406-340-570 More Info >	A$350.39
27	PTO Shaft Wide Angle-T60 i See notes section for usage notes on this part 406-000-084	Price on Request
28	Lift Ram Assembly 409-845-200 More Info >	A$1,474.60
29	Cone - PTO Shield 410-440-403 More Info >	A$29.59
31	Spacer Ring - Cut Height 412-000-474 More Info >	A$16.56
32	Wheel Assembly - Road 416-842-620 More Info >	A$593.61
33	Axle Assembly - Braked/Splined - RH 416-842-740 More Info >	A$1,741.00
34	Axle Assembly - Braked/Splined - LH 416-842-750 More Info >	A$1,741.00
35	Parking Jack Assembly 418-000-217 More Info >	A$220.48
36	Guide 418-000-466 More Info >	A$30.39
37	Buffer Pad 418-840-300 More Info >	A$26.90
38	Guide Roller 418-844-364 More Info >	A$81.82
39	Pin - Hydraulic Cylinder 419-845-550 More Info >	A$53.55
40	Pin - Hydraulic Cylinder 419-845-560 More Info >	A$83.76
41	Pin - Hydraulic Cylinder 419-845-561 More Info >	A$87.84
43	Mudguard Assembly - Pegasus S4 RH 506-000-014 More Info >	A$311.85
44	Safety Rope Assembly - Transport 506-000-025 More Info >	A$121.51
