NOTES:

Part #	Number on image	Usage Notes
418-000-606	5	The New Outrigger arm is fitted from serial number onwards (727-493-410-0058 / 727-610-400-0063 Painted NZ / 727-493-410-0001 / 727-610-410-0063 Galv NZ). Order 510-000-049 (includes items 1, 3, 5, 11 fitted). New arm is backward compatible The New Outrigger arm is fitted from serial number onwards (727-493-410-0058 / 727-610-400-0063 Painted NZ / 727-493-410-0001 / 727-610-410-0063 Galv NZ). Order 510-000-049 (includes items 1, 3, 5, 11 fitted). New arm is backward compatible
460-000-234	7	Item 7 includes items 8, 9, 10, 11 & 12 as Kit Item 7 includes items 8, 9, 10, 11 & 12 as Kit
301-208-253	13	Items 13-15 moved to Chassis assembly from new universal chassis serial numbers onwards: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087 Items 13-15 moved to Chassis assembly from new universal chassis serial numbers onwards: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087
308-080-016	14	Items 13-15 moved to Chassis assembly from new universal chassis serial numbers onwards: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087 Items 13-15 moved to Chassis assembly from new universal chassis serial numbers onwards: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087
418-840-300	15	Items 13-15 moved to Chassis assembly from new universal chassis serial numbers onwards: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087 Items 13-15 moved to Chassis assembly from new universal chassis serial numbers onwards: NZM 727-493-400-0089 / 727-610-410-0107 / 727-610-400-0087

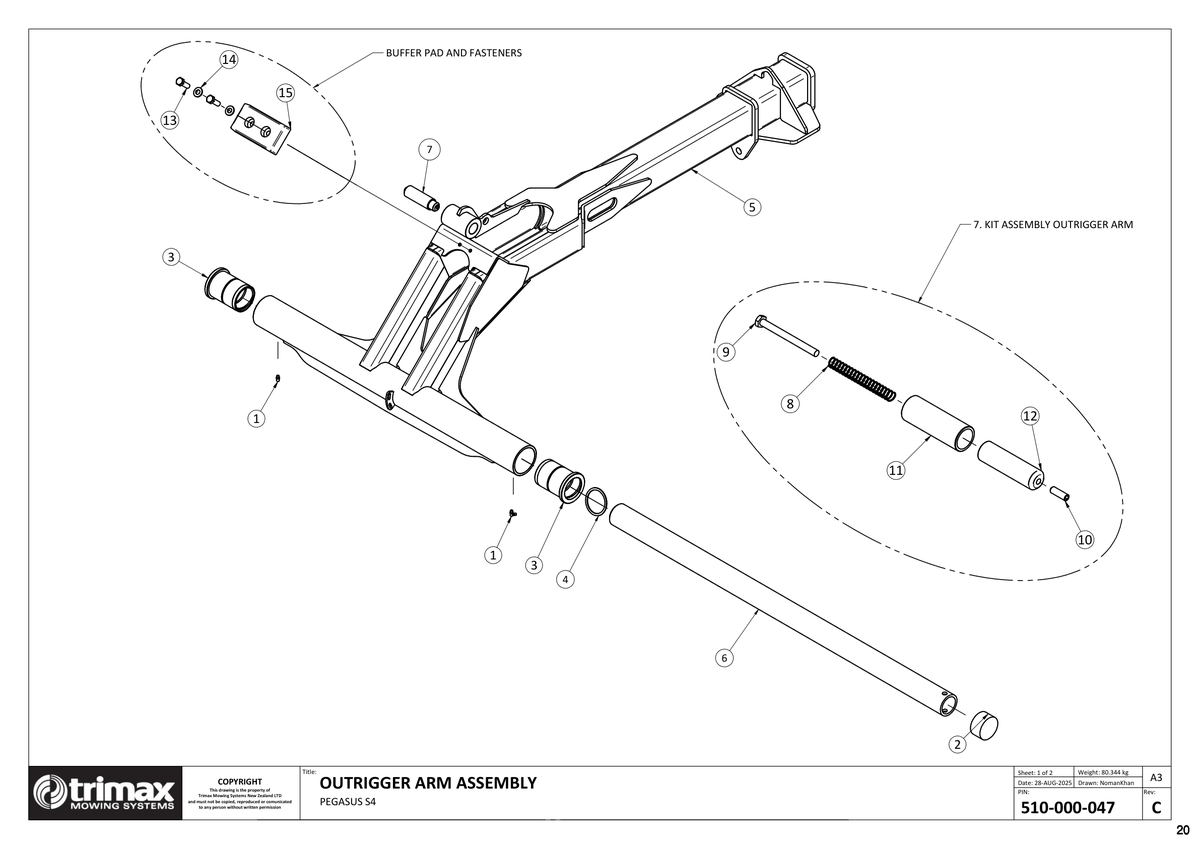

727 - Pegasus S4 - Outrigger Arm LH & RH

Pegasus S4 493, Pegasus S4 610

Grouped product items
No.	Product Name	Price
1	Grease Nipple 208-442-650 More Info >	A$6.43
2	Cap - Round 209-840-320 More Info >	A$9.00
3	Bush 402-840-260 More Info >	A$205.83
4	Shim 418-000-001 More Info >	A$48.49
5	Side Outrigger Weldment 493 & 610 i See notes section for usage notes on this part 418-000-606 More Info >	A$3,028.41
6	Pin - Outrigger Hinge - Side 419-840-210 More Info >	A$302.47
7	Kit Assembly - Outrigger Arm - Pegasus i See notes section for usage notes on this part 460-000-234 More Info >	Price on Request
8	Spring - Compression 207-840-720 More Info >	A$18.09
9	Bolt 301-208-906 More Info >	A$4.28
10	Grub Screw 312-208-255 More Info >	A$2.14
11	Bush 402-840-710 More Info >	A$89.89
12	Pin - Transport Lock 419-840-700 More Info >	A$112.31
13	Bolt i See notes section for usage notes on this part 301-208-253 More Info >	A$0.29
14	Washer - Flat i See notes section for usage notes on this part 308-080-016 More Info >	A$0.36
15	Buffer Pad i See notes section for usage notes on this part 418-840-300 More Info >	A$26.90
