NOTES:

Part #	Number on image	Usage Notes
404-320-122	20	Roller Scraper available as an option

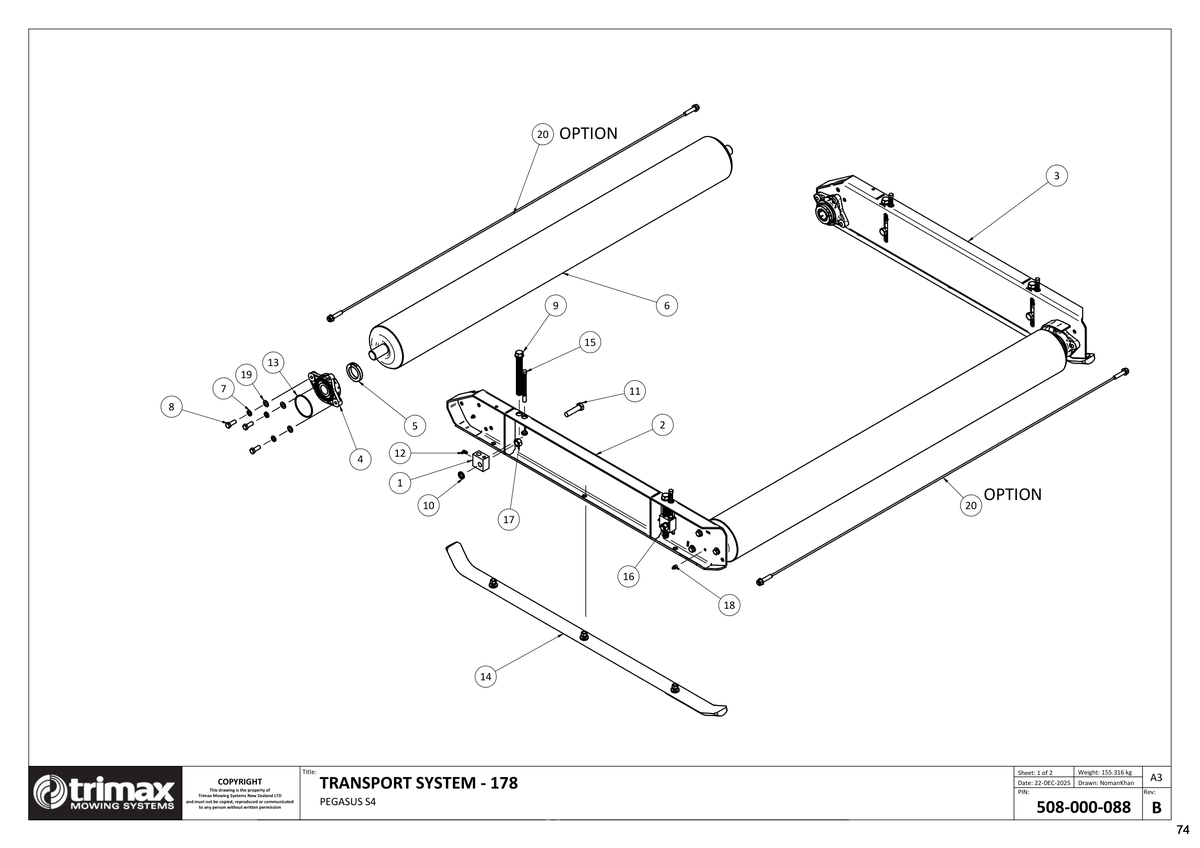

727 - Pegasus S4 - Transport System 178

Pegasus S4 493

Grouped product items
No.	Product Name	Price
1	Height Adjuster Block 412-000-279 More Info >	A$82.60
2	Side Channel Weldment - LH 412-841-052 More Info >	A$523.40
3	Side Channel Weldment - RH 412-841-051 More Info >	A$523.40
4	Roller Bearing Assembly - Trimax Specification - 401-000-005 More Info >	A$272.00
5	Bearing Collar 401-000-007 More Info >	Price on Request
6	Roller Weldment 178 414-320-020 More Info >	A$649.77
7	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
8	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
9	Height Adjuster Rod - RapidSet 450-000-126 More Info >	A$50.85
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
11	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
12	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
13	O Ring 450-000-055 More Info >	A$3.56
14	Skid Assembly - Anti-Bounce 412-000-148 More Info >	A$185.68
15	Height Indicator - Metric 412-000-256 More Info >	A$33.33
16	Nut - Half 307-212-023 More Info >	A$1.16
17	Nut - Plain 307-216-013 More Info >	A$0.97
18	Grease Nipple - Trimax Specification 208-442-550 More Info >	A$4.72
19	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
20	Scraper - Roller Scraper Kit - 178cm i See notes section for usage notes on this part 404-320-122 More Info >	A$68.76
