NOTES:

Part #	Number on image	Usage Notes
403-360-110	31	Idler Pulley assembly C/W bearings available as part number 403-360-111.

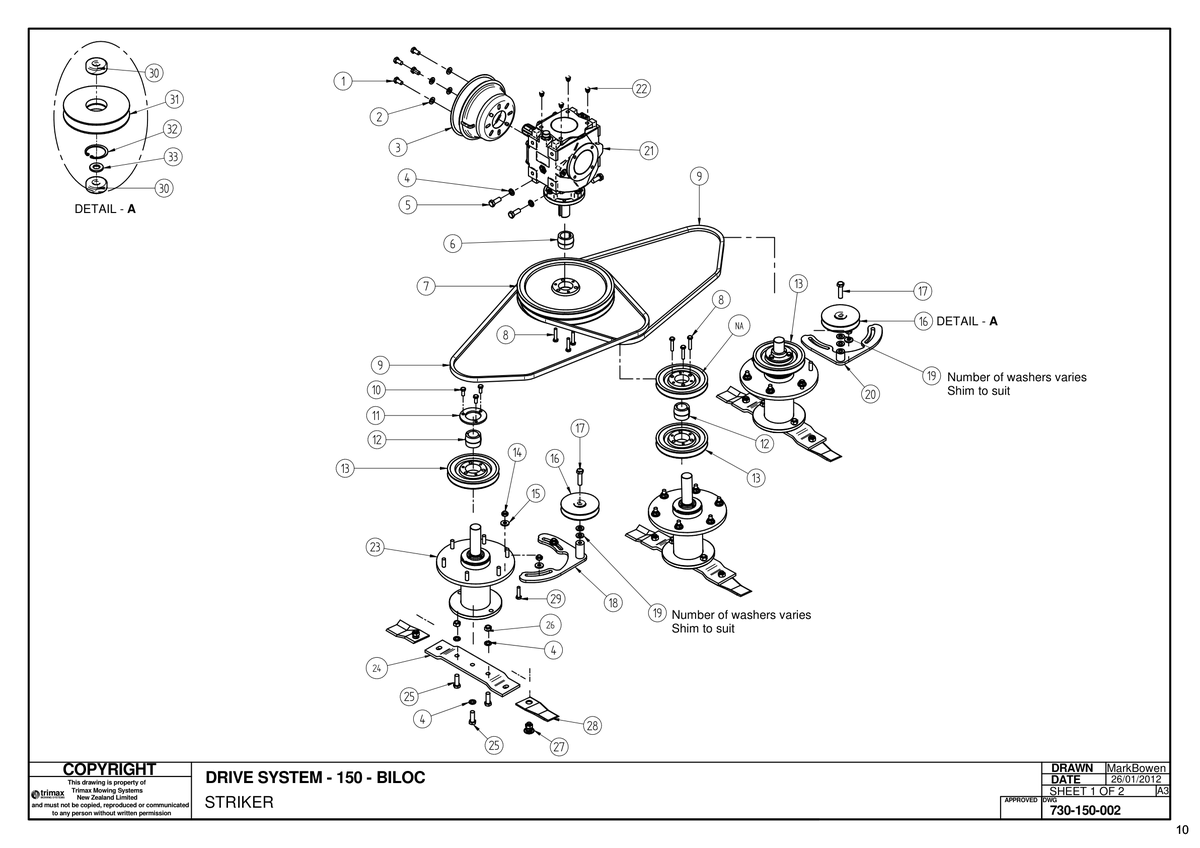

730 - Striker S1 150 - Drive System - Biloc

Striker S1 150

Grouped product items
No.	Product Name	Price
1	Bolt 301-210-203 More Info >	A$0.80
2	Washer - Flat 308-100-013 More Info >	A$0.24
3	Cone - PTO Holes Punched 410-440-402 More Info >	A$29.59
4	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
5	Bolt 301-212-303 More Info >	A$3.36
6	Bush 402-060-330 More Info >	A$56.60
7	Pulley 403-000-060 More Info >	A$173.83
8	Bolt 301-208-403 More Info >	A$0.47
9	Vee Belt 404-040-700 More Info >	A$35.00
10	Bolt 301-208-203 More Info >	A$1.31
11	Retainer Ring 402-060-450 More Info >	A$16.34
12	Bush 402-060-320 More Info >	A$26.55
13	Pulley 403-360-300 More Info >	A$64.20
14	Nut - Nyloc 307-210-053 More Info >	A$0.89
15	Washer - Heavy Flat 308-100-063 More Info >	A$0.24
16	Pulley Assembly - Idler 403-360-111 More Info >	A$95.00
17	Bolt 301-212-453 More Info >	A$4.33
18	Idler Adjuster M 403-000-063 More Info >	A$70.96
19	Washer - Hardened 108-071-513 More Info >	A$3.54
20	Idler Adjuster S 403-000-064 More Info >	A$62.76
21	Gearbox 405-000-015 More Info >	A$824.60
22	Blanking Plug - M12 209-900-012 More Info >	A$0.30
24	Blade Beam 150/190 411-000-022 More Info >	A$90.39
25	Bolt 301-212-353 More Info >	A$3.86
26	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
27	Blade Bolt - With M12 Nyloc Nut - LazerBlade and NexaBlade Mounting 411-322-050 More Info >	A$5.00
28	Blade - LazerBlade Uplift - Uplift Profile Rotary Cutting Blade 411-160-842 More Info >	A$9.00
29	Set Screw 313-210-403 More Info >	A$2.25
30	Bearing - 6301 DDU 12 x 37 x 12 - Trimax Specification - 401-021-900 More Info >	A$15.00
31	Pulley - Idler i See notes section for usage notes on this part 403-360-110 More Info >	A$45.86
32	Circlip/Snap Ring - Internal 204-820-371 More Info >	A$2.36
33	Washer - Flat 108-071-413 More Info >	A$2.89
