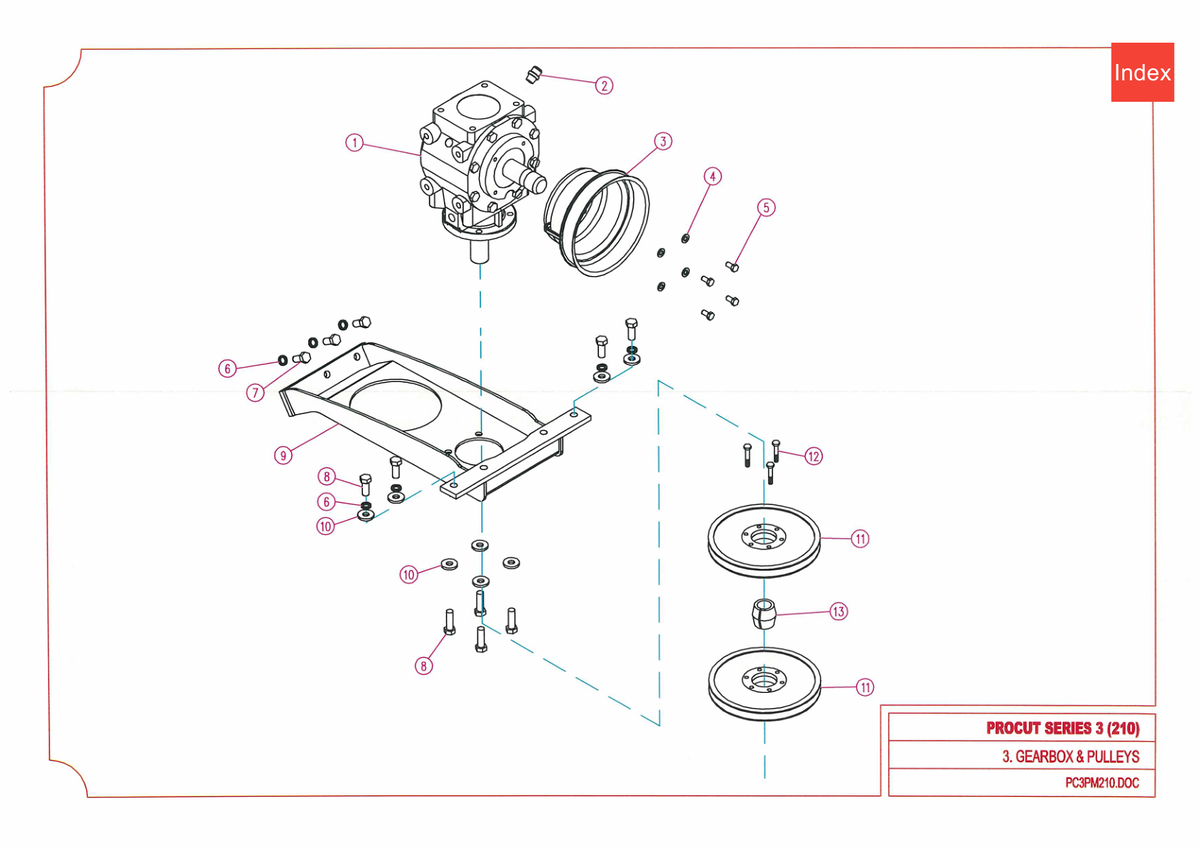

736-210 - Procut S3 - Gearbox & Pulleys

ProCut S3 210

Grouped product items
No. Image Product Name Price Quantity
1 Gearbox - Standard Rotation - 540rpm [405-200-720] Gearbox - Standard Rotation - 540rpm 405-200-720
A$1,331.62
2 Gearbox - Breather [405-207-207] Gearbox - Breather 405-207-207
A$31.52
3 Cone - PTO Holes Punched [410-440-402] Cone - PTO Holes Punched 410-440-402
A$29.59
4 Washer - Flat [308-080-013] Washer - Flat 308-080-013
A$0.06
5 Bolt - Hex Head - M8 x 16 - Trimax Specification [301-208-163] Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163
A$0.54
6 Washer - Spring M12 - Trimax Specification - [308-120-043] Washer - Spring M12 - Trimax Specification - 308-120-043
A$0.65
7 Bolt - Hex Head - M12 x 25 - Trimax Specification [301-212-253] Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253
A$4.17
8 Bolt - Hex Head - M12 x 35 - Trimax Specification [301-212-353] Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353
A$3.86
9 Gearbox Mount Weldment - Deck Assembly [417-841-500] Gearbox Mount Weldment - Deck Assembly 417-841-500
A$370.78
10 Washer - Heavy Flat [308-120-063] Washer - Heavy Flat 308-120-063
A$1.65
11 Pulley [403-360-800] Pulley 403-360-800
A$127.98
12 Bolt - Hex Head - M8 x 40 - Trimax Specification [301-208-403] Bolt - Hex Head - M8 x 40 - Trimax Specification 301-208-403
A$0.47
13 Bush [402-060-330] Bush 402-060-330
A$56.60
