NOTES:

Part #	Number on image	Usage Notes
413-000-088	18	Headstock is available in two configurations, Painted or Galvanised order according to mower fitment
413-000-089	18	Headstock is available in two configurations, Painted or Galvanised order according to mower fitment

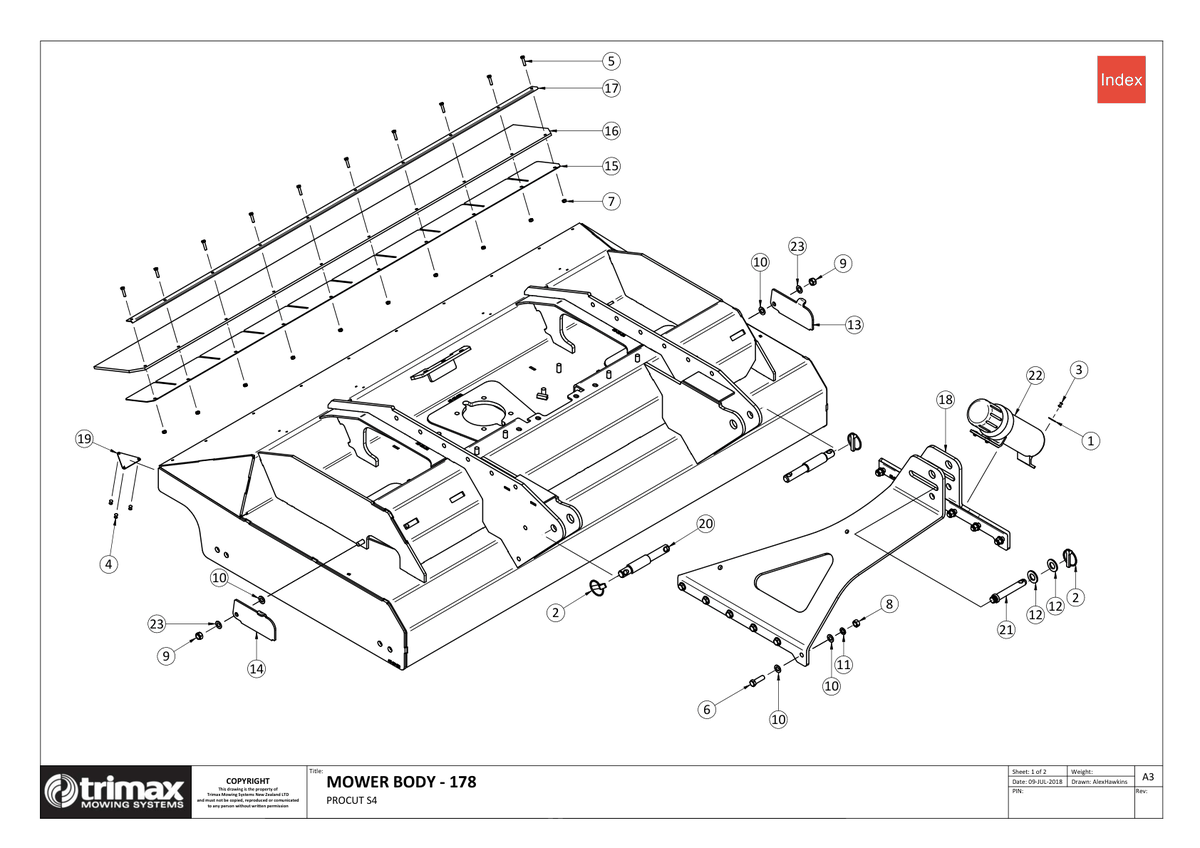

736 - Procut S4 178 - Mower Body

ProCut S4 178

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	A$0.29
2	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
3	Blind Rivet 213-000-004 More Info >	A$1.12
4	Blind Rivet 213-443-250 More Info >	A$0.80
5	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	A$0.29
6	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
7	Nut - Nyloc 307-206-053 More Info >	A$0.89
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
12	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
13	Wash Panel - RH 410-000-134 More Info >	A$34.99
14	Wash Panel - LH 410-000-135 More Info >	A$34.99
15	Anti-Droop Strip - Safety Flap 178 410-000-298 More Info >	A$88.32
16	Safety Flap - Deck - Rear 178 410-841-120 More Info >	A$137.13
17	Clamp Strip - Safety Flap 178 410-841-200 More Info >	A$29.17
18	Headstock Weldment i See notes section for usage notes on this part 413-000-088 More Info >	A$846.95
18	Headstock Weldment - Galv PC4 i See notes section for usage notes on this part 413-000-089 More Info >	Price on Request
19	Cap Plate 417-001-024 More Info >	Price on Request
20	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
21	Pin - Linkage - Top Link 419-301-150 More Info >	A$21.53
22	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
23	Washer - Crinkle 450-000-116 More Info >	A$1.89
