NOTES:

Part #	Number on image	Usage Notes
412-000-256	13	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-309	15	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-311	15	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-310	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-312	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment

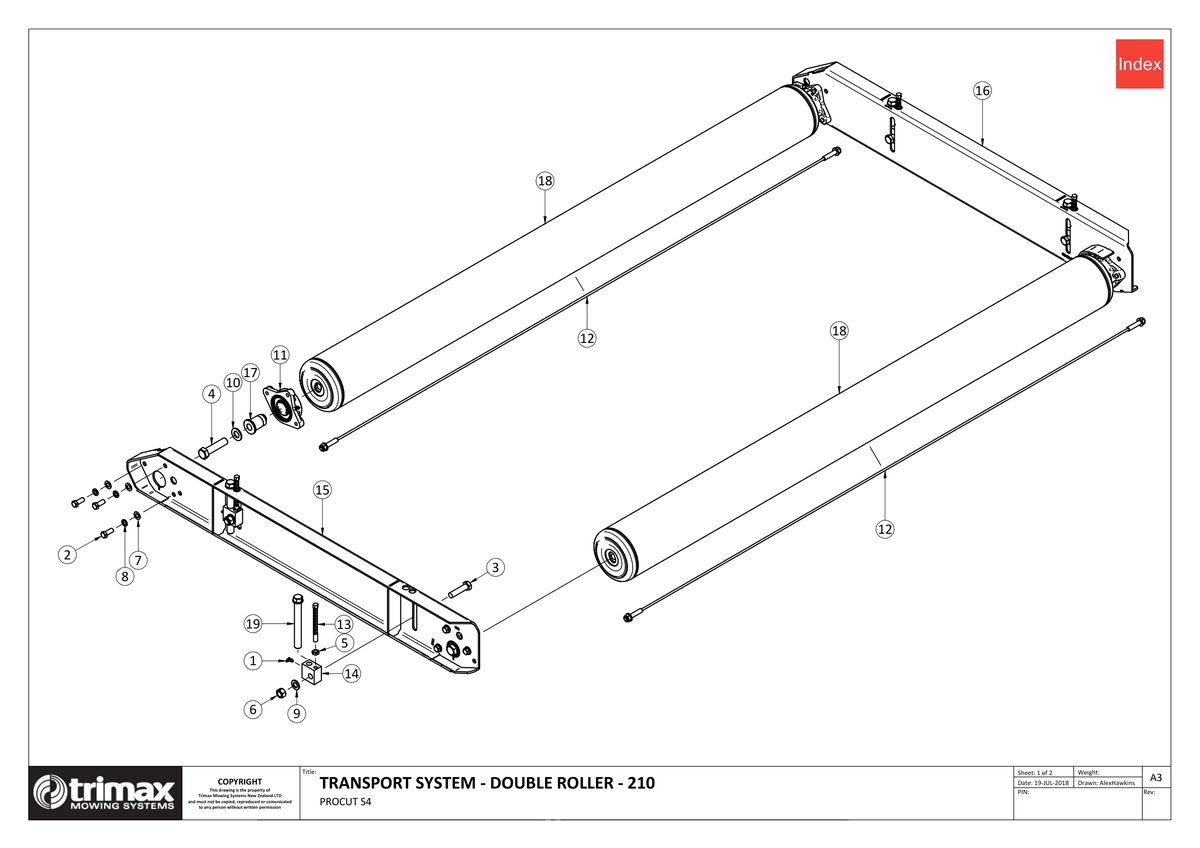

736 - Procut S4 210 - Transport System - Double Roller

ProCut S4 210

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
3	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	A$20.21
5	Nut - Half 307-212-023 More Info >	A$1.16
6	Nut - Plain 307-216-013 More Info >	A$0.97
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
9	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
10	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
11	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	A$105.00
12	Scraper - Roller 210 404-320-123 More Info >	A$68.76
13	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	A$33.33
14	Height Adjuster Block 412-000-279 More Info >	A$82.60
15	Side Channel Weldment - LocTek - DR LH i See notes section for usage notes on this part 412-000-309 More Info >	A$549.03
15	Side Channel Weldment - LocTek - DR LH i See notes section for usage notes on this part 412-000-311 More Info >	A$578.05
16	Side Channel Weldment - LocTek - DR RH i See notes section for usage notes on this part 412-000-310 More Info >	A$549.03
16	Side Channel Weldment - LocTek - DR RH i See notes section for usage notes on this part 412-000-312 More Info >	A$578.05
17	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	A$50.00
18	Roller Weldment - Loctek 210 414-000-093 More Info >	A$800.00
19	Height Adjuster Rod - RapidSet 450-000-126 More Info >	A$50.85
