NOTES:

Part #	Number on image	Usage Notes
412-000-256	14	Height Indicator rods are available in two configurations, Metric or Imperial order according to mower fitment
412-000-305	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-307	16	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-306	17	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment
412-000-308	17	Side channels are available in two configurations, Painted or Galvanised order according to mower fitment

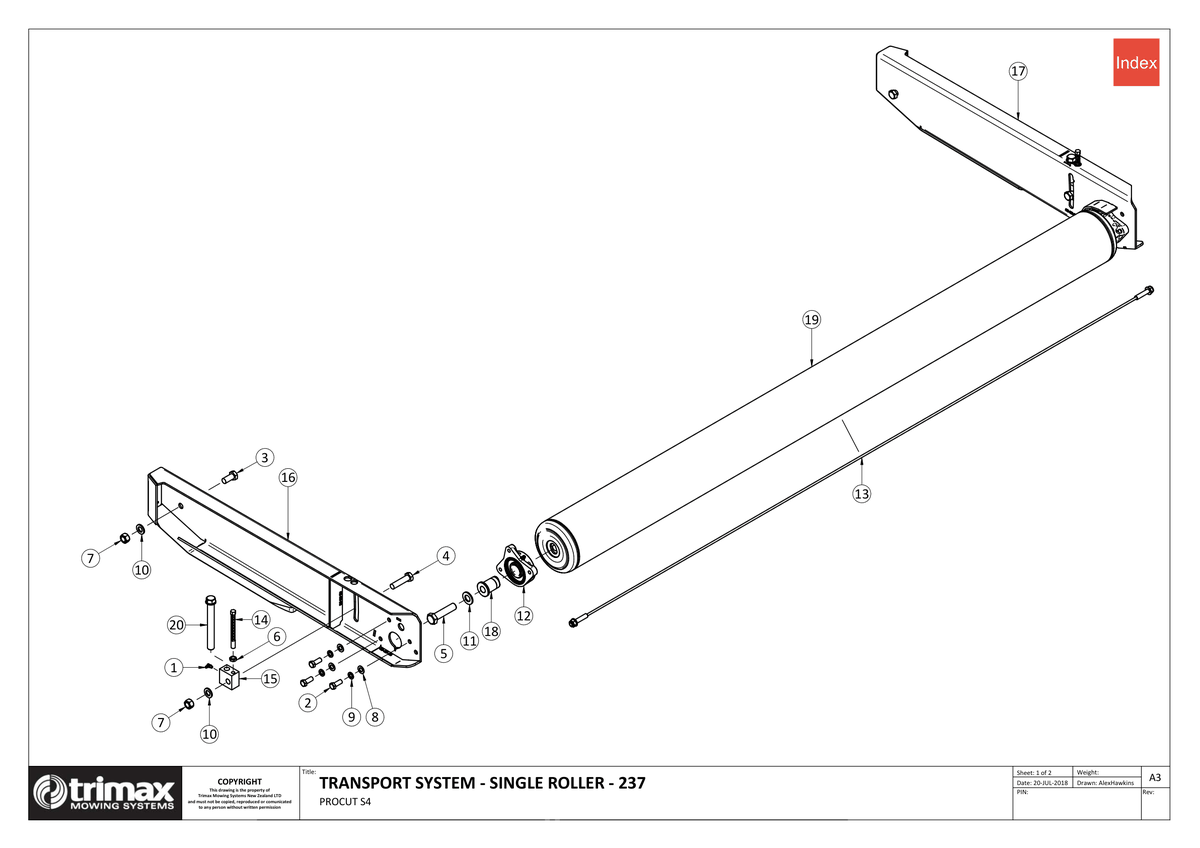

736 - Procut S4 237 - Single Roller Option

ProCut S4 237

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
2	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
3	Bolt - Hex Head - M16 x 35 - Trimax Specification 301-216-353 More Info >	A$3.22
4	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
5	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	A$20.21
6	Nut - Half 307-212-023 More Info >	A$1.16
7	Nut - Plain 307-216-013 More Info >	A$0.97
8	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
11	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
12	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	A$105.00
13	Scraper - Roller 237 404-320-124 More Info >	A$68.76
14	Height Indicator - Metric i See notes section for usage notes on this part 412-000-256 More Info >	A$33.33
15	Height Adjuster Block 412-000-279 More Info >	A$82.60
16	Side Channel Weldment - LocTek - SRR LH i See notes section for usage notes on this part 412-000-305 More Info >	A$527.46
16	Side Channel Weldment - LocTek - SRR LH i See notes section for usage notes on this part 412-000-307 More Info >	A$694.38
17	Side Channel Weldment - LocTek - SRR RH i See notes section for usage notes on this part 412-000-306 More Info >	A$527.46
17	Side Channel Weldment - LocTek - SRR RH i See notes section for usage notes on this part 412-000-308 More Info >	A$694.38
18	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	A$50.00
19	Roller Weldment - Loctek 237 414-000-094 More Info >	A$900.00
20	Height Adjuster Rod - RapidSet 450-000-126 More Info >	A$50.85
