NOTES:

Part #	Number on image	Usage Notes
417-001-670	21	Bolted on rear hinge pin used form serial number 753-175-301-1054531 onwards, Use part number 417-000-186 - Hinge Pin - Flap 175 for welded on pin.

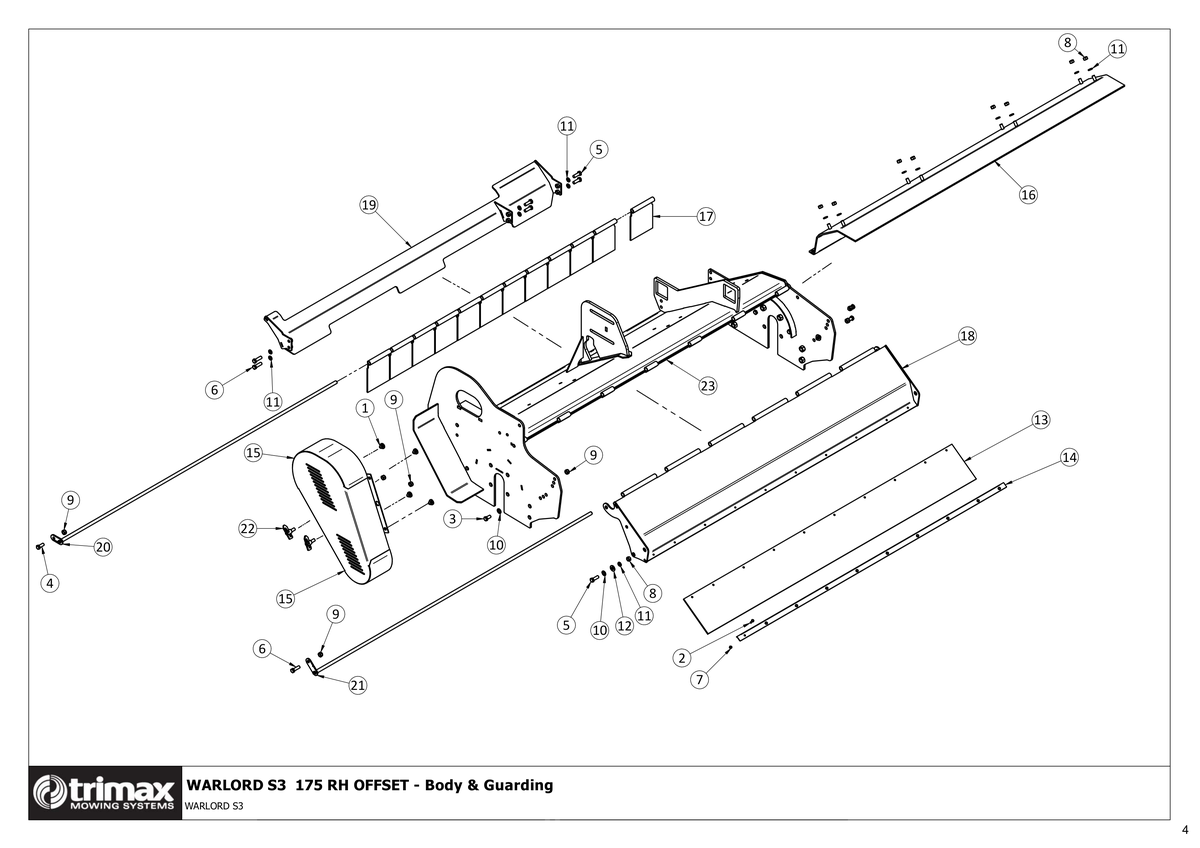

753 - Warlord S3 175 - Body & Guarding - RH Offset

Warlord S3 175

Grouped product items
No.	Product Name	Price
1	Button - Anti Rattle 209-000-006 More Info >	A$13.54
2	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	A$0.29
3	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
5	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
6	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
7	Nut - Nyloc 307-206-053 More Info >	A$0.89
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
12	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
13	Flap 410-480-202 More Info >	A$127.34
14	Clamp Strip 410-480-212 More Info >	A$24.04
15	Belt Guard Weldment 410-480-441 More Info >	A$681.27
16	Body 417-000-493 More Info >	A$257.36
17	Flap Weldment - Front WL3 417-001-050 More Info >	A$60.39
18	Rear Flap Assembly - 175 Warlord 417-001-076 More Info >	Price on Request
19	Pruning Guide Weldment - RH Offset 175 417-001-079 More Info >	A$438.88
20	Hinge Rod Weldment - Front Flap 175 Warlord S3 417-001-094 More Info >	A$50.32
21	Hinge Rod Weldment - Rear Flap 175 Warlord S3 i See notes section for usage notes on this part 417-001-670 More Info >	Price on Request
22	Drop Latch - Anti-loose 423-080-400 More Info >	A$29.92
23	Body Weldment - Warlord S3 RH Offset 175 502-000-095 More Info >	Price on Request
