NOTES:

Part #	Number on image	Usage Notes
417-001-671	21	Bolted on rear hinge pin used form serial number 753-205-301-1054535 onwards ,Use part number 417-000-188 - Hinge Pin - Flap 205 for welded on pin.

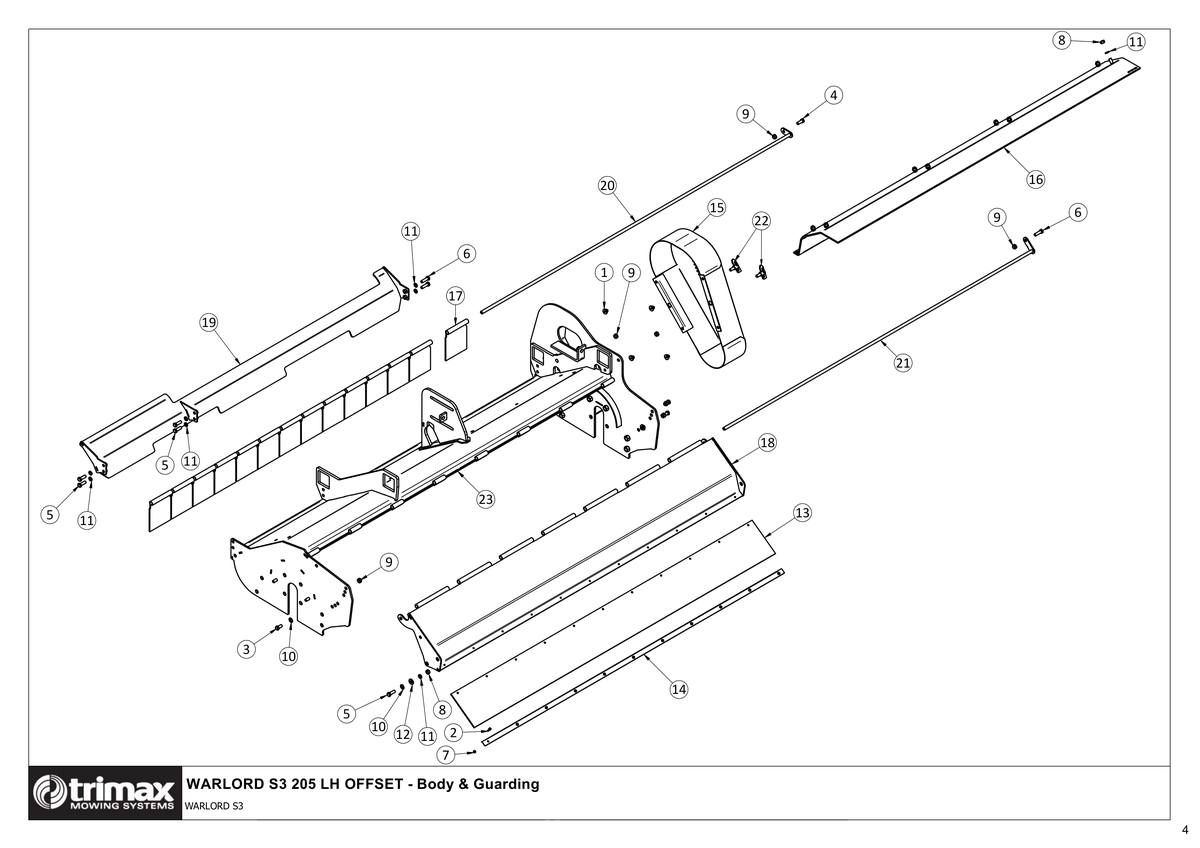

753 - Warlord S3 205 - Body & Guarding - LH Offset

Warlord S3 205

Grouped product items
No.	Product Name	Price
1	Button - Anti Rattle 209-000-006 More Info >	A$13.54
2	Bolt - Hex Head - M6 x 20 - Trimax Specification 301-206-203 More Info >	A$0.29
3	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
4	Bolt - Hex Head - M12 x 30 - Trimax Specification 301-212-303 More Info >	A$3.36
5	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
6	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
7	Nut - Nyloc 307-206-053 More Info >	A$0.89
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
9	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
10	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
11	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
12	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
13	Flap 410-480-203 More Info >	A$159.48
14	Clamp Strip 410-480-213 More Info >	A$23.28
15	Belt Guard Weldment - wDecal/AntiRatl Bungs 410-480-443 More Info >	A$758.48
16	Liner Weldment 205 417-000-433 More Info >	A$721.96
17	Flap Weldment - Front WL3 417-001-050 More Info >	A$60.39
18	Rear Flap Assembly - 205 Warlord 417-001-077	Price on Request
19	Pruning Guide Weldment - LH Offset 205 417-001-082 More Info >	A$430.42
20	Hinge Rod Weldment - Front Flap 205 Warlord S3 417-001-095 More Info >	A$41.86
21	Hinge Rod Weldment - Rear Flap 205 Warlord S3 i See notes section for usage notes on this part 417-001-671 More Info >	Price on Request
22	Drop Latch - Anti-loose 423-080-400 More Info >	A$29.92
23	Body Weldment - Warlord S3 LH Offset 205 502-000-096 More Info >	Price on Request
