NOTES:

Part #	Number on image	Usage Notes
306-216-705	11	Flail Bolt and nut combination supplied under part number 306-216-705, use part number 307-216-053 for nut only
411-480-643	12	Use part number 411-000-029 for TACA coated flail option

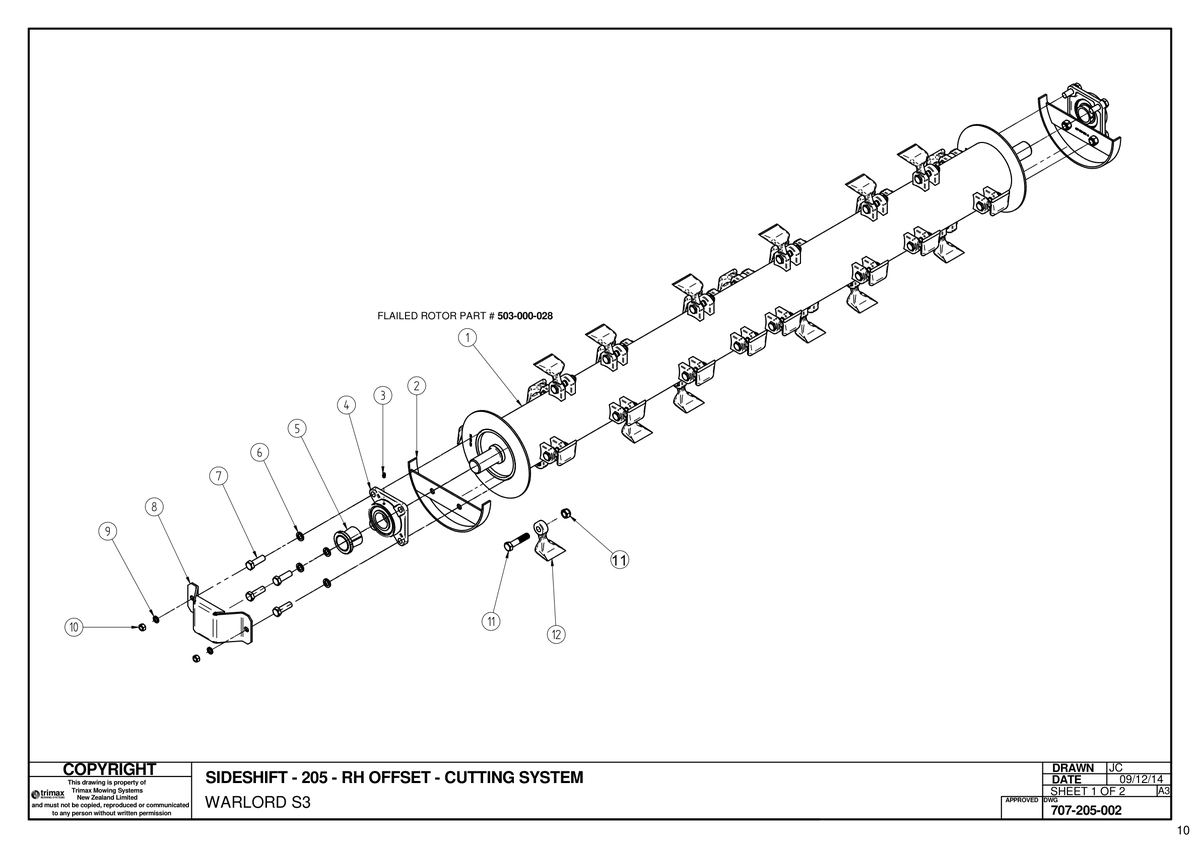

753 - Warlord S3 205 - Cutting System

Warlord S3 205

Grouped product items
No.	Product Name	Price
2	Half Ring Lower Weldment - Rotor (M16 Captive Nuts) 417-480-331 More Info >	A$43.07
3	Grease Nipple - 1/4" Short 208-442-600 More Info >	A$3.78
4	Bearing Assembly 401-000-002 More Info >	A$125.00
5	Sleeve - Taper 401-021-230 More Info >	A$37.00
6	Washer - Spring 308-160-043 More Info >	A$0.97
7	Bolt 301-216-503 More Info >	A$8.03
8	Bearing Guard 410-460-302 More Info >	A$79.51
9	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
10	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
11	Bolt - Hex Head M16 x 75 with Hex Nyloc Nut M16 - Trimax Specification - i See notes section for usage notes on this part 306-216-705 More Info >	A$11.00
12	Flail - Forged Flail - Warlord and Force - Trimax Specification - i See notes section for usage notes on this part 411-480-643 More Info >	A$23.00
