NOTES:

Part #	Number on image	Usage Notes
401-022-490	10	Lower Bearing Notes: Early gearboxes use 401-022-500 (Gearbox 31175300). Later gearboxes use 401-022-490 (Gearbox 9.311.330.00). 401-022-490 can be retro-fitted into early gearboxes.

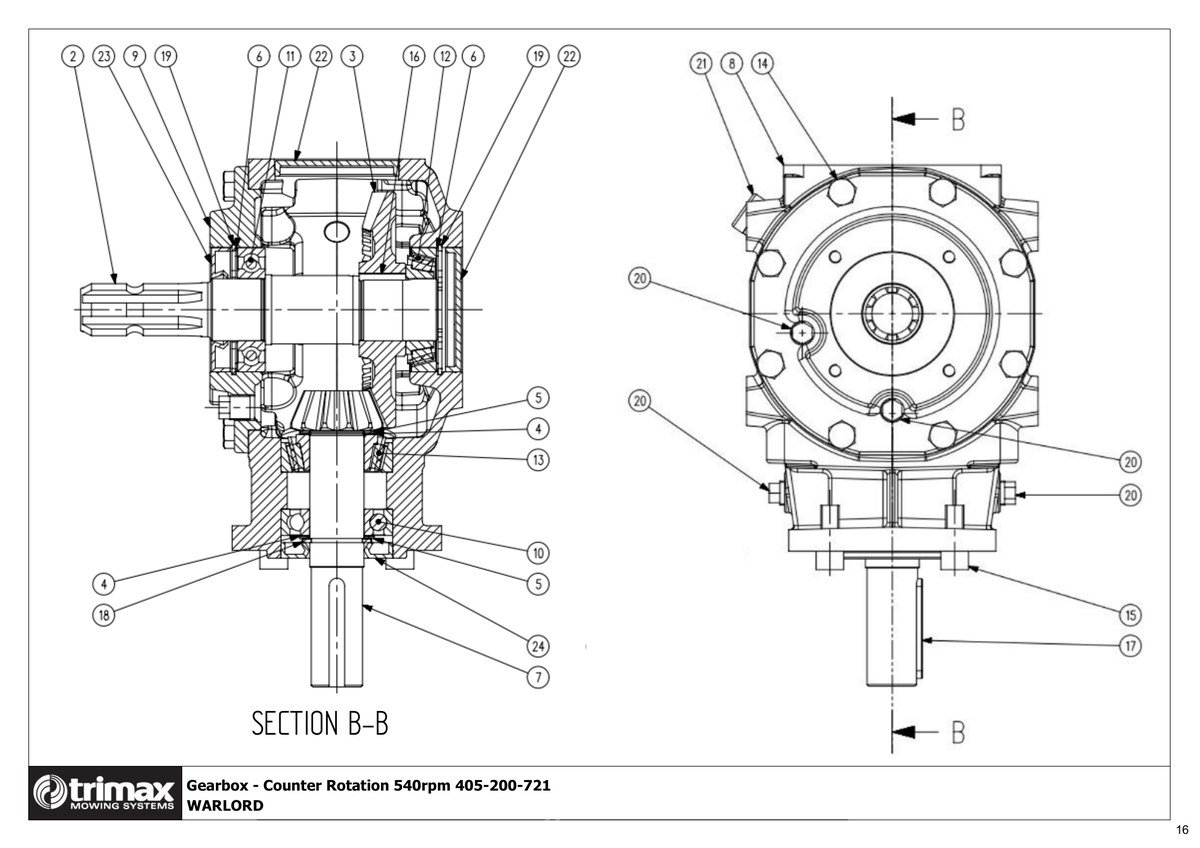

753 - Warlord S3 235 - Counter Rotation Gearbox LH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
3	Gearbox - Crownwheel Gear 405-205-220 More Info >	A$970.73
4	Gearbox - Shim 405-206-220 More Info >	A$23.20
5	Gearbox - Shim Ø35.3xØ47.8 405-206-221 More Info >	A$23.59
6	Gearbox - Shim Ø79.7x0.5 405-206-140 More Info >	A$16.84
7	Oil Seal - 35x72x10 422-380-300 More Info >	A$25.84
8	Housing 405-207-153 More Info >	Price on Request
9	Cover - Input Shaft - Gearbox 405-207-152 More Info >	A$573.08
10	Bearing i See notes section for usage notes on this part 401-022-490 More Info >	A$63.48
11	Bearing 401-022-400 More Info >	A$79.55
12	Bearing 401-022-510 More Info >	A$100.95
13	Bearing 401-022-520 More Info >	A$80.89
14	Bolt 301-210-253 More Info >	A$0.80
15	Bolt 301-212-303 More Info >	A$3.36
16	Key - Gearbox 405-425-960 More Info >	A$10.41
17	Key - Gearbox 405-207-154 More Info >	A$14.95
18	Heavy Duty Circlip - Internal 204-440-917 More Info >	A$14.20
19	Circlip/Snap Ring 204-446-193 More Info >	A$15.55
20	Oil Plug - Hex Head 3/8" (Trimax Specification) 405-207-211 More Info >	A$15.76
21	Gearbox - Breather 405-207-207 More Info >	A$31.52
22	Cap - Gearbox Ø80x10 405-207-151 More Info >	A$39.92
23	Oil Seal 422-381-000 More Info >	A$37.45
