NOTES:

Part #	Number on image	Usage Notes
405-200-720	15	For LH offset use counter rotation gearbox: 405-200-721

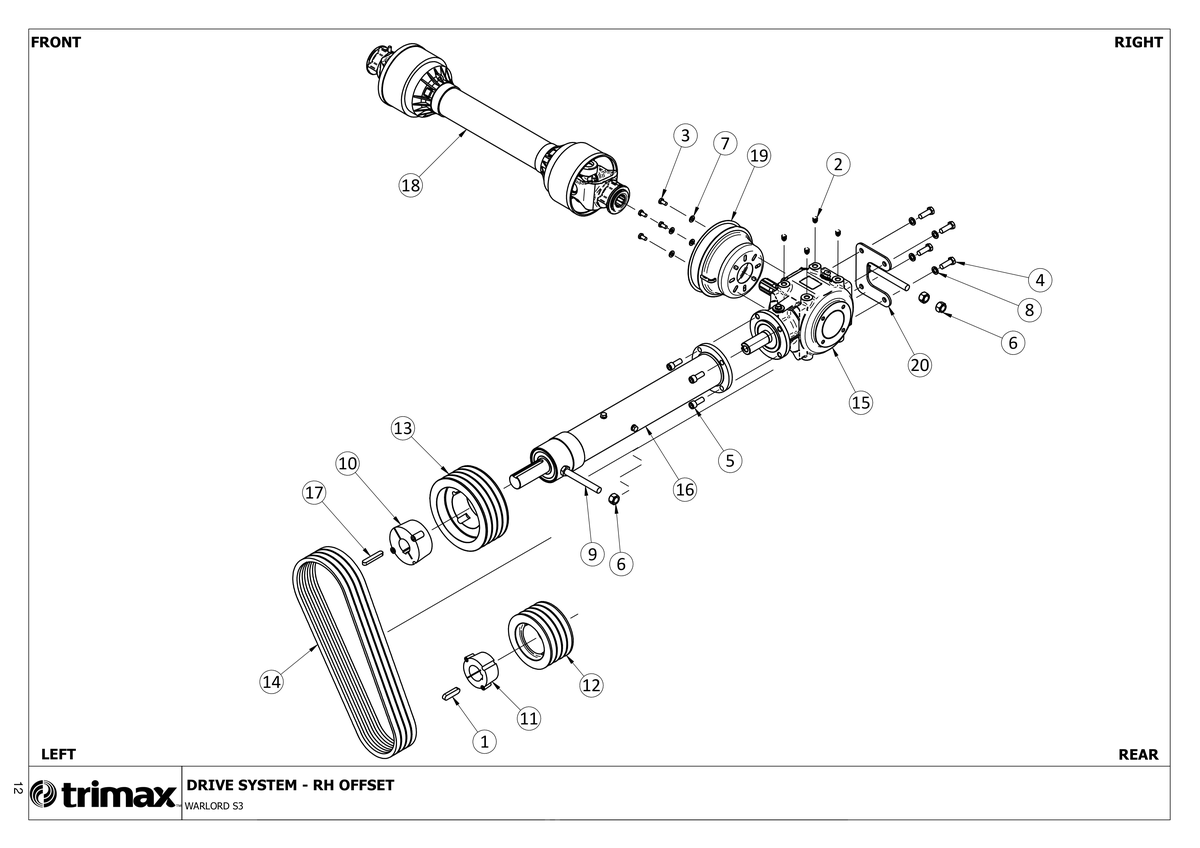

753 - Warlord S3 235 - Drive System - RH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
1	Key - Trimax Specification 205-425-920 More Info >	A$18.29
2	Blanking Plug - M12 209-900-012 More Info >	A$0.30
3	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
4	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
5	Cap Screw - Socket Head - M12 x 30 - Trimax Specification 303-212-305 More Info >	A$2.08
6	Nut - Plain 307-216-013 More Info >	A$0.97
7	Washer - Flat 308-080-016 More Info >	A$0.36
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
9	Set Screw 313-616-123 More Info >	Price on Request
10	Bush - Taper Lock - Trimax Specification 402-060-710 More Info >	A$81.18
11	Bush - Taper Lock - Trimax Specification 402-060-730 More Info >	A$32.74
12	Pulley - Taper Lock 403-361-180 More Info >	A$139.68
13	Pulley - Taper Lock 403-361-270 More Info >	A$283.54
14	Vee Belt - Trimax Specification 404-040-512 More Info >	A$70.00
15	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	A$1,331.62
16	Extension Shaft Assembly - Gearbox 405-201-780 More Info >	A$718.95
17	Key - 12x8mm - Trimax Specification 405-425-910 More Info >	A$13.16
18	PTO Complete Driveshaft - 540/1000rpm - Trimax Specification 406-340-840 More Info >	A$389.63
19	Cone - PTO Holes Punched 410-440-402 More Info >	A$29.59
20	Adjuster 417-000-428 More Info >	A$85.60
