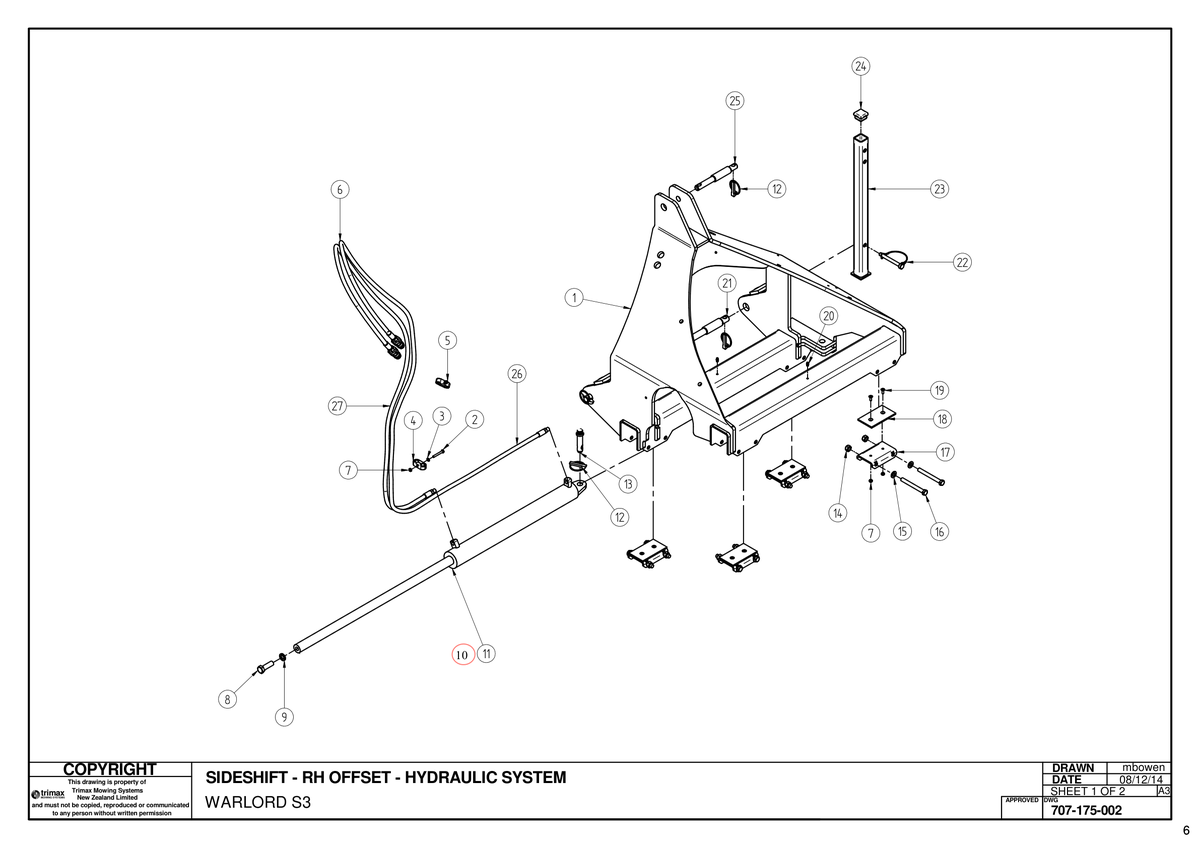

753 - Warlord S3 235 - Hydraulic System - RH Offset

Warlord S3 235

Grouped product items
No.	Product Name	Price
1	Headstock - RH Offset WL3 413-000-080 More Info >	A$1,646.95
2	Bolt 301-206-453 More Info >	A$0.18
3	Washer - Flat 308-060-013 More Info >	A$0.04
4	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	A$9.64
5	Bolt 301-206-403 More Info >	Price on Request
6	Hydraulic Hose Kit 409-448-703 More Info >	A$298.50
7	Nut - Nyloc 307-206-053 More Info >	A$0.89
8	Bolt 301-216-503 More Info >	A$8.03
9	Washer - Spring 308-160-043 More Info >	A$0.97
10	Seal Kit - Side Shift 408-000-062 More Info >	Price on Request
12	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
13	Pin - Top Link 419-000-023 More Info >	A$32.28
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
15	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
16	Bolt 301-212-113 More Info >	Price on Request
17	Slide Plate - Side Shift 413-000-086 More Info >	A$9.29
18	Slide Pad - Side Shift 413-000-087 More Info >	A$39.29
19	Countersunk Screw 302-206-165 More Info >	A$1.59
20	Grease Nipple - 1/4" Short 208-442-600 More Info >	A$3.78
21	Pin - Linkage - Lower Dual Cat. 419-300-900 More Info >	A$40.92
22	Pin 406-346-410 More Info >	A$5.96
23	Stand - Front 413-000-073 More Info >	A$87.26
24	Cap - Tube Insert Square 209-480-661 More Info >	A$22.42
25	Pin - Linkage - Upper Dual Cat. 419-300-800 More Info >	A$29.87
