NOTES:

Part #	Number on image	Usage Notes
403-000-123	24	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 36)
403-360-111	25	For Idler Arm/Pulley bearing kit use part number 406-000-167 (Item 36)
405-200-720	29	For Front Mount, three other gearboxes exist: 405-200-721 540rpm Counter Rotation 405-200-726 1000rpm Standard Rotation 405-200-725 1000rpm Counter Rotation
504-000-133	35	Use Part number 407-000-028 - for Spindle repair kit
403-000-167	36	403-000-167 - Idler repair kit contains 2 x Bearings,1 x circlip, 1 x Washer

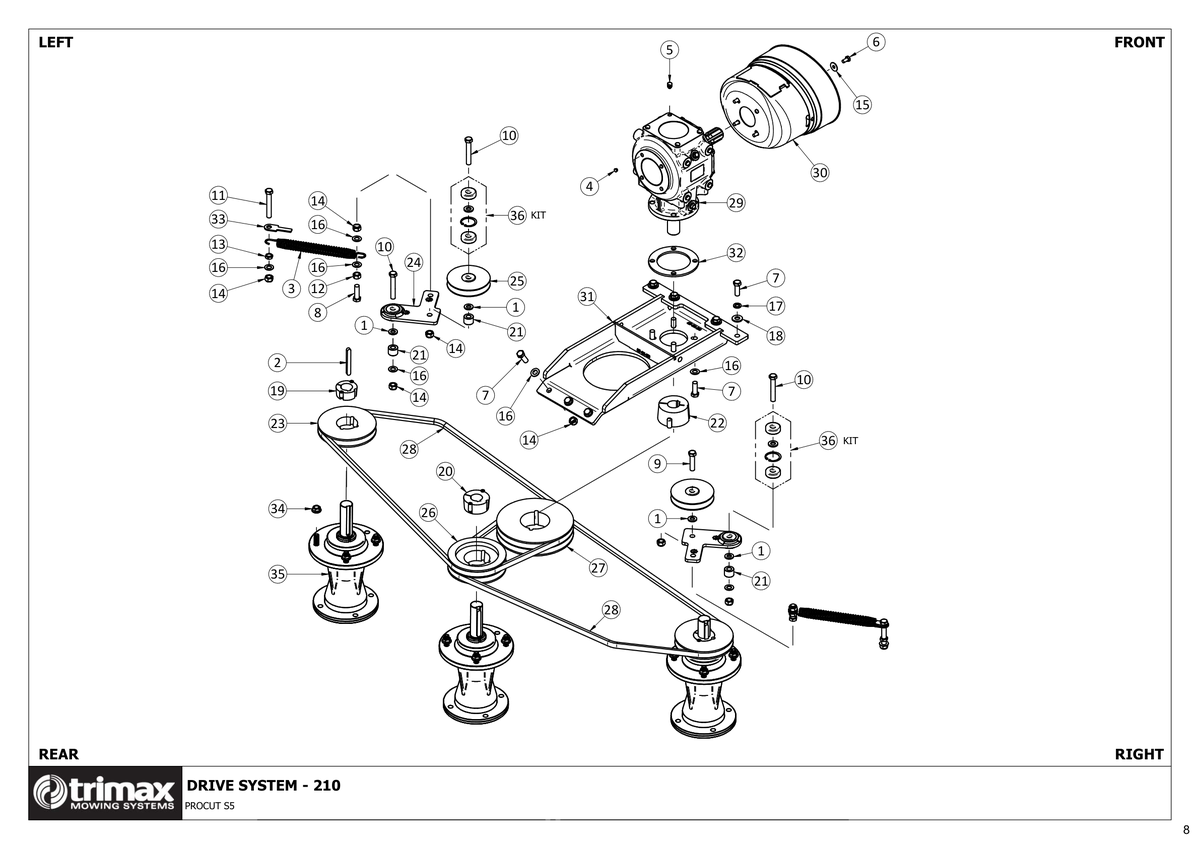

756 - Procut S5 210 - Drive System and Spindle Pulleys

ProCut S5 210

Grouped product items
No.	Product Name	Price
1	Washer - Hardened 108-071-513 More Info >	A$3.54
2	Key - 10 x 8 x 85 - Trimax Specification 205-000-003 More Info >	Price on Request
3	Spring - Deck Belt Tensioner - Trimax Specification - 207-000-009 More Info >	A$11.41
4	Blanking Plug - M8 209-000-029 More Info >	Price on Request
5	Blanking Plug - M12 209-900-012 More Info >	A$0.30
6	Bolt - Hex Head - M8 x 16 - Trimax Specification 301-208-163 More Info >	A$0.54
7	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
8	Bolt - Hex Head - M12 x 40 - Trimax Specification 301-212-403 More Info >	A$4.17
9	Bolt - Hex Head - M12 x 50 - Trimax Specification 301-212-503 More Info >	A$4.48
10	Bolt - Hex Head - M12 x 75 - Trimax Specification 301-212-753 More Info >	Price on Request
11	Bolt - Hex Head - M12 x 80 - Trimax Specification 301-212-803 More Info >	Price on Request
12	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
13	Nut - Half 307-212-023 More Info >	A$1.16
14	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
15	Washer - Fender - M8 308-080-073 More Info >	A$0.02
16	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
17	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
18	Washer - Heavy Flat 308-120-063 More Info >	A$1.65
19	Bush - Taper Lock 402-000-078 More Info >	A$22.12
20	Bush - Taper Lock 402-000-090 More Info >	A$30.09
22	Bush - Taper Lock 402-060-820 More Info >	A$80.72
23	Pulley - Taper Lock 403-000-083 More Info >	A$57.96
24	Idler Arm - Assembly i See notes section for usage notes on this part 403-000-123 More Info >	Price on Request
25	Pulley Assembly - Idler i See notes section for usage notes on this part 403-360-111 More Info >	A$95.00
26	Pulley - Taper Lock 403-361-140 More Info >	A$80.96
28	Vee Belt - Trimax Specification 404-040-830 More Info >	A$45.00
29	Gearbox - Standard Rotation - 540rpm i See notes section for usage notes on this part 405-200-720 More Info >	A$1,331.62
32	Gearbox Spacer Disc 417-001-300 More Info >	A$58.85
34	Nut - Flange 450-000-078 More Info >	A$3.82
35	Spindle Assembly - Steadfast - With Keyway i See notes section for usage notes on this part 504-000-133 More Info >	A$909.50
36	Kit - Idler Repair i See notes section for usage notes on this part 403-000-167 More Info >	A$35.90
