NOTES:

Part #	Number on image	Usage Notes
401-020-801	14	Use part number 401-020-802 for gasket only, otherwise gasket is included in the roller bearing and hosing kit.

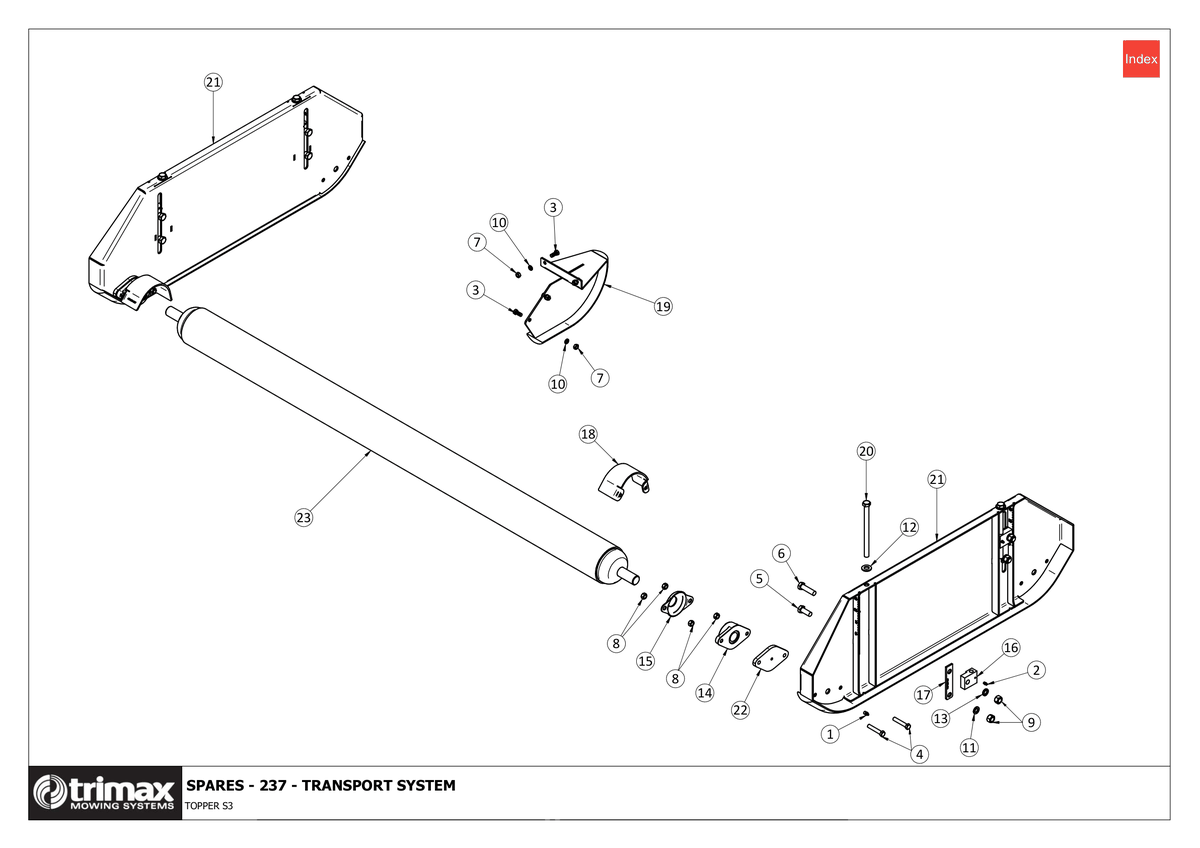

757 - Topper S3 237 - Transport System

Topper S3 237

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-550 More Info >	A$4.72
2	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
3	Bolt - Hex Head - M10 x 25 - Trimax Specification 301-210-253 More Info >	A$0.80
4	Bolt - Hex Head - M12 x 65 - Trimax Specification 301-212-653 More Info >	A$1.86
5	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	A$1.83
6	Bolt - Hex Head - M16 x 60 - Trimax Specification 301-216-603 More Info >	A$2.41
7	Nut - Plain M10 - Trimax Specification - 307-210-013 More Info >	A$0.54
8	Nut - Plain M12 - Trimax Specification - 307-212-013 More Info >	A$0.80
9	Nut - Plain 307-216-013 More Info >	A$0.97
10	Washer - Spring 308-100-043 More Info >	A$0.65
11	Washer - Spring 308-160-043 More Info >	A$0.97
12	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
13	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
14	Roller Bearing Kit with Gasket and Grub Screw - Trimax Specification i See notes section for usage notes on this part 401-020-801 More Info >	A$105.00
15	Protector Cap - Roller Bearing 410-464-073 More Info >	A$18.73
17	Tag - Height Adjuster Block 412-000-155 More Info >	Price on Request
18	Folding - Roller Stub Protector 412-000-257	A$103.22
19	Center Skid Weldment - Topper S3 237/282 412-000-612 More Info >	Price on Request
22	Plate - Roller Mount Topper S3 412-464-075 More Info >	Price on Request
23	Roller Weldment 237 TP1 414-320-044 More Info >	A$507.82
