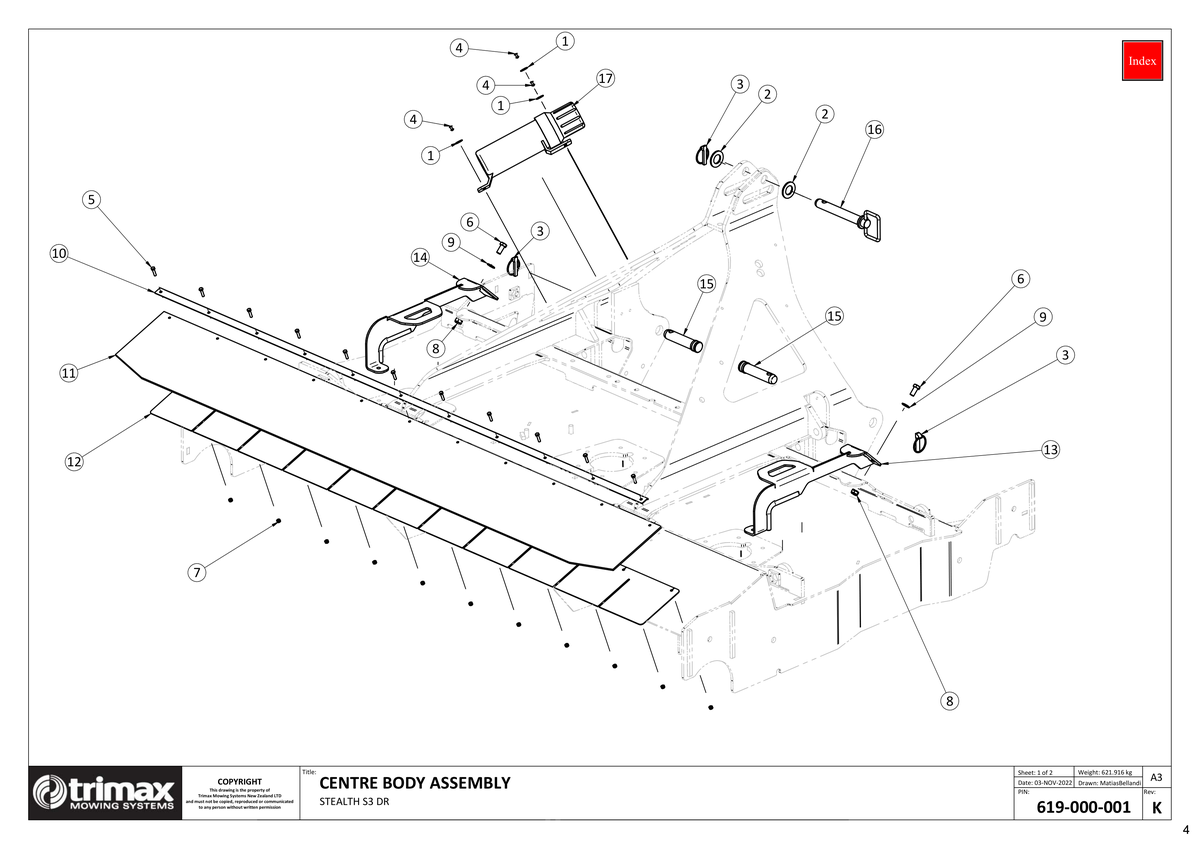

758 - Stealth S3 340 - Centre Body Assembly

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Washer - Fender 108-031-413 More Info >	A$0.29
2	Washer Flat - 1" x 1-15/16" - Hardened - Trimax Specification 108-163-113 More Info >	A$5.51
3	Linch Pin - Ø7/16" x 1-3/4" 203-300-700 More Info >	A$3.05
4	Blind Rivet 213-000-004 More Info >	A$1.12
5	Bolt - Hex Head - M6 x 25 - Trimax Specification 301-206-253 More Info >	A$0.29
6	Bolt - Hex Head - M12 x 25 - Trimax Specification 301-212-253 More Info >	A$4.17
7	Nut - Nyloc 307-206-053 More Info >	A$0.89
8	Nut - Nyloc M12 - Trimax Specification - 307-212-053 More Info >	A$1.07
9	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
10	Clamp Strip 410-000-103 More Info >	A$78.04
11	Flap 410-000-268 More Info >	A$182.08
12	Flap Stiffener 410-000-271 More Info >	A$134.66
13	Cover Support Weldment 417-001-181 More Info >	A$124.31
14	Cover Support Weldment - Centre Body LH 417-001-182 More Info >	A$102.76
15	Pin - Linkage - Lower Cat. 2 ��1-1/8" x 95mm 419-000-051 More Info >	A$46.23
16	Pin - Top Link - Includes Linch Pin 419-000-052 More Info >	A$24.25
17	Operators Manual Tube W/ Molded Bracket 450-000-073 More Info >	A$47.49
