NOTES:

Part # Number on image Usage Notes
301-220-753 1
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
401-000-013 3
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
402-000-093 4
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
417-001-164 5
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
308-200-064 6
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
307-220-053 7
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
417-001-158 8
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
301-220-703 9
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
401-000-018 10
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
307-216-053 11
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
417-001-163 12
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
301-216-503 13
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
301-216-553 14
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.
402-000-088 15
  • Use this listing only for mowers manufactured up to serial number 758-340-322-1060702. Mowers manufactured after above serial number use the Hinge System - Current listing.

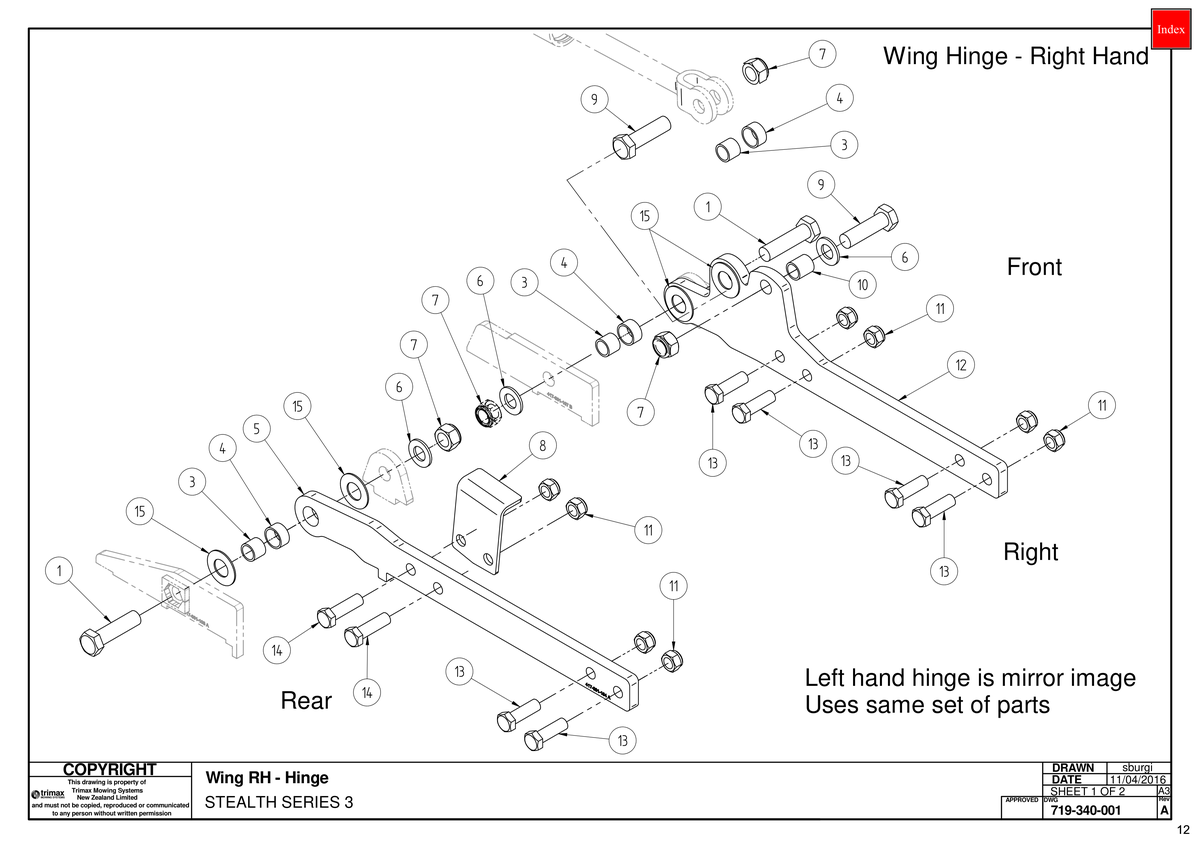

758 - Stealth S3 340 - Hinge System - Pre S/N 758-340-322-1060702

Stealth S3 340

Grouped product items
No. Image Product Name Price Quantity
1 Bolt - Hex Head - M20 x 75 - Trimax Specification [301-220-753] Bolt - Hex Head - M20 x 75 - Trimax Specification i See notes section for usage notes on this part 301-220-753
A$4.88
3 Inner Ring [401-000-013] Inner Ring i See notes section for usage notes on this part 401-000-013
A$12.84
4 Bush - Composite Pivot Bush [402-000-093] Bush - Composite Pivot Bush i See notes section for usage notes on this part 402-000-093
A$37.04
5 Plate [417-001-164] Plate i See notes section for usage notes on this part 417-001-164
A$141.92
6 Washer - Heavy Flat M20 - Trimax Specification - [308-200-064] Washer - Heavy Flat M20 - Trimax Specification - i See notes section for usage notes on this part 308-200-064
A$1.44
7 Nut - Hex Nyloc M20 - Trimax Specification - [307-220-053] Nut - Hex Nyloc M20 - Trimax Specification - i See notes section for usage notes on this part 307-220-053
A$2.25
8 Folding [417-001-158] Folding i See notes section for usage notes on this part 417-001-158
A$33.22
9 Bolt - Hex Head - M20 x 70 - Trimax Specification [301-220-703] Bolt - Hex Head - M20 x 70 - Trimax Specification i See notes section for usage notes on this part 301-220-703
A$10.24
10 Inner Ring - Lock Bush [401-000-018] Inner Ring - Lock Bush i See notes section for usage notes on this part 401-000-018
A$18.53
11 Nut - Nyloc M16 - Trimax Specification - [307-216-053] Nut - Nyloc M16 - Trimax Specification - i See notes section for usage notes on this part 307-216-053
A$1.44
12 Plate [417-001-163] Plate i See notes section for usage notes on this part 417-001-163
A$267.50
13 Bolt - Hex Head - M16 x 50 - Trimax Specification [301-216-503] Bolt - Hex Head - M16 x 50 - Trimax Specification i See notes section for usage notes on this part 301-216-503
A$8.03
14 Bolt - Hex Head - M16 x 55 - Trimax Specification [301-216-553] Bolt - Hex Head - M16 x 55 - Trimax Specification i See notes section for usage notes on this part 301-216-553
A$9.15
15 Washer - Nylon Thrust Washer - Trimax Specification [402-000-088] Washer - Nylon Thrust Washer - Trimax Specification i See notes section for usage notes on this part 402-000-088
A$10.74
