NOTES:

Part #	Number on image	Usage Notes
409-448-730	9	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3
409-448-740	10	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3
409-448-750	19	Use part number 409-000-070 for complete Hose Kit - Dual Stealth S3

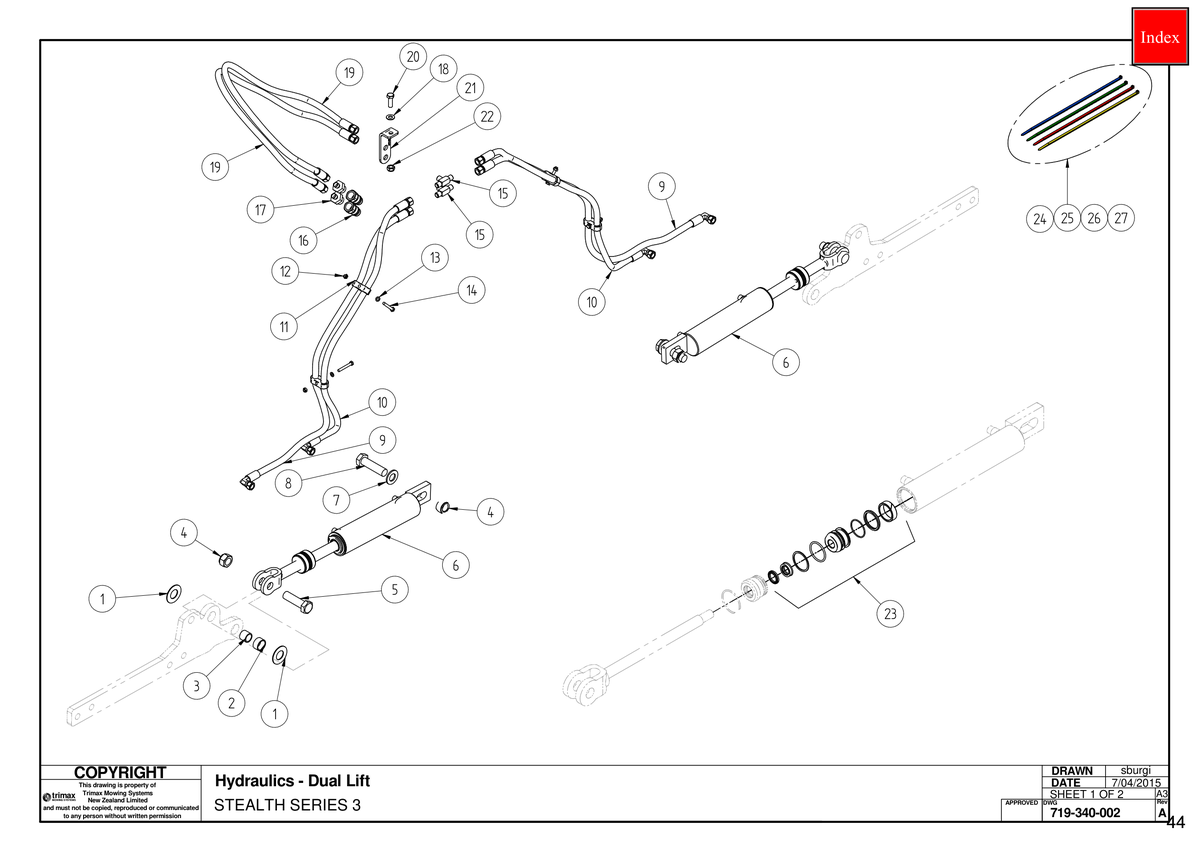

758 - Stealth S3 340 - Hydraulics - Dual Lift

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Washer - Nylon Thrust Washer - Trimax Specification 402-000-088 More Info >	A$10.74
2	Bush - Composite Pivot Bush 402-000-093 More Info >	A$37.04
3	Inner Ring 401-000-013 More Info >	A$12.84
4	Nut - Hex Nyloc M20 - Trimax Specification - 307-220-053 More Info >	A$2.25
5	Bolt - Hex Head - M20 x 70 - Trimax Specification 301-220-703 More Info >	A$10.24
6	Lift Ram 409-000-073 More Info >	A$836.10
7	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
8	Bolt - Hex Head - M20 x 75 - Trimax Specification 301-220-753 More Info >	A$4.88
9	Hose Assembly i See notes section for usage notes on this part 409-448-730 More Info >	A$92.80
10	Hose Assembly i See notes section for usage notes on this part 409-448-740 More Info >	A$92.80
11	Clamp - Hydraulic Hose - 13.5mm (1/4" NB) 408-000-055 More Info >	A$9.64
12	Nut - Nyloc 307-206-053 More Info >	A$0.89
13	Washer - Flat 308-060-013 More Info >	A$0.04
14	Bolt - Hex Head - M6 x 45 - Trimax Specification 301-206-453 More Info >	A$0.18
15	Tee 408-447-170 More Info >	A$24.43
16	Coupling 408-447-580 More Info >	A$50.73
17	Nipple 408-448-280 More Info >	A$23.83
18	Washer - Flat 308-100-013 More Info >	A$0.24
19	Hose Assembly i See notes section for usage notes on this part 409-448-750 More Info >	A$92.80
20	Bolt - Hex Head - M10 x 30 - Trimax Specification 301-210-303 More Info >	A$0.80
21	Folding 417-001-185 More Info >	A$36.55
22	Nut - Nyloc 307-210-053 More Info >	A$0.89
23	Seal Kit - Hydraulic Cylinder 408-000-060 More Info >	A$176.96
24	Cable Tie - Blue 210-900-015 More Info >	Price on Request
25	Cable Tie - Green 210-900-016 More Info >	Price on Request
26	Cable tie 210-900-017 More Info >	Price on Request
27	Cable tie 210-900-018 More Info >	Price on Request
