NOTES:

Part #	Number on image	Usage Notes
401-000-032	12	460-000-207 Roller Bearing Protection Kit is also available as an option for the mowers prior to serial number 719-340-002-0172, for ease of greasing roller bearings as there was no grease nipple access holes on the roller mounts.
412-000-724	17	412-000-724 Height Adj. Screw Assy individual parts: 412-000-611 Set Screw M16 x 150 ZP 8.8, 412-850-260 Collar Height Adjuster Current, 202-447-980 Roll Pin 4 x 22 SS
414-000-077	20	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
414-000-080	21	719-340-002-01720 onward has provisions for greasing the roller bearing through the side roller mount plate holes.
414-000-093	22	The old roller part number 414-000-066 has been replaced by 414-000-093 this new roller is backward compatible with older version.

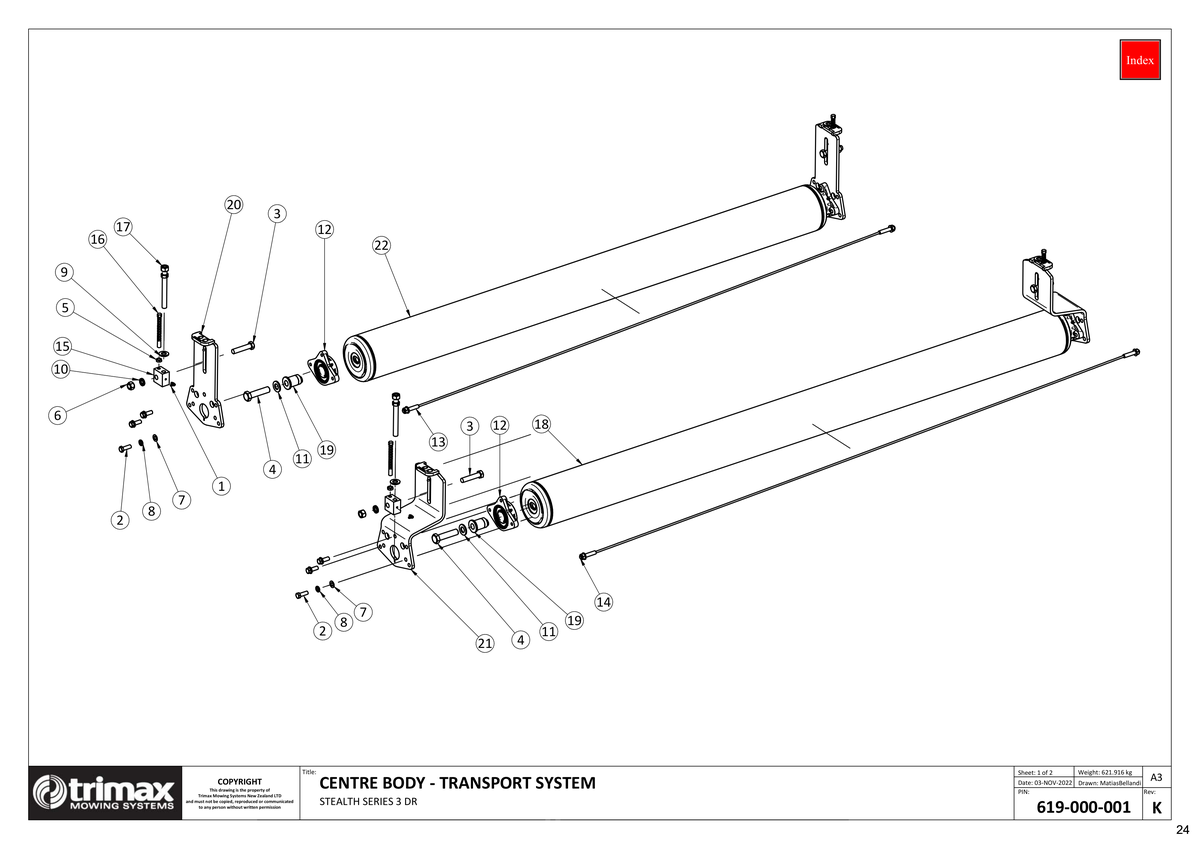

758 - Stealth S3 340 - Transport System - Centre Body

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
2	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
3	Bolt - Hex Head - M16 x 75 - Trimax Specification 301-216-753 More Info >	A$5.76
4	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	A$20.21
5	Nut - Half 307-212-023 More Info >	A$1.16
6	Nut - Plain 307-216-013 More Info >	A$0.97
7	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
8	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
9	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
10	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
11	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
12	Roller Bearing Assembly - TriBolt - Trimax Specification i See notes section for usage notes on this part 401-000-032 More Info >	A$105.00
13	Roller Scraper 404-000-122 More Info >	A$68.76
14	Roller Scraper 404-000-123 More Info >	A$68.76
15	Height Adjuster Block 412-000-255 More Info >	A$63.35
16	Height Indicator - Metric 412-000-256 More Info >	A$33.33
17	Height Adj. Screw Assy - Wing Inner w Collar/Pin 150mm ST3 i See notes section for usage notes on this part 412-000-724 More Info >	A$76.49
18	Roller Weldment - LocTek Centre Body Rear 414-000-072 More Info >	A$900.00
19	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	A$50.00
20	Roller Mount Assembly i See notes section for usage notes on this part 414-000-077 More Info >	A$203.88
21	Roller Mount - Centre Body - Rear i See notes section for usage notes on this part 414-000-080 More Info >	A$284.96
22	Roller Weldment - Loctek 210 i See notes section for usage notes on this part 414-000-093 More Info >	A$800.00
