NOTES:

Part #	Number on image	Usage Notes
401-000-035	19	New Titan bubble roller, roller bearings and side channel used on the wing transport system from serial number 619-340-300-1040680 onwards.
412-000-577	25	Weld on wear Skids also available: 412-000-275 Wear Skid RH Stealth S3. Galvanised alternative: 412-000-579 Side Channel Wing RH Titan. New Titan bubble roller and side channel used from serial number 619-340-300-1040680 onwards.
412-000-725	26	412-000-725 Height Adj. Screw Assy individual parts: 412-000-609 Set Screw M16 x 180 ZP 8.8, 412-850-260 Collar Height Adjuster Current, 202-447-980 Roll Pin 4 x 22 SS
414-000-162	31	New Titan bubble roller, roller bearings and side channel used on the wing transport system from serial number 619-340-300-1040680 onwards.

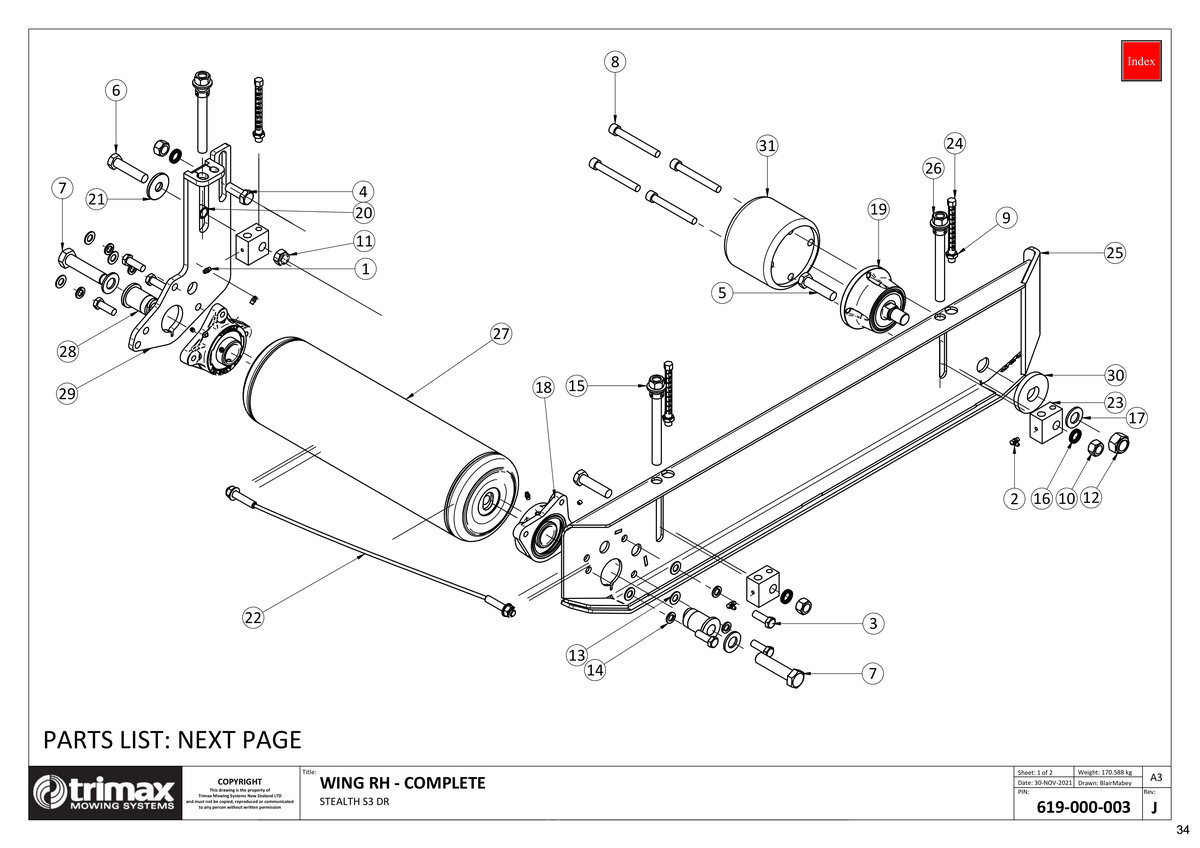

758 - Stealth S3 340 - Transport System - Titan - Wing RH

Stealth S3 340

Grouped product items
No.	Product Name	Price
1	Grease Nipple - Trimax Specification 208-442-600 More Info >	A$3.78
2	Grease Nipple - Trimax Specification 208-442-650 More Info >	A$6.43
3	Bolt - Hex Head - M12 x 35 - Trimax Specification 301-212-353 More Info >	A$3.86
4	Bolt - Hex Head - M16 x 40 - Trimax Specification 301-216-403 More Info >	A$1.83
5	Bolt - Hex Head - M16 x 65 - Trimax Specification 301-216-653 More Info >	A$7.08
6	Bolt - Hex Head - M16 x 70 - Trimax Specification 301-216-703 More Info >	A$4.25
7	Bolt - Hex Head M20 x 85 - Trimax Specification - 301-220-853 More Info >	A$20.21
8	Cap Screw 303-612-103 More Info >	A$5.70
9	Nut - Half 307-212-023 More Info >	A$1.16
10	Nut - Plain 307-216-013 More Info >	A$0.97
11	Nut - Nyloc M16 - Trimax Specification - 307-216-053 More Info >	A$1.44
12	Nut - Hex Nyloc - M22 x 1.5 307-122-053 More Info >	A$19.55
13	Washer - Flat M12 - Trimax Specification - 308-120-013 More Info >	A$0.65
14	Washer - Spring M12 - Trimax Specification - 308-120-043 More Info >	A$0.65
15	Washer - Heavy Flat 308-160-063 More Info >	A$2.14
16	Washer - Wedge Lock M16 - Trimax Specification - 308-160-083 More Info >	A$8.03
17	Washer - Heavy Flat M20 - Trimax Specification - 308-200-064 More Info >	A$1.44
18	Roller Bearing Assembly - TriBolt - Trimax Specification 401-000-032 More Info >	A$105.00
19	Roller Bearing Assembly - Titan i See notes section for usage notes on this part 401-000-035 More Info >	A$265.00
20	Spacer Tube 402-000-091 More Info >	A$9.23
21	Heavy Washer 402-840-560 More Info >	A$27.39
22	Roller Scraper 404-000-124 More Info >	A$68.76
23	Height Adjuster Block 412-000-255 More Info >	A$63.35
24	Height Indicator - Metric 412-000-256 More Info >	A$33.33
25	RH Side Channel Weldment - For Titan Bearing - Stealth S3 DR i See notes section for usage notes on this part 412-000-577 More Info >	A$850.72
26	Height Adj. Screw Assy - Wing Outer w Collar/Pin i See notes section for usage notes on this part 412-000-725 More Info >	A$94.66
27	Roller Weldment - Rear Wing 414-000-075 More Info >	A$450.00
28	Roller Stub Sleeve - LocTek - 414-000-076 More Info >	A$50.00
29	Roller Mount - Inner Wing RH 414-000-079 More Info >	A$233.47
30	Clamp Plate - Titan Bearing Pegasus S4 414-000-161 More Info >	A$25.81
31	Roller - Cylinder - UHMWPE i See notes section for usage notes on this part 414-000-162 More Info >	A$245.00
